What Is a Pan Tilt Unit? How to Choose the Right Pan and Tilt Positioner?

In modern surveillance, defense, and industrial automation, pan and tilt positioners have become essential for achieving precise, stable, and long-range monitoring. As systems evolve from simple cameras to multi-sensor payloads (EO/IR, radar, LiDAR), the demand for heavy duty pan tilt units continues to grow.

Whether you're sourcing from pan & tilt positioners suppliers or evaluating a pan tilt positioner for a high-performance project, understanding how these systems work—and how to choose the right one—can directly impact your system’s reliability and accuracy.

What Is a Pan Tilt Unit?

A pan tilt unit (PTU) is a motorized mechanical device that enables precise horizontal (pan) and vertical (tilt) movement of mounted equipment such as cameras, sensors, or antennas.

A pan and tilt positioner typically consists of:

• Dual-axis motion system (pan + tilt)

• High-torque motors

• Gear transmission (worm gear or direct drive)

• Encoder-based feedback system

• Control interface (RS485, Ethernet, etc.)

Key Data:

• Load capacity: 3 kg to 200+ kg

• Positioning accuracy: up to ±0.01°

• Rotation range: 360° continuous pan / ±90° tilt

Unlike standard PTZ cameras, pan and tilt positioners are designed for external payloads, making them ideal for heavy duty applications.

What Does Pan Tilt Mean?

Pan tilt refers to the two-axis movement system where “pan” is horizontal rotation and “tilt” is vertical angular movement.

• Pan (Azimuth): rotates left and right (0°–360°)

• Tilt (Elevation): moves up and down (typically -90° to +90°)

This dual-axis movement enables:

• Full-area coverage

• Target tracking

• Multi-angle inspection

In engineering systems, pan/tilt corresponds to:

• Azimuth control (horizontal)

• Elevation control (vertical)

This is critical in defense, radar tracking, and long-range surveillance systems.

How Pan and Tilt Positioners Work?

Pan and tilt positioners operate through coordinated motor-driven axes combined with precision feedback systems to achieve accurate positioning and motion control.

Core Components:

1. Drive Mechanism

• Worm gear (self-locking, heavy duty)

• Direct drive (high precision)

2. Motor System

• Servo motors (high accuracy)

• Stepper motors (cost-effective)

3. Control System

• RS485 / Pelco-D / TCP-IP

• Remote automation capability

4. Feedback System

• Absolute encoders

• Closed-loop control

Types of Pan and Tilt Positioners

Pan and tilt positioners are classified based on load capacity, application, and structural design.

Classification:

Heavy duty pan tilt systems are engineered for:

• Long-range optics

• Multi-sensor payloads

• Harsh environments

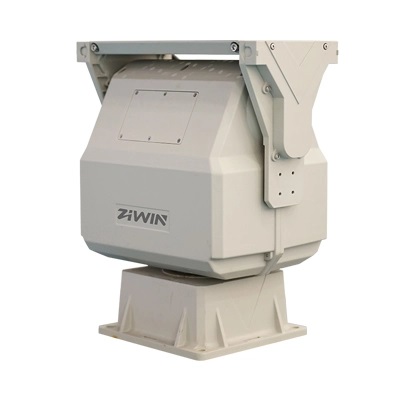

Key Features of Heavy Duty Pan Tilt Units

A heavy duty pan tilt unit is designed for high-load, high-precision, and extreme environment applications.

Core Features:

• High Load Capacity: up to 200kg+

• Ultra Precision: ±0.01° positioning

• Environmental Protection: IP66/IP67

• Wide Temperature Range: -40°C to +70°C

• Continuous Rotation: 360° pan (optional slip ring)

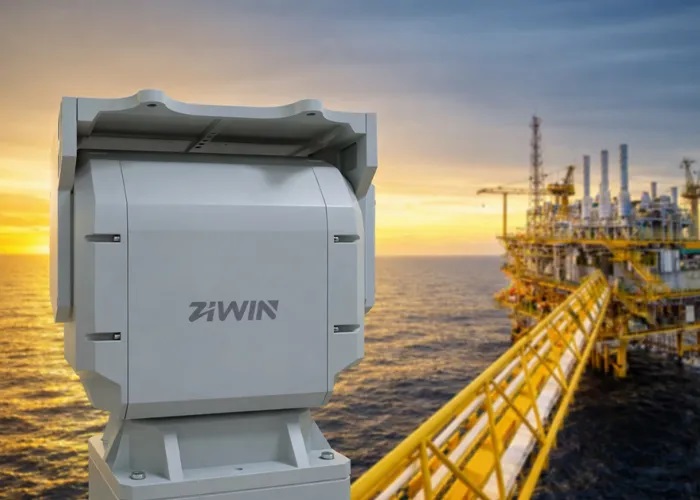

Latest Applications of Pan Tilt Positioners

Modern pan and tilt positioners are widely used in advanced surveillance, defense, and AI-driven systems requiring precise motion control.

Key Applications:

• Drone Detection & Counter-UAV Systems

• Border & Coastal Surveillance

• EO/IR Thermal Imaging Systems

• Smart Cities & AI Security

• Autonomous Monitoring Platforms

Pan Tilt Unit vs PTZ Camera

A pan tilt unit differs from a PTZ camera in that it supports external payloads, higher loads, and significantly greater precision.

If your application involves long-range, heavy sensors, or harsh environments, a heavy duty pan tilt system is the only viable choice.

Learn more: Pan Tilt Unit vs PTZ Camera

How to Choose the Right Pan and Tilt Positioner

Choosing the right pan and tilt positioner depends on payload, precision, environment, and control requirements.

Key Selection Factors:

1. Payload Weight & Size

2. Required Precision

3. Speed of Movement

4. Environmental Conditions

5. Control Protocols

Pro Tip:
Always consider future expansion (multi-sensor integration) when selecting a system.

Customization Options for Industrial Applications

Industrial pan and tilt positioners can be customized to meet specific operational and environmental requirements.

Customization includes:

• Load capacity adjustment

• Rotation limits

• Communication protocols

• Anti-corrosion coatings

• Integrated slip rings

Why Choose ZIWIN as Your Pan & Tilt Positioners Supplier

ZIWIN is one of the professional and trusted pan & tilt positioners suppliers, specializing in high-performance and heavy duty solutions for global security and industrial applications.

Advantages:

• Extensive experience in heavy duty pan tilt unit manufacturing

• High precision engineering (±0.01°)

• Customizable solutions

• Proven reliability in harsh environments

Why Heavy Duty Pan Tilt Units Are Critical for Long-Range Surveillance

Heavy duty pan tilt units are essential for maintaining stability, precision, and reliability in long-range surveillance systems.

They ensure:

• Stable imaging under wind/load

• Accurate target tracking

• Long-term operational durability

FAQs

1. What is a pan tilt positioner used for?

It is used to control cameras or sensors in surveillance, defense, and industrial systems.

2. What is the difference between PTU and PTZ?

PTU supports external payloads and higher precision, while PTZ is an all-in-one camera system.

3. What is a heavy duty pan tilt unit?

A system designed to handle heavy payloads (30kg–200kg+) with high precision and durability.

4. How accurate are pan and tilt positioners?

High-end systems can reach ±0.01° accuracy.

5. Can pan tilt units work in extreme environments?

Yes, industrial models support -40°C to +70°C and IP66 protection.

6. How to choose reliable pan & tilt positioners suppliers?

Look for:

• Engineering experience

• Customization capability

• Proven industry applications

Conclusion

Pan and tilt positioners are no longer just mechanical accessories—they are core components in modern intelligent surveillance systems. From drone detection to AI-powered monitoring, the demand for heavy duty pan tilt units will continue to rise.

If you're looking for a reliable pan & tilt positioners supplier, choosing a trusted brand like ZIWIN ensures:

• High precision

• Long-term durability

• Tailored solutions for your project

Looking for the right pan tilt positioner for your application? contact ZIWIN for:

• Custom solutions

• Technical consultation

• Competitive pricing

Act now—upgrade your surveillance system with a professional heavy duty pan tilt solution.
