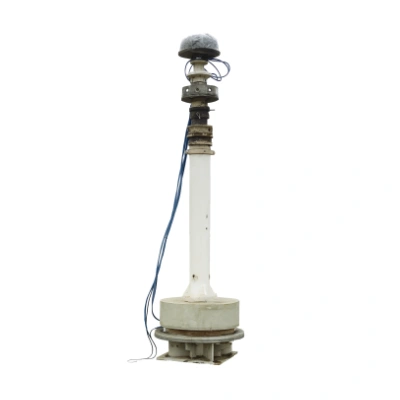

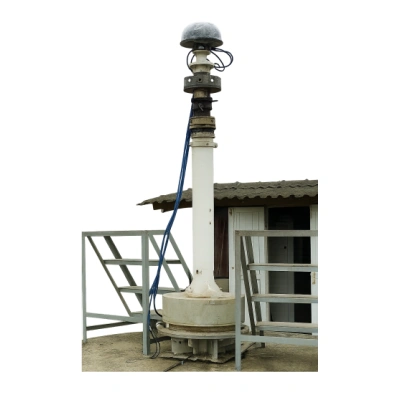

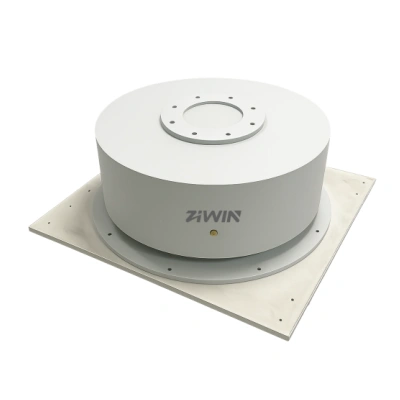

ZN-SAP300Y 300kg(661.62lb) Load Pan Rotator & Positioner

ZN-SAP300Y

Features of ZN-SAP300Y Outdoor 300kg(661.62lb) Load Pan Rotator & Positioner


★ Small pan unit, indoor/outdoor use

★ High-precision Worm Gear Transmission

★ Load capacity 300kg(661.62lb)

★ High-strength aluminum alloy construction

★ Pan Speed: 0.01°~5°/S(Up to 10°/S; the higher the rotation speed, the lower the payload capacity)

★ 360° continuous

★ Preset accuracy:±0.1°

★ Support position feedback

★ RS485/RS422 pan control with Pelco P/D protocol

★ Protection grade IP66

Contact Us
Specification Dimension FAQs

Specification


ModelZN-SAP300Y
Max. Load Capacity300kg(661.62lb)
Load TypeTop load
Transmission ModeWorm Gear Transmission
Pan RangePan: 0°~360°
Pan  Speed0.01°~5°/S
Presets200
Preset Accuracy±0.1°
Repeated Accuracy±0.1°
Auto CruiseSupport, 2
Auto ScanSupport, 1
Position PassbackQuery Response or Real-time Response Transmission
Auto RepositioningIt can be set to automatically return to position within a range of 1 to 60 minutes.
Auxiliary SwitchOptional
Salt-SprayOptional
ProtocolPelco D (optional Pelco P/ModBus-RTU)
Baud Rate9600bps (optional 2400/4800/115200 bps)
Communication InterfaceRS485 (optional RS422/RS232/Network Interface/Wireless Remote)
Power SupplyDC24V (optional AC220V)
Working Temperature-25°C~+55°C
Working Humidity90% RH, non-condensing
Storage Temperature-40°C~+65°C
Protection LevelIP66
Size900mm×900×340mm(L×W×H)
Installation MethodFixed installation


View More View Less

Dimension

Dimension of ZN-SAP300Y Outdoor 300KG Load Pan Rotator & Positioner




FAQs

FAQs Highlighting Customization Service for ZN-SAP300Y


Q: Can the ZN-SAP300Y be structurally reinforced to handle different equipment weights?

A: The ZN-SAP300Y’s maximum rated load is 300 kg (top load). We can customize the mounting interface, plate pattern, spacers, anti-vibration measures, and reliability tuning to suit different payloads at or below 300 kg—including adaptations for center-of-gravity offset, shock, and wind-induced dynamic loads—but we do not increase the nominal load rating beyond 300 kg.



Q: Can the mounting interface be customized to fit different radars or cameras?

A: Yes. We offer multiple customization options for the top cover and base, including flange sizes, bolt-hole patterns, and mounting styles to perfectly match the customer’s equipment.



Q: Is the control protocol limited to Pelco P/D, or can it support other communication methods?

A: In addition to RS485/RS422 with Pelco P/D protocol, we can customize interfaces such as CAN bus, Ethernet, or other specified protocols based on customer requirements.



Q: Can the unit be customized for extreme environments such as coastal or desert areas?

A: Yes. The ZN-SAP300Y has IP66 protection rating as standard. For harsher conditions, we can add anti-salt fog coating, heating modules, or dehumidifying units to improve outdoor reliability.



Q: Is it possible to customize rotation speed or accuracy for different applications?

A: Yes. The standard speed range is 0.02°\~10°/s with ±0.2° preset accuracy. Customers can request higher-precision encoders, special motors, or servo drive solutions to achieve finer or faster control.
