ZIWIN heavy duty motorized pan tilt heads are designed for 50kg to 200kg payloads in long-range surveillance, EO/IR imaging, radar tracking, antenna positioning, coastal defense, border control and anti-drone systems. Built with precision worm gear drive, 360° continuous pan rotation, variable speed control, IP66 outdoor protection and RS485/Pelco-D integration, these heavy duty pan tilt systems provide stable movement, accurate positioning and reliable operation under harsh outdoor conditions.

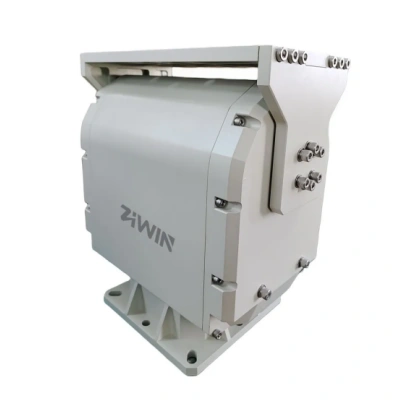

.webp "Heavy Duty Pan Tilt Head with Load Capacity 80kg (176.37lb)")
Engineered to military-grade standards, this robust pan tilt unit integrates heavy-load capacity, high-speed operation, extreme precision, and exceptional reliability to meet the most demanding surveillance requirements.
Engineered for the most demanding environments, our heavy-duty pan tilt units support massive payloads ranging from 50kg up to 200kg. Whether you are mounting long-range optical cameras, thermal imaging sensors, radar systems, or heavy antennas, these positioners provide rock-solid stability without compromising speed or accuracy.
Unlike standard belt-driven units, ZIWIN positioners utilize a robust worm gear design. This ensures self-locking capabilities, zero backlash, and ultra-smooth tracking. Even under severe wind loads or strong vibrations, the camera maintains a steady image and exact positioning.
Built to survive in extreme industrial, maritime, and border security applications. The heavy-duty metal housing is fully IP66 weather-resistant, effectively blocking out dust, heavy rain, and extreme temperatures, minimizing maintenance costs and maximizing operational uptime.
We offer flexible mounting options, including top-load and side-load configurations to suit your specific project requirements. Fully compatible with standard protocols (such as Pelco-D/P), our pan tilt heads can be seamlessly integrated into your existing CCTV network or command center.
Our heavy-duty pan tilt units are engineered to carry advanced payloads for mission-critical sectors where standard security cameras fail.
Equip our robust PTZ units with heavy long-range thermal imaging and optical dual-sensor cameras. The high-precision positioning ensures accurate early fire detection across vast forested mountainous regions, operating flawlessly in high-temperature and smoke-filled environments.
Designed to withstand harsh marine conditions, our positioners can be customized with advanced anti-corrosion coatings. The self-locking worm gear mechanism prevents the payload from shifting during heavy sea swells, making it ideal for vessel tracking, offshore platforms, and port security.
Border surveillance camera requires massive, long-range lenses (often exceeding 50kg) to monitor targets miles away. Our heavy-duty motorized pan tilt heads provide the ultra-stable, zero-backlash foundation needed for 24/7 perimeter defense, radar integration, and extreme weather resilience.
With 18 years of expertise in pan-tilt unit design and manufacturing, we don't just sell standard products—we build tailored positioning systems to match your exact project specifications.
Mounting Configurations: Choose between top-load or side-load structures, with customizable dimensions to perfectly balance your specific camera housing, radar, or antenna.
Drive & Motor Selection: Custom worm gear ratios and the choice between precision stepper motors or high-speed heavy duty pan tilt servo motors to meet your torque and tracking speed requirements.
Cable Management: Advanced internal cable routing to prevent tangling and external wear, ensuring a clean, snag-free rotation.
Custom Slip Rings: We design specialized slip ring configurations to support your exact power, video, and control data transmission needs.
Protocol & Power Flexibility: Seamless integration with RS485, RS422, or RJ45 network interfaces, alongside flexible AC or DC power supply options.
Specialized Coatings: Options for heavy-duty painting, anti-corrosion treatments (for marine use), or specific color-matching.
Climate Control: Integration of built-in heaters, defrosters, and wipers for extreme cold or rainy environments.
Rigorous Testing & Certifications: We offer specialized factory testing (vibration, salt spray, extreme temperature chambers) and can design units to meet specific explosion-proof or industrial standards.
For optimal heavy-duty pan-tilt unit selection, please email your detailed technical requirements to sales@ziwincctv.com for expert consultation.
Choosing the right heavy duty pan tilt unit starts with payload capacity, but buyers should not select a model by weight alone. For long-range CCTV cameras, EO/IR payloads, radar systems, antennas and anti-drone platforms, the actual center of gravity, wind load, mounting method, required pan/tilt speed, positioning accuracy and outdoor environment should also be considered.
ZIWIN provides heavy duty motorized pan tilt heads from 50kg to 200kg payload capacity for different surveillance, tracking and positioning projects. The table below can help you quickly compare which heavy duty pan tilt model is more suitable for your application.
| Heavy Duty Pan Tilt Model | Payload Capacity | Recommended Applications | Key Features | Best Inquiry Scenario |
|---|---|---|---|---|
| 50kg Heavy Duty Pan Tilt Head | 50kg / 110.23lb | Long-range CCTV camera, thermal camera, laser camera | 360° pan rotation, variable speed control, stable outdoor movement, preset positioning | Suitable for standard heavy camera payloads where stable rotation and reliable positioning are required. |
| 80kg Heavy Duty Pan Tilt Unit | 80kg / 176.37lb | EO/IR payload, multi-sensor camera, radar-assisted monitoring | Worm gear drive, IP66 outdoor protection, high torque, 200 preset positions | Recommended for outdoor precision monitoring projects that require stronger load capacity and smooth movement. |

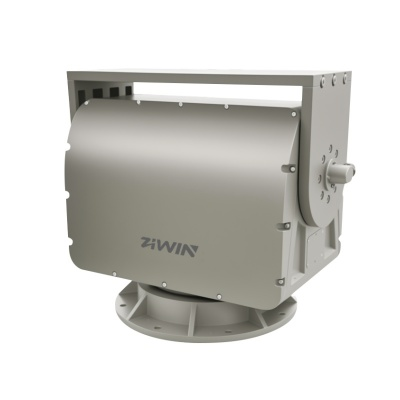

| 100kg Heavy Duty Motorized Pan Tilt Head | 100kg / 220.46lb | Large thermal camera, radar, antenna platform, long-range monitoring system | Continuous pan rotation, wide tilt range, variable speed, stable movement for large payloads | Suitable when the payload is larger than a standard camera system or requires stronger structural stability. |

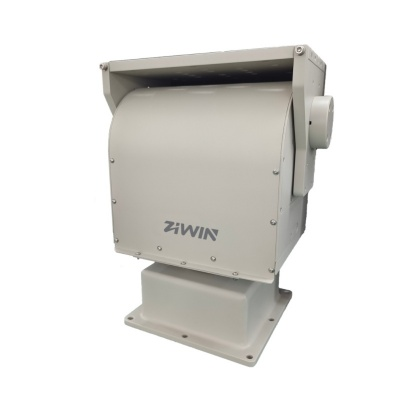

| 120kg Heavy Duty Pan Tilt Unit | 120kg / 264.55lb | Border control, coastal surveillance, industrial monitoring, defense-related observation | Low-speed tracking, accurate positioning, outdoor reliability, strong mechanical structure | Recommended for harsh environments where slow-speed tracking, wind resistance and long-term reliability are important. |

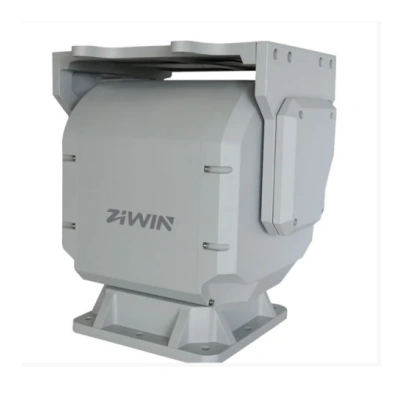

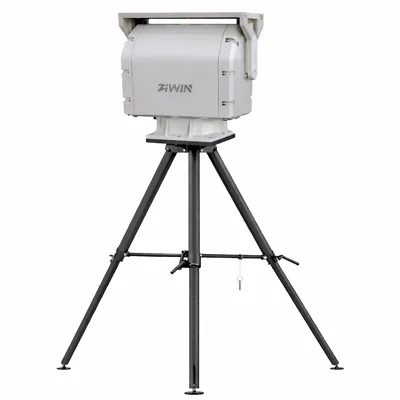

| 200kg Heavy Duty Pan Tilt Head | 200kg / 440.92lb | Radar, antenna, acoustic device, large EO/IR payload, customized security platform | High payload capacity, 360° pan, customized structure, strong torque and project-specific integration | Best for special OEM projects, radar positioning, antenna platforms and large integrated surveillance payloads. |
A heavy duty pan tilt head should not be selected only according to the static weight of the payload. A long lens, radar panel, antenna or multi-sensor housing may create a higher torque requirement because of its size and center of gravity. For outdoor projects, wind load, mounting height and bracket stability can also affect pan tilt performance.
Payload weight: camera, lens, radar, antenna or sensor total weight.
Payload dimensions: length, width, height and mounting structure.
Center of gravity: important for large or front-heavy payloads.
Installation environment: indoor, outdoor, coastal, desert, cold region or high-wind area.
Required movement: pan range, tilt range, pan speed and tilt speed.
Positioning accuracy: required preset accuracy or tracking precision.
Control protocol: RS485, RS422, Pelco-D/P, RJ45 or custom interface.
Power supply: AC, DC or customized project power input.
Send us your payload weight, payload size, center of gravity, required pan/tilt speed, mounting method, outdoor environment, control protocol and power supply. ZIWIN engineers will recommend a suitable heavy duty pan tilt unit or provide a customized heavy duty motorized pan tilt head solution for your project.
What is a heavy duty pan tilt unit?
A heavy duty pan tilt unit is a motorized two-axis positioning device designed to carry large payloads such as long-range CCTV cameras, EO/IR sensors, radar, antennas, laser cameras or acoustic devices. It provides horizontal pan and vertical tilt movement for outdoor surveillance, tracking and positioning applications.
What payload capacity is available for ZIWIN heavy duty pan tilt units?
ZIWIN heavy duty pan tilt units cover payload capacities from 50kg to 200kg. Standard options include 50kg, 80kg, 100kg, 120kg and 200kg models, with custom structures available for special radar, antenna, EO/IR and anti-drone integration projects.
What is a heavy duty motorized pan tilt head used for?
A heavy duty motorized pan tilt head is used to remotely rotate and tilt heavy cameras, sensors or equipment. It is commonly used in long-range CCTV surveillance, border control, maritime monitoring, airport perimeter security, radar tracking, antenna positioning and counter-drone systems.
Can heavy duty pan tilt units be customized?
Yes. Heavy duty pan tilt units can be customized for payload capacity, speed, tilt angle, mounting structure, slip ring, cable routing, connector type, control protocol, power supply, anti-corrosion coating, heating, defrosting and other environmental requirements.
What is the difference between a heavy duty pan tilt unit and a standard PTZ camera?
A standard PTZ camera integrates camera, lens and pan-tilt movement in one device, while a heavy duty pan tilt unit is a motorized positioning platform for carrying larger payloads such as EO/IR sensors, radar, antennas or long-range camera systems.
