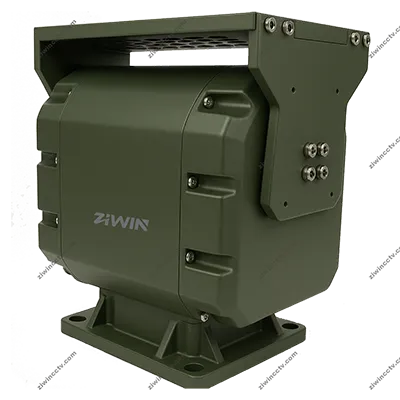

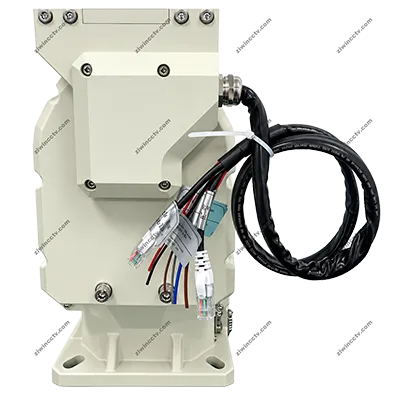

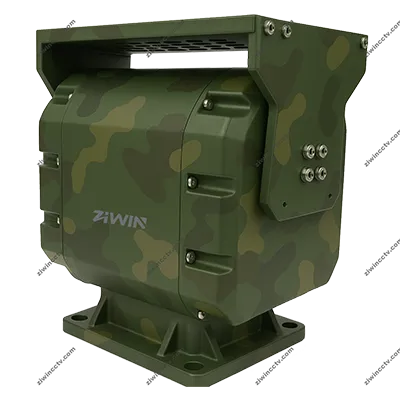

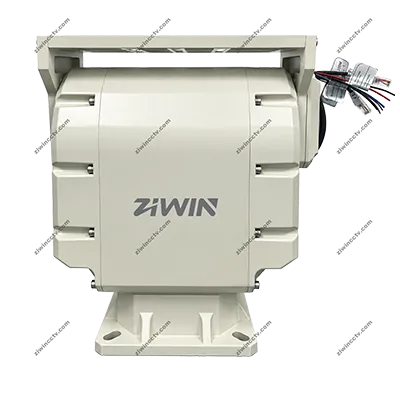

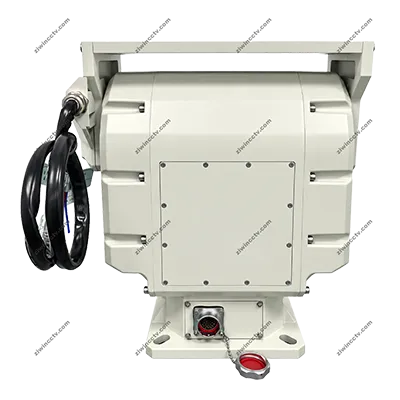

Features of 50kg(110.37lb) Payload Pan Tilt Unit-Compact Outdoor/Indoor Pan-Tilt Solution
Heavy pan tilt unit, indoor/outdoor use
High-precision Worm Gear Transmission
Support Power-off Self-locking
Max.Load Capacity 50kg(110.37lb)
High-Strength Aluminum Alloy Construction
Pan Speed: 0.01°~8°/S (Up to 30°/S; the higher the rotation speed, the lower the payload capacity )
Tilt Speed: 0.01°~4°/S (Up to 15°/S; the higher the rotation speed, the lower the payload capacity)
360° continuous(Customizable rotation range from 0° to 340°)
Tilt Range: -45°~45°(Optional limited rotation, with a maximum angle range from -90° to +90°)
Preset Position: 200
Preset accuracy:±0.1°
Support Position Feedback and Absolute Position
RS485/RS422 Pan Control with Pelco P/D Protocol
Protection Grade: IP66 Waterproof
| Model | ZN-SPM50Y |
| Max. Load Capacity | 50kg(110.37lb) |
| Load Type | Top load, Side load |
| Transmission Mode | Worm Gear Transmission |
| Pan Speed | 0.01°~8°/S |
| Tilt Speed | 0.01°~4°/S |
| Pan Range | 360° continuous |
| Tilt Rang | -45° ~45° |
| Presets | 200 |
| Preset Accuracy | ±0.1° (optional ±0.01°) |
| Auto Cruising | Support, 2 (each with 40 presets) |
| Auto Scan | Support, 1 |
| Lens Preset Position | Optional |
| Lens Control Speed | Optional |
| Auto Homing | It can be set up within the period of 1~60 mins |
| Power on Self-test | Support |
| Position Passback | Query Response or Real-time Response Transmission |
| Auxiliary Switch | Optional(1~2 Groups) |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Self-locking | Support |
| Interface | |
| Communication Interface | RS422 (optional RS485/RS232/Network Interface) |

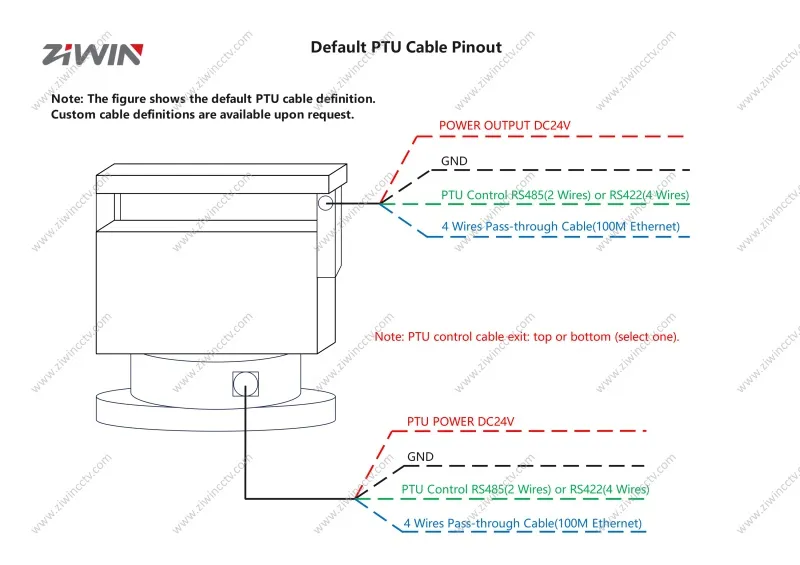

| Top Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power output cable (2A) |
| Bottom Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power input cable (system power supply)，One RS422 cable (pan-tilt communication). |
| General | |
| Power Supply | DC24V (optional DC48V/AC220V) |
| Power Consumption | ≤150W |
| Static Power Consumption | ≤5W |
| Grade Protection | IP66 |
| Working Temperature | -25℃~+65℃ |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40℃~+65℃ |

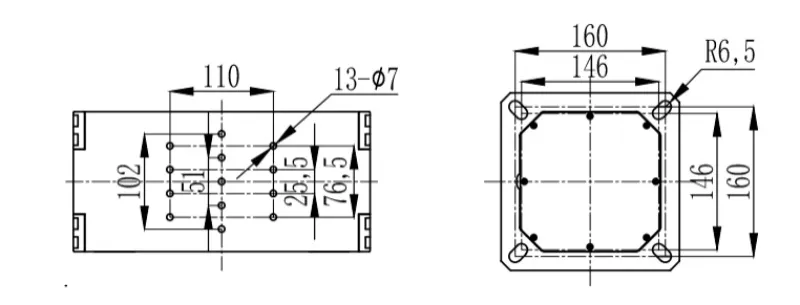

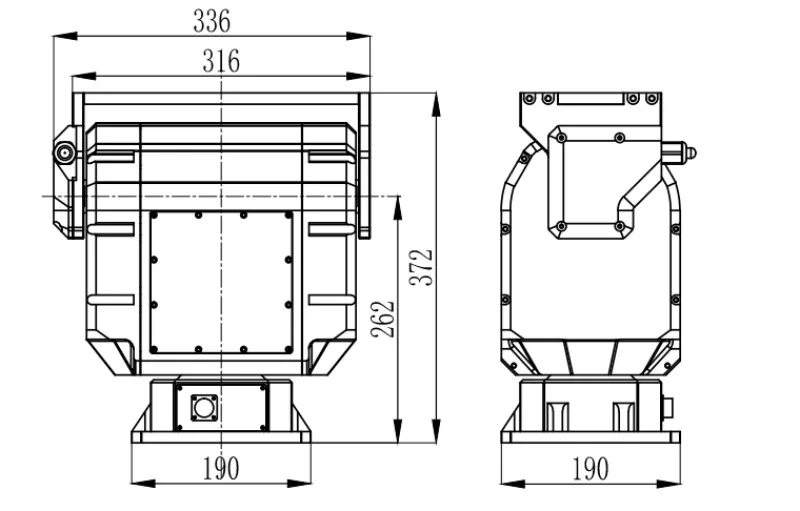

| Size | 336×190×372mm（L×W×H） |
| Weight | 22kg(48.8lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
What interfaces can be customized for the payload?
The pan-tilt unit supports a variety of customizable pass-through interfaces for top-mounted payloads, including high-frequency RF N-type connectors, Gigabit Ethernet, fiber-optic communication, RS422/RS485/RS232, and high-power supply connections rated for currents from over 10 A to several tens of amperes.
What is the maximum supported tilt range?
The maximum tilt range is ±90°. However, payload capacity decreases as the tilt range increases.
How does the installation method affect payload capacity?
Fixed installation does not affect the unit’s payload capacity. For vehicle-mounted or shipboard installations, payload capacity is reduced by half. In certain applications, a holding brake is also required to improve reliability.
What communication interfaces are available for motion control?
RS422, RS485, or Ethernet can be selected for motion control.
What is the difference between open-loop and closed-loop control systems?
An open-loop pan-tilt unit has no internal encoder, so the system cannot detect missed motor steps during movement. A closed-loop unit has a built-in encoder that monitors motor operation in real time, providing greater stability.
