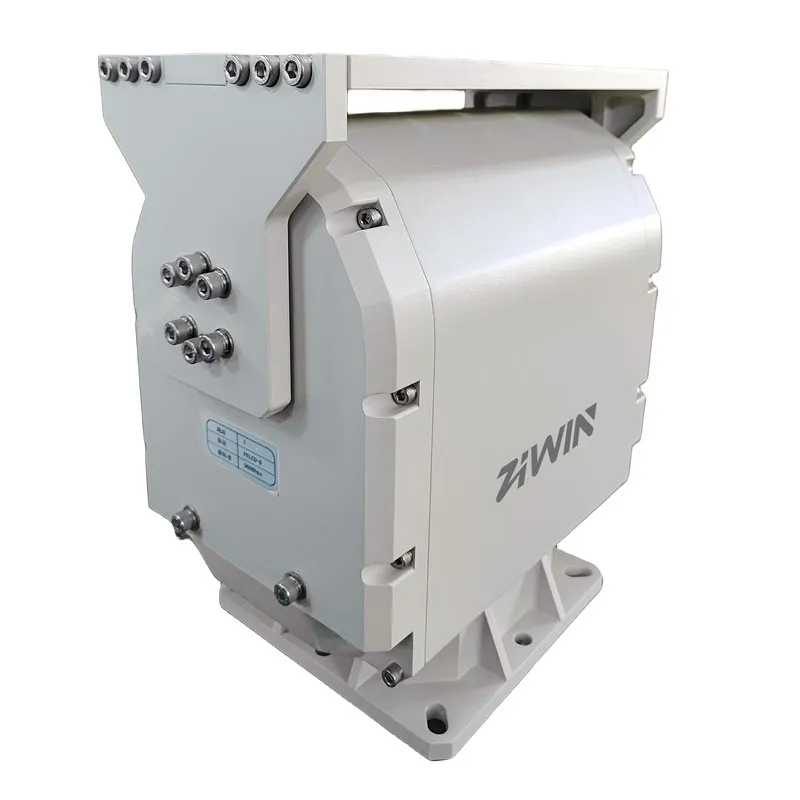

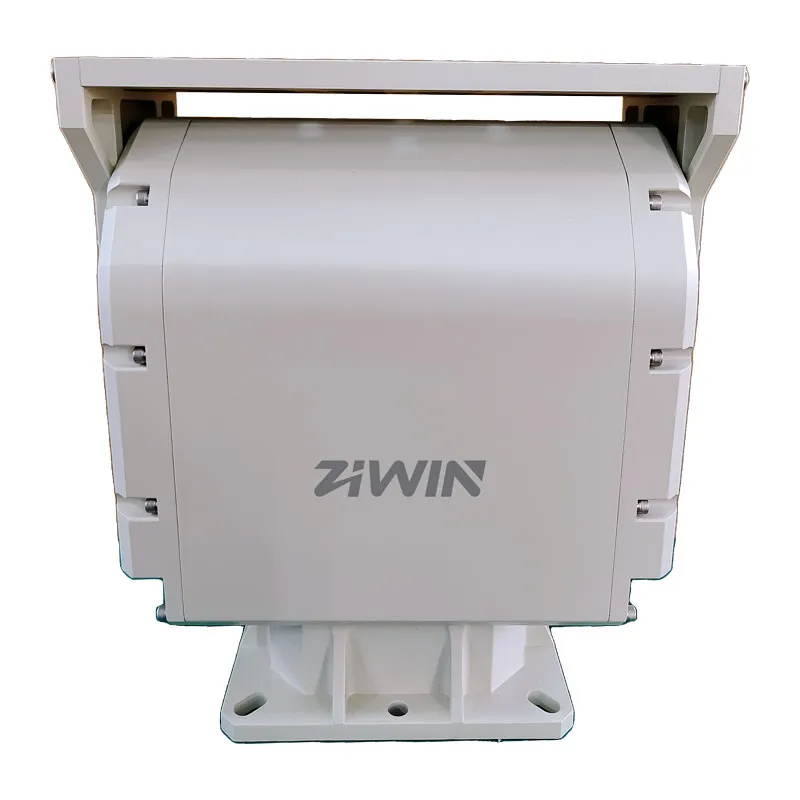

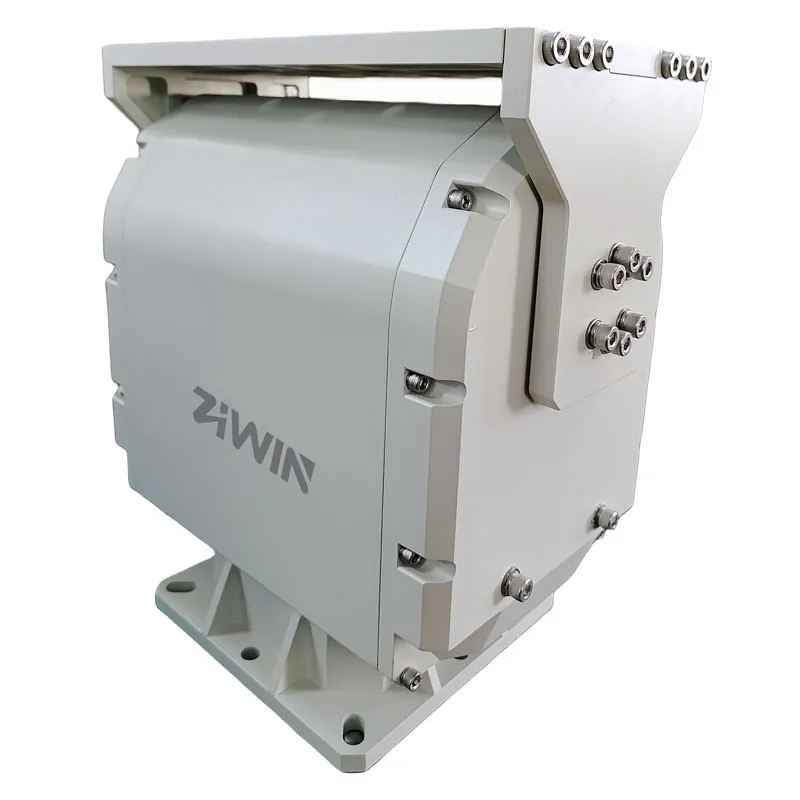

Features of ZN-SPH80Y Heavy Duty Pan Tilt Head 80kg
Heavy duty motorized pan tilt head, indoor/outdoor use
High-precision Worm Gear Transmission
Support Power-off Self-locking
Max.Load Capacity 80kg(176.59lb)
High-Strength Aluminum Alloy Construction
Pan Speed: 0.01°~8°/S (Up to 20°/S; the higher the rotation speed, the lower the payload capacity )
Tilt Speed: 0.01°~4°/S (Up to 10°/S; the higher the rotation speed, the lower the payload capacity)
360° continuous(Customizable rotation range from 0° to 340°)
Tilt Range: -45°~45°(Optional limited rotation, with a maximum angle range from -90° to +90°)
Preset Position: 200
Preset accuracy:±0.1°
Support Position Feedback and Absolute Position
RS485/RS422 Pan Control with Pelco P/D Protocol
Protection Grade: IP66 Waterproof
| Model | ZN-SPH80Y |
| Max. Load Capacity | 80kg(176.59lb) |
| Load Type | Top load, Side load |
| Transmission Mode | Worm Gear Transmission |
| Pan Speed | 0.01°~8°/S |
| Tilt Speed | 0.01°~4°/S |
| Pan Range | 360° continuous |
| Tilt Rang | -45° ~45° |
| Presets | 200 |
| Preset Accuracy | ±0.1° (optional ±0.01°) |
| Auto Cruising | Support, 2 (each with 40 presets) |
| Auto Scan | Support, 1 |
| Lens Preset Position | Optional |
| Lens Control Speed | Optional |
| Auto Homing | It can be set up within the period of 1~60 mins |
| Power on Self-test | Support |
| Position Passback | Query Response or Real-time Response Transmission |
| Auxiliary Switch | Optional(1~2 Groups) |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Self-locking | Support |
| Interface | |
| Communication Interface | RS422 (optional RS485/RS232/Network Interface) |
| Top Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power output cable (2A) |
| Bottom Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power input cable (system power supply)，One RS422 cable (pan-tilt communication). |
| General | |
| Power Supply | DC48V (optional AC220V) |
| Power Consumption | ≤200W |
| Static Power Consumption | ≤5W |
| Grade Protection | IP66 |
| Working Temperature | -25℃~+65℃ |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40℃~+65℃ |

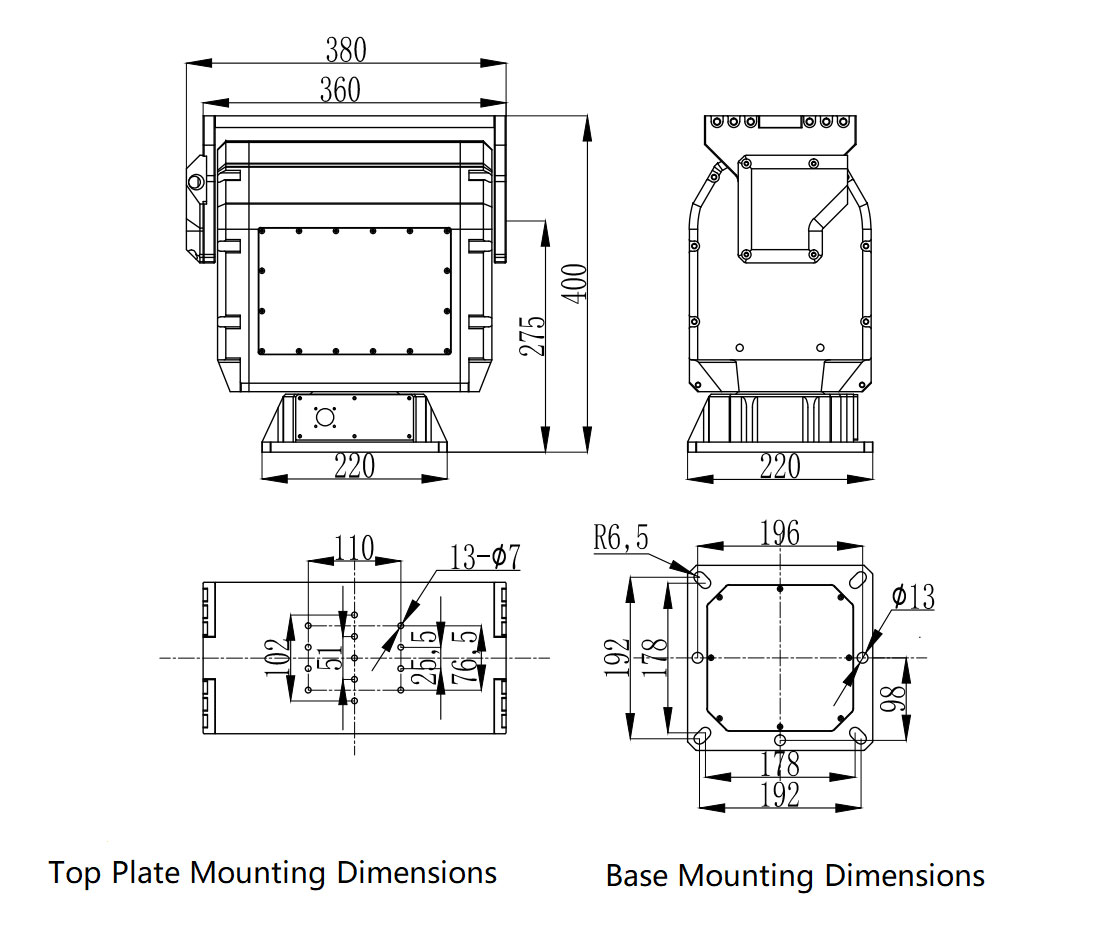

| Size | 380×220×400mm（L×W×H） |
| Weight | 32kg(70.88lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: What types of payloads can the ZN-SPH80Y support?
A: The ZN-SPH80Y is designed for heavy and high-precision payloads such as 4K 80–120× optical zoom camera cores, large-aperture thermal imagers, laser rangefinders, multispectral sensors, and radar modules for ultra-long-range target detection and tracking.
Q: Where is the ZN-SPH80Y typically used?
A: It is widely applied in coastal and border defense, military reconnaissance, maritime surveillance, airport control towers, shipborne observation, and energy pipeline inspection projects that require ultra-stable control and large payload capacity.
Q: How does it achieve stable control for heavy payloads?
A: Using a precision worm-gear drive with closed-loop feedback (optional encoder system), the ZN-SPH80Y maintains ±0.01° positioning accuracy and smooth rotation even when handling 80 kg payloads at low speed (0.01°/s).
Q: Is it suitable for harsh outdoor environments?
A: Yes. Its IP66 waterproof and dustproof aluminum-alloy construction ensures reliable operation under coastal humidity, salt-spray, and -30 °C to +65 °C temperature conditions.
Q: Can the ZN-SPH80Y integrate with radar or AI tracking systems?
A: Yes. It supports RS422/RS485/RS232 interfaces and ModBus-RTU / Pelco P/D protocols, making it compatible with radar tracking, AI image recognition, and intelligent command systems for defense applications.
