Counter-Drone System

Background

With the rapid rise of drones (UAVs) in aerial photography, logistics, and inspection, security risks have grown significantly. Unauthorized drone intrusions into airports, prisons, government facilities, and energy infrastructure pose serious threats to public safety and critical assets. Building an effective counter-drone system has therefore become an urgent necessity across industries.

Technical Challenges

Counter-drone operations face unique challenges:

Rapid detection: Drones must be identified before entering restricted zones.

Long-range recognition: A long range security camera is essential for spotting and confirming UAVs several kilometers away.

Stable tracking: Fast, precise tracking of small and agile aerial targets requires a robust pan tilt unit capable of high accuracy even in harsh outdoor conditions.

System integration: Cameras must work seamlessly with radar, RF detection, and jamming modules to form a complete counter-drone defense chain.

ZIWIN Counter-Drone Solution

1. Heavy Duty Pan Tilt – Core of Precision Tracking

ZIWIN’s heavy duty pan tilt units are designed to carry large payloads, including radar antennas, EO/IR cameras, and multiple sensors.

High load capacity: Supports long-range optical systems and heavy radar antennas.

Strong stability: Resistant to wind, vibration, and outdoor challenges, ensuring continuous operation.

Precise control: Enables fast response, 360° continuous rotation, and wide tilt angles to lock onto UAV targets instantly.

2. Long Range Security Camera – Detection at Distance

Integrated long range security cameras deliver clear imaging and reliable identification of UAVs at long distances.

Day & night monitoring: Thermal imaging and laser night vision ensure target detection in darkness or poor weather.

High zoom capability: Captures drone details, including flight posture and payload, supporting risk assessment.

AI-powered analysis: Enables UAV classification and reduces false alarms.

3. Pan Tilt Unit – 360° Situational Awareness

By linking with radar, ZIWIN’s pan tilt units enable wide-area coverage and rapid response.

Full-area scanning: Provides 360° monitoring with no blind zones.

Fast target lock: Once radar detects a suspicious object, the pan tilt system immediately drives cameras to track.

Seamless integration: Connects with jamming devices to form a complete “detection–tracking–response” counter-drone workflow.

Application Scenarios

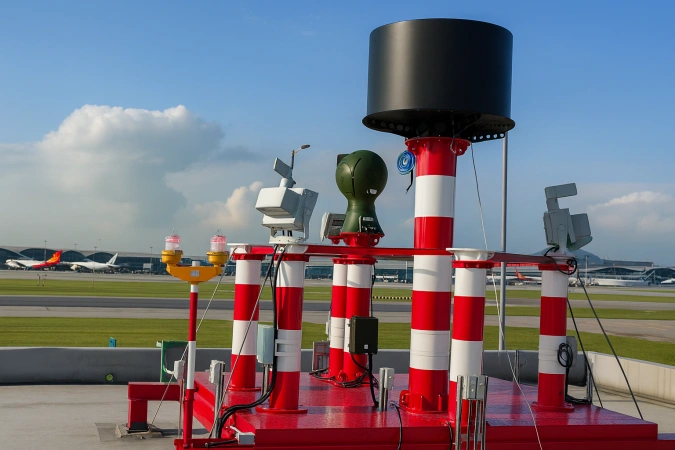

Airports & Aviation Safety: Prevent drones from entering runways and terminals, ensuring flight safety.

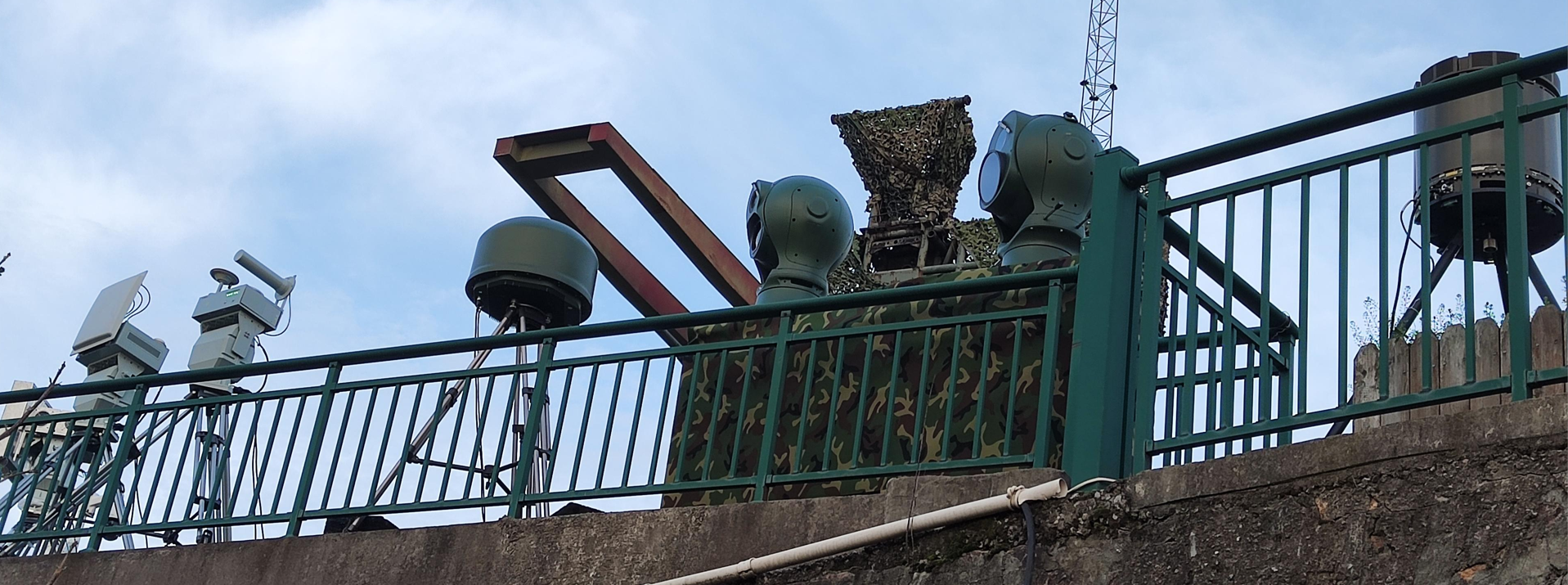

Military & Border Security: Protect against UAV reconnaissance, interference, or attacks.

Energy & Critical Infrastructure: Safeguard oil & gas facilities, power plants, and communication towers.

Urban Security & Large Events: Establish drone defense perimeters around stadiums, concerts, and government events.

Solution Advantages

Integrated defense: Combines radar detection, optical identification, and countermeasure deployment.

High reliability: Waterproof, anti-corrosion, and all-weather performance for continuous outdoor use.

Scalable architecture: Easily integrates additional sensors and countermeasure systems.

Conclusion

By integrating heavy duty pan tilt units, long range security cameras, and advanced pan tilt systems, ZIWIN delivers an intelligent and all-weather counter-drone solution. This system ensures rapid detection, accurate tracking, and effective response in complex environments, providing robust airspace protection for airports, military bases, and critical infrastructure.
