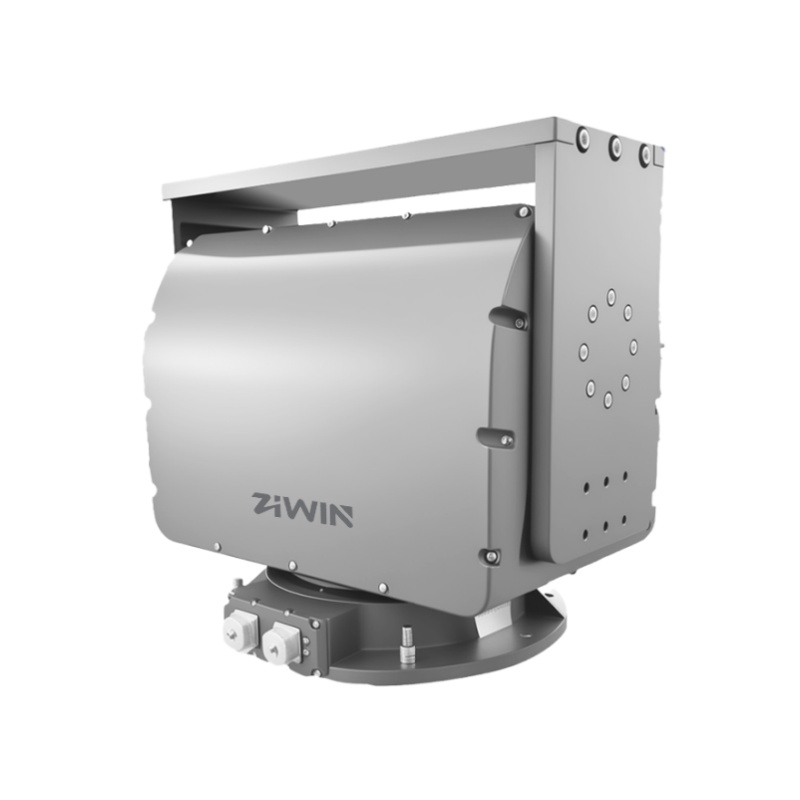

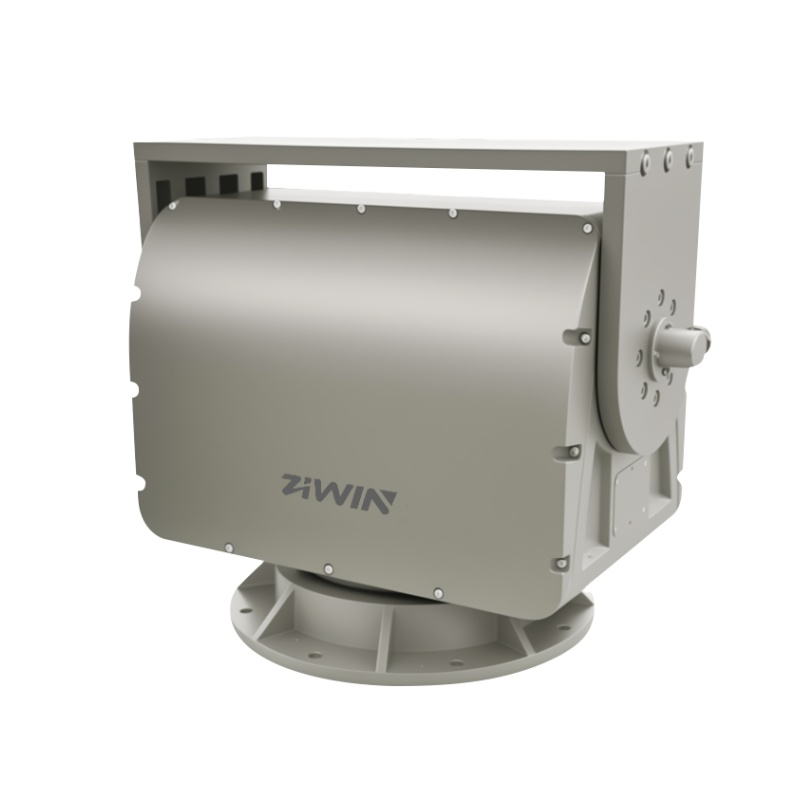

Features of ZN-SPH100U Outdoor Variable Speed Heavy-Duty Pan-Tilt Head
★ Heavy duty pan tilt unit, indoor/outdoor use
★ High-precision all metal worm gear drive transmission
★ Load capacity up to 100kg/220.46lb
★ High-strength aluminum alloy construction
★ Self-lock with memory after power failure, strong wind-resistance
★ Variable speed, pan: 0.01°/s~20°/s, tilt: 0.01°/s~5°/s
★ 360° continuous pan rotation, Tilt :+70°~-70°
★ Preset accuracy:±0.1°
★ Support position feedback and absolute position
★ 4000V lighting surge protection
★ RS485/RS422 pan tilt control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SPH100U |
| Max. Load Capacity | 100kg/220.46 lb |
| Load Type | Top load |
| Transmission Mode | Worm gear transmission |
| Pan Range | 0°~360° |
| Tilt Range | -70°~+70° |
| Pan Speed | 0.01°/s~20°/s |
| Tilt Speed | 0.01°/s~5°/s |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Cruising Track | 8, each with 10 preset positions |
| Scan | 1 |
| Position Feedback | Support position query/feedback via RS422 |
| Start Movement | A series of movements for calibration when the unit is powered on |
| Guard Location | Support time period from 1-60 mis |
| Lens Preset | Support, |
| Lens Control | Support |
| Self-lock | Support |
| Power-Off Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
| Protocol | Pelco D/P |
| Baud Rate | 2400/4800/9600/19200 bps |
| Communication Interface | RS485 (Optional RS422,RS232) or RJ45 |
| Interface | |
| Pan Tilt Base | 1000M Ethernet pass-through, RS 422 input, 48V DC input (2 wire), GND |
| Pan Tilt Top | 1000M Ethernet pass-through, RS422 input,12V DC output (2 wire), 48V DC output (2 wire), GND |
| General | |
| Power Supply | DC48V±20% |
| Power Consumption | ≤200W |
| Working Temperature | -25°C~+65°C (-13°F~ +149°F), Optional:-40°C~+65°C (-40°F~ +149°F) |
| Working Humidity | ＜90%RH |
| Protection Level | IP66 |
| Material | Aluminium Alloy |

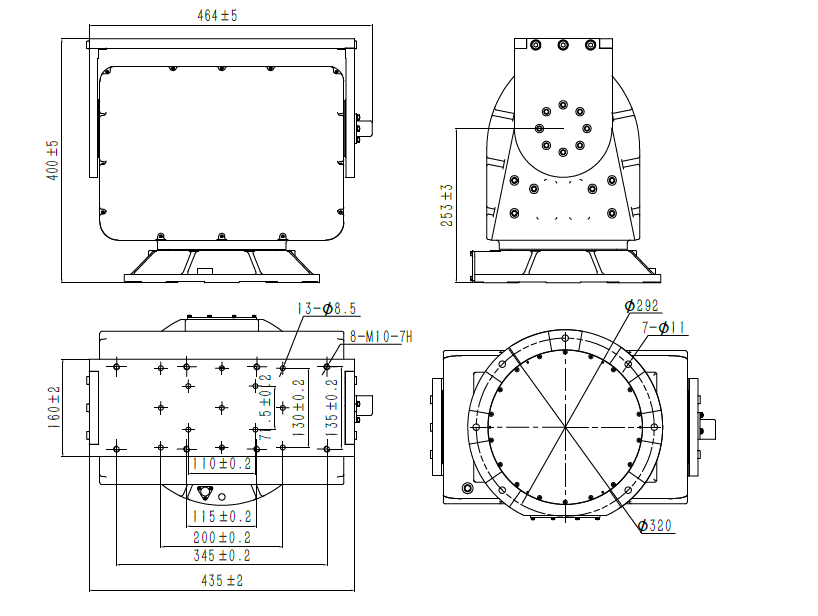

| Size | 464×308×400mm（L×W×H） |
| Weight | ≤46kg |
Q: What is the maximum load capacity of the ZN-SPH100U pan-tilt head?
A：The ZN-SPH100U has a maximum load capacity of 100 kg, though the actual supported load is determined by the height of the center of gravity.
Q: What are the rotation ranges for pan and tilt?
A: Pan (horizontal): 360° continuous rotation.
Tilt (vertical): +70°~-70°
Q：Can it be used outdoors or in harsh environments?
A：Yes, it features robust construction suitable for outdoor use. For extreme conditions (e.g., rain, dust), confirm IP rating or inquire about protective housings.
Q: How to clean and maintain the pan-tilt head?
A: Regularly clean the housing with a soft cloth to avoid blocking ventilation holes.
Check gear lubrication every 6 months (use specialized grease if needed).
Q：Are there any recommended accessories?
A：
· Heavy-duty tripods
· Counterbalance kits for uneven loads
