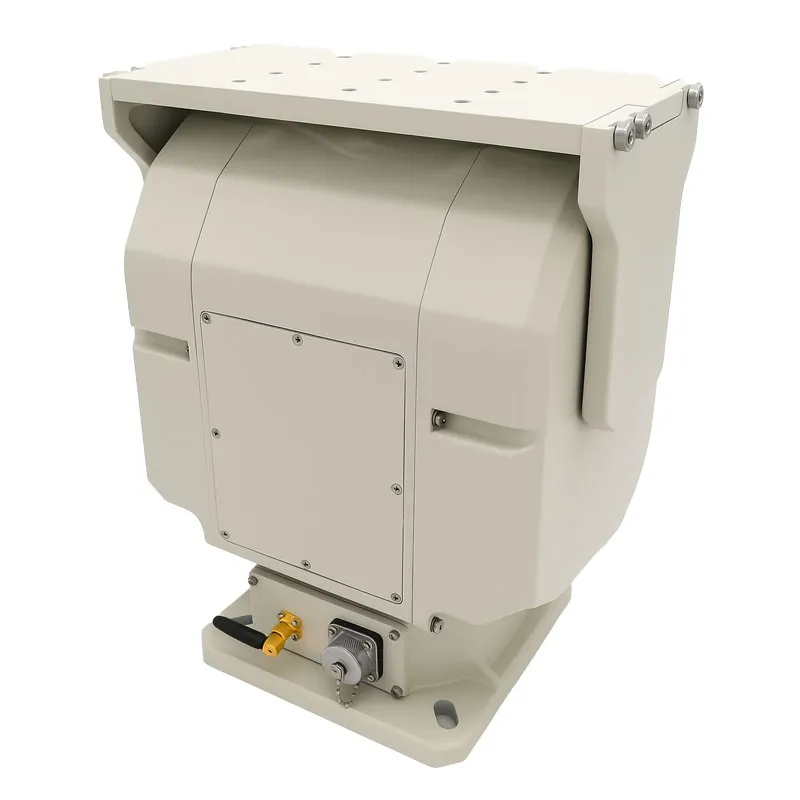

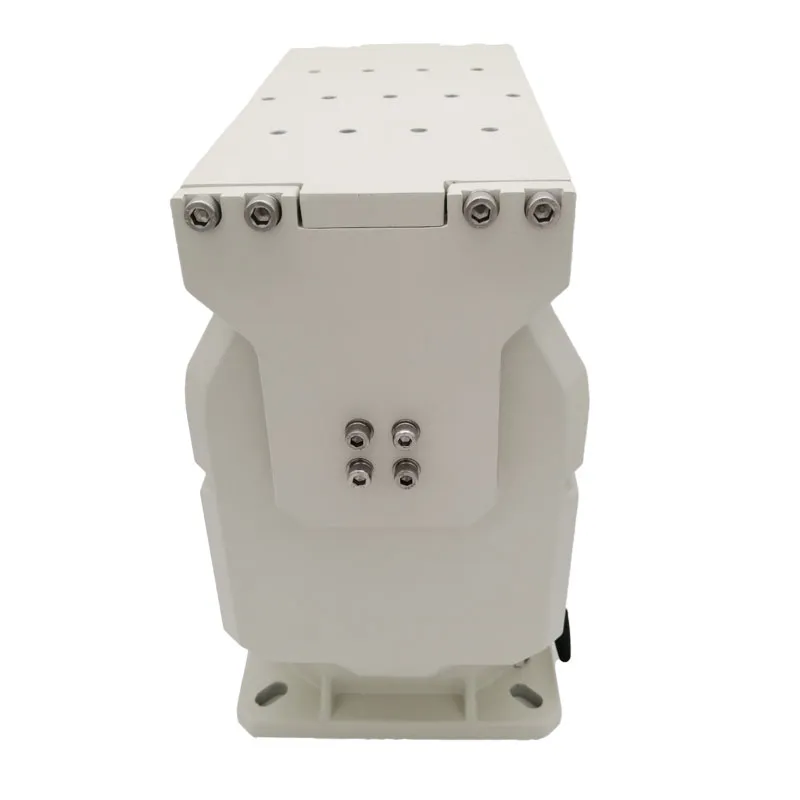

High Precision Pan Tilt Head with Load Capacity 30kg(66.22lb)

ZN-SPM30Y

Features of ZN-SPM30Y High Precision Pan Tilt Positioner

  • Medium pan tilt unit, indoor/outdoor use

  • High-precision Worm Gear Transmission

  • Support Power-off Self-locking

  • Max.Load Capacity 30kg(66.22lb)

  • High-Strength Aluminum Alloy Construction

  • Pan Speed: 0.01°~20°/S (Up to 55°/S; the higher the rotation speed, the lower the payload capacity )

  • Tilt Speed: 0.01°~10°/S (Up to 30°/S; the higher the rotation speed, the lower the payload capacity)

  • 360° continuous(Customizable rotation range from 0° to 340°)

  • Tilt Range: -60°~20°(Optional limited rotation, with a maximum angle range from -90° to +90°)

  • Preset Position: 200

  • Preset accuracy:±0.1°

  • Support Position Feedback and Absolute Position

  • RS485/RS422 Pan Control with Pelco P/D Protocol

  • Protection Grade: IP66 Waterproof

Contact Us
Specification Dimension Wiring Custom FAQs Video

Specification

ModelZN-SPM30Y
Max. Load Capacity30kg(66.22lb)
Load TypeTop load, Side load
Transmission ModeWorm Gear Transmission
Pan  Speed0.01°~20°/S
Tilt Speed0.01°~10°/S
Pan Range360° continuous
Tilt Rang-60° ~20°
Presets200
Preset Accuracy±0.1° (optional ±0.01°)
Auto CruisingSupport, 2  (each with 40 presets)
Auto ScanSupport, 1
Lens Preset PositionOptional
Lens Control SpeedOptional
Auto HomingIt can be set up within the period of 1~60 mins
Power on Self-testSupport
Position PassbackQuery Response or Real-time Response Transmission
Auxiliary SwitchOptional(1~2 Groups)
Salt-SprayOptional
ProtocolPelco D (optional Pelco P/ModBus-RTU)
Baud Rate9600bps (optional 2400/4800/115200 bps)
Self-lockingSupport
Interface
Communication InterfaceRS422 (optional RS485/RS232/Network Interface)
Top Cable OutletOne pass-through standard signal cable (4-core),One DC24V power output cable (2A)
Bottom Cable OutletOne pass-through standard signal cable (4-core),One DC24V power input cable (system power supply),One RS422 cable (pan-tilt communication).
General
Power SupplyDC24V (optional DC48V/AC220V)
Power Consumption≤90W
Static Power Consumption≤2W
Grade ProtectionIP66
Working Temperature-25℃~+65℃
Working Humidity90% RH, non-condensing
Storage Temperature-40℃~+65℃
Size272×170×300mm(L×W×H)
Weight12kg(26.73lb)
Installation MethodFixed installation, Vehicle-mounted, Hoisting


View More View Less

Dimension

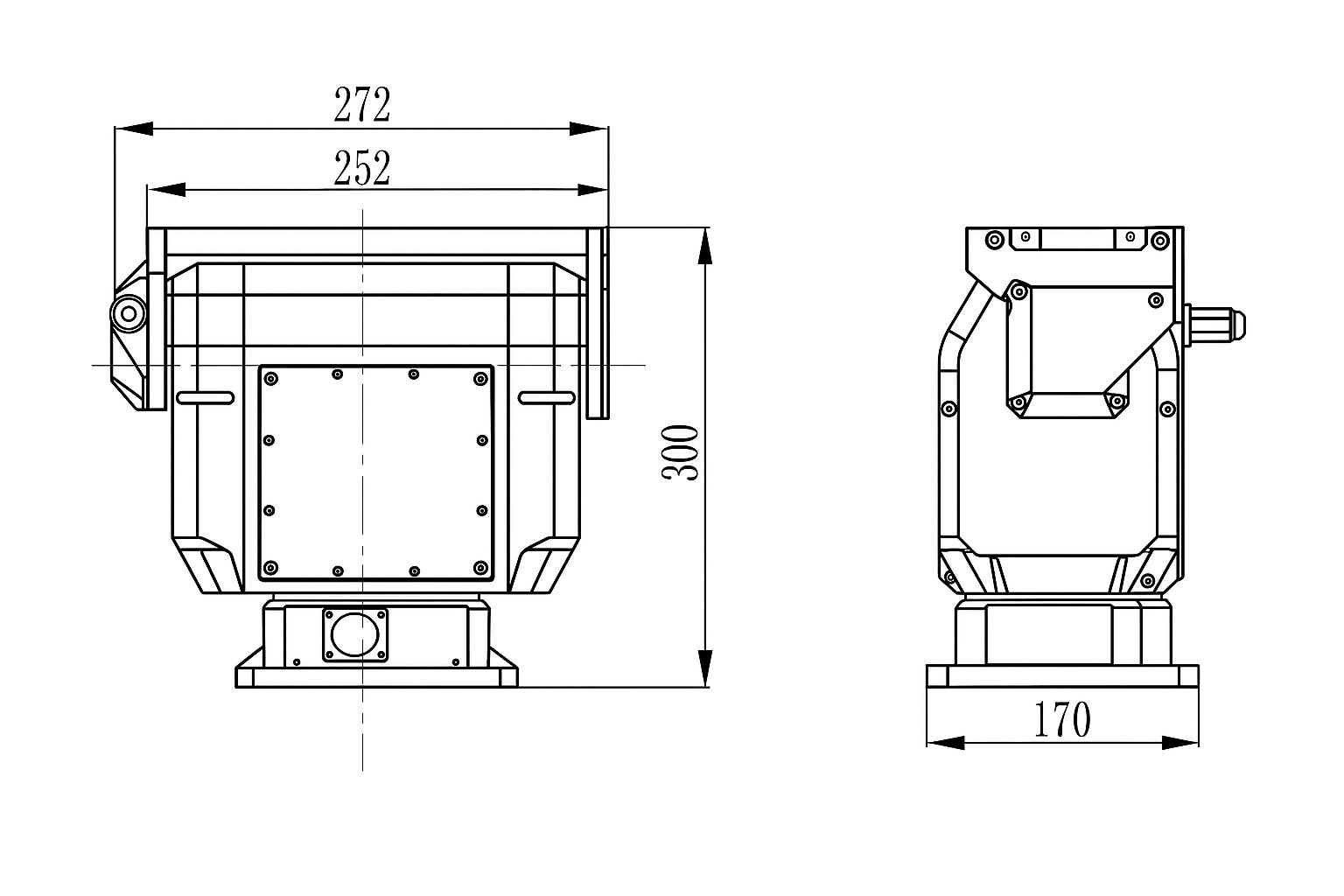

Dimension of ZN-SPM30Y Pan Tilt PositionerDimension-of-ZN-SPM30Y-Pan-Tilt-Positioner.jpg

Wiring

Standard Wiring of ZN-SPM30Y Pan Tilt Positioner


Custom

Custom Designs for the ZN-SPM30Y



FAQs

FAQ for ZN-SPM30Y Pan Tilt Unit


Q: What kinds of camera modules are compatible with ZN-SPM30Y?

A:The ZN-SPM30Y supports medium-to-long zoom visible-light camera cores and thermal imaging lenses, providing flexible integration for long-range reconnaissance and intelligent tracking.


Q: What typical applications use this 30 kg pan-tilt unit?

A:This high-load model is widely used in robotic vehicles, forest-fire prevention systems, maritime surveillance, border outposts, and UAV ground stations.


Q: How is ZN-SPM30Y optimized for large-payload stability?

A:With a 30 kg capacity and precision worm-gear drive, the unit ensures smooth rotation, high torque output, and repeatable accuracy (±0.1° / ±0.01° optional) under heavy optical systems.


Q:Can it work reliably in harsh outdoor conditions?

A:Yes. Its high-strength aluminum-alloy body and IP66 protection enable long-term operation in wind, rain, salt-spray, and high-humidity environments.


Q:Does ZN-SPM30Y support integration with robotic or intelligent platforms?

A:Yes. It supports RS422/RS485/RS232 and ModBus-RTU or Pelco P/D protocols, easily integrating with autonomous robots, AI vision systems, and remote control platforms.

Video

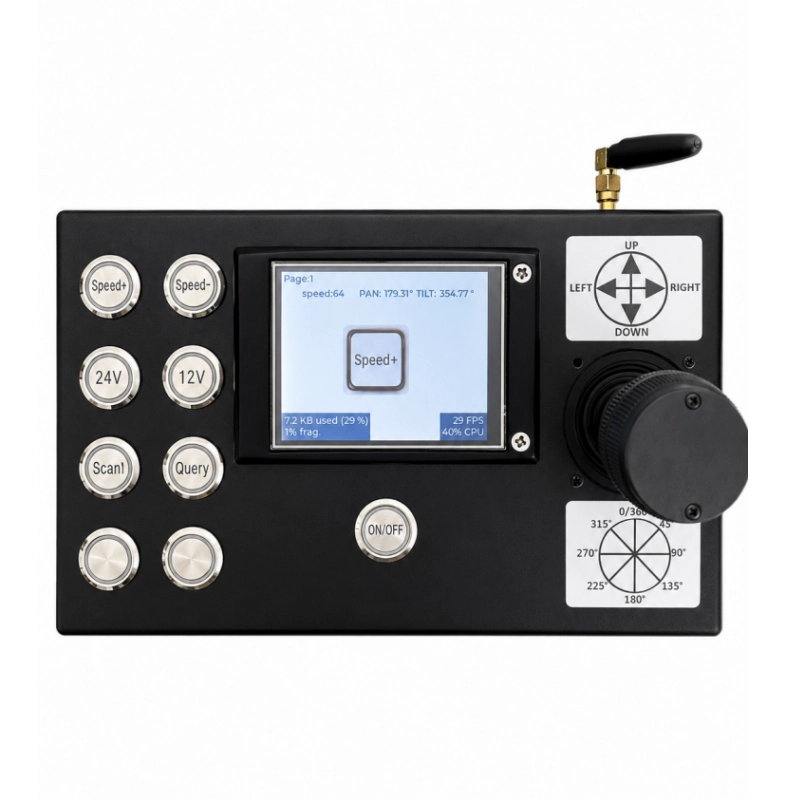

Control Solution Using a Wireless Keyboard for Pan Tilt Unit


Contact Us
Contact Us

Contact us for pan tilt positioners, long-range surveillance cameras and custom solutions. Share your project requirements, and our team will assist with product selection, technical questions and quotations. 
