What Is the Difference Between PTZ and Dome Camera?

When designing a modern surveillance system, one of the most common questions is: what is the difference between PTZ and dome camera?

Both camera types are widely used across security projects—from retail stores to large-scale industrial facilities—but they serve fundamentally different purposes.

In simple terms:

• PTZ cameras are designed for dynamic monitoring and long-range tracking

• Dome cameras are built for fixed, continuous observation in specific areas

Understanding the differences between PTZ camera vs dome camera is critical if you want to:

• Maximize coverage efficiency

• Reduce equipment costs

• Improve overall security performance

This guide goes beyond basic comparisons—helping you make engineering-level decisions while also highlighting how solutions from ZIWIN can elevate your surveillance system.

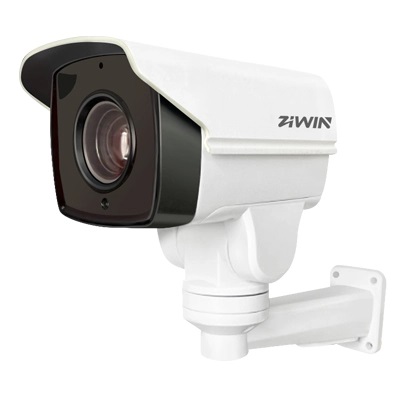

What Is a PTZ Camera?

A PTZ camera is a motorized surveillance device that can pan, tilt, and zoom remotely to monitor large areas dynamically and in real time.

PTZ stands for:

• Pan: Horizontal rotation (typically 0°–360°)

• Tilt: Vertical movement (-90° to +90°)

• Zoom: Optical zoom (usually 20x–40x, sometimes higher)

Key Capabilities:

• Remote control via software or joystick

• Auto-tracking of moving targets

• Preset patrol routes

• Long-distance identification, especially long range PTZ

Typical Performance Data:

• Coverage radius: up to 300–1000 meters (depending on lens)

• Zoom: up to 40x optical zoom

• Rotation: continuous 360° pan

PTZ camera use cases:

• Airports

• Parking lots

• Border surveillance

• Industrial zones

What Is a Dome Camera?

A dome camera is a surveillance device enclosed in a dome-shaped housing, designed for stable, discreet monitoring, with advanced versions like IR speed dome cameras offering both wide-area coverage and intelligent tracking capabilities.

Advantages of Dome Cameras

The advantages of dome cameras go beyond their compact design—they are engineered for both practical deployment and long-term reliability:

• Discreet & Vandal-Resistant Design
  Dome housing makes it difficult to determine viewing direction and protects against tampering.

• Wide Coverage for Fixed Monitoring
  Ideal for continuous surveillance in defined areas like entrances or indoor spaces.

• All-Weather Durability
  Industrial models support extreme environments from -45°C to +60°C

• Enhanced Night Performance
  IR speed dome cameras provide clear imaging even in complete darkness.

• Integrated Intelligence (Advanced Models)
  Features such as auto-tracking, preset patrol, and intelligent detection improve efficiency.

Typical Dome Camera Applications:

• Retail stores

• Offices

• Schools

• Hospitals

Dome cameras are especially effective where consistent visibility is more important than flexibility.

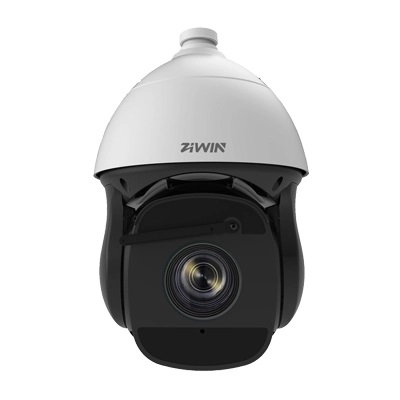

Traditionally, dome cameras are known for their fixed or semi-fixed viewing angles, making them ideal for continuous monitoring of specific areas. However, modern innovations—especially IR speed dome cameras—have significantly expanded their capabilities.

Unlike basic dome cameras, ZIWIN’s professional HD IR speed dome cameras combine the classic dome design with PTZ functionality, delivering both flexibility and performance.

Key Features of IR Speed Dome Cameras

• 360° continuous pan & 90° tilt for full-area coverage

• Powerful 30x–44x optical zoom for long-distance monitoring

• Night vision up to 200 meters with infrared technology

• Ultra-low illumination as low as 0.005 Lux for clear night imaging

• Durable design with IP66 weatherproof and IK10 vandal resistance

These features make IR speed dome cameras suitable for demanding environments such as:

• Transportation systems

• Industrial facilities

• Railways and mining sites

PTZ Camera vs Dome Camera: Key Differences

The difference between PTZ and dome cameras lies in mobility, coverage, control capability, and application scenarios.

Side-by-Side Comparison

What Are PTZ Cameras Used For?

PTZ cameras are used for monitoring large areas where active tracking and flexible viewing angles are required.

Common PTZ camera Applications:

• City surveillance systems

• Perimeter security

• Traffic monitoring

• Event security

Why PTZ Cameras Excel:

• Replace multiple fixed cameras

• Track moving objects in real time

• Reduce blind spots

In large-scale projects, one PTZ camera can replace 4–8 fixed cameras, depending on layout.

What Are Dome Cameras Used For?

Dome cameras are used for continuous monitoring of fixed areas where stable, wide-angle coverage is needed.

Typical Use Cases:

• Indoor surveillance

• Entry/exit monitoring

• Cashier counters

• Corridors

Advantages:

• Lower cost

• Easy installation

• Less noticeable (better for discreet surveillance)

Which Is Better: PTZ or Dome Camera?

Neither PTZ nor dome cameras are universally better—the right choice depends on your surveillance goals and environment.

Decision Guide:

• Choose PTZ camera if:

• You need to monitor large areas

• You require zoom and tracking

• You want flexible control

• Choose dome camera if:

• You need constant monitoring

• The area is small or medium-sized

• Budget is limited

Best Practice (Advanced Insight):

Modern systems often combine both:

• PTZ for tracking & overview

• Dome for continuous coverage




Can a PTZ Camera Replace a Dome Camera?

A PTZ camera can replace multiple dome cameras in some scenarios, but it cannot fully replace them in all situations.

Key Insight:

• PTZ = coverage flexibility

• Dome = constant visibility

Limitation:

When a PTZ camera focuses on one direction, other areas are not monitored.

Best strategy:

• Hybrid deployment

• PTZ handles dynamic tracking

• Dome ensures no blind spots

Installation Differences Between PTZ and Dome Cameras

PTZ and dome cameras differ significantly in installation due to their structure and operational purpose.

PTZ Installation:

• Mounted on poles or walls

• Requires strong support

• Needs power + control wiring

Dome Installation:

• Ceiling-mounted

• Compact and lightweight

• Easier to install

Visual impact:

• PTZ = visible deterrent

• Dome = discreet monitoring

Latest Trends in PTZ and Dome Cameras

Modern surveillance systems are integrating AI, automation, and multi-sensor technologies into both PTZ and dome cameras.

Key Trends:

• AI Auto-Tracking

• Smart Detection (human/vehicle recognition)

• Cloud-based monitoring

• Integration with pan and tilt positioners

Advanced systems now combine:

• PTZ cameras

• Thermal sensors

• Radar systems

How to Choose Between PTZ and Dome Camera

Choosing between PTZ and dome cameras depends on monitoring range, budget, installation environment, and operational requirements.

Key Factors:

• Coverage area size

• Need for zoom/tracking

• Budget constraints

• Indoor vs outdoor use

• Integration with other systems

Pro Tip: If you're building a future-proof system, consider scalability and integration with advanced positioning systems.

Why Choose ZIWIN for Professional Security Camera Solutions

ZIWIN is a professional provider of security camera solutions, offering high-performance systems including PTZ integration and pan-tilt positioning technologies.

Why ZIWIN Stands Out:

• Industrial-grade engineering

• High-precision control systems

• Customizable solutions

• Proven reliability in harsh environments

ZIWIN security camera solutions are especially suitable for:

• Critical infrastructure

• Border security

• Smart city projects

FAQs

1. What is the main difference between PTZ camera and bullet camera?

The core difference between PTZ camera vs bullet camera lies in mobility and monitoring flexibility. A PTZ (Pan‑Tilt‑Zoom) camera supports remote horizontal/vertical rotation and optical zoom to track moving targets and cover wide areas. A bullet camera is fixed‑mounted, offering stable fixed‑angle surveillance with simpler installation and lower cost for continuous single‑view monitoring.

2. Are PTZ cameras better than dome cameras?

Not necessarily—PTZ is better for large areas, while dome cameras are better for constant monitoring.

3. Can a dome camera zoom?

Most dome cameras have limited or digital zoom, not comparable to PTZ optical zoom.

4. Where should I use a PTZ camera?

Use PTZ cameras in large, open areas like parking lots, airports, and industrial sites.

5. Are dome cameras suitable for outdoor use?

Yes, outdoor-rated dome cameras are available with weatherproof designs.

6. How many dome cameras can a PTZ replace?

Depending on the setup, one PTZ can replace 4–8 dome cameras, but not in all scenarios.

Conclusion

Understanding the difference between ptz camera vs dome camera is essential for designing an effective surveillance system.

• PTZ cameras provide flexibility, zoom, and large-area coverage

• Dome cameras ensure stable, continuous monitoring

The most effective solution is often a combination of both.
