Precision Selection Guide: How to Choose the Perfect Pan Tilt Unit (PTU) for Your Project

Selecting the right Pan Tilt Unit (PTU) for your security surveillance project is crucial for ensuring system performance, reliability, and cost-effectiveness. Faced with a vast array of products on the market, how do you cut through the noise to find the optimal pan tilt unit for your specific needs? This guide details the core factors to consider during selection, empowering you to make informed decisions.

Define Application Scenario & Environmental Requirements

This is the primary starting point:

1. Indoor vs. Outdoor:

o Outdoor: Must select a pan and tilt unit with a high IP Rating, typically at least IP66 (protection against powerful water jets and dust). In coastal or corrosive environments, consider corrosion resistance. Materials need UV resistance and wide temperature tolerance (-30°C ~ +60°C or broader).

o Indoor: Lower protection requirements suffice (IP54 or below), but pay attention to noise levels (e.g., offices, hospitals).

2. Load Type & Weight:

o Camera Type: Dome camera? Or bullet camera + lens + housing? Different combinations vary significantly in weight.

o Lens Size: Long focal length, large lenses are heavier, demanding greater payload capacity and rigidity from the pan tilt unit.

o Additional Equipment: Integrated IR illuminators, laser illuminators, thermal imagers? These add weight.

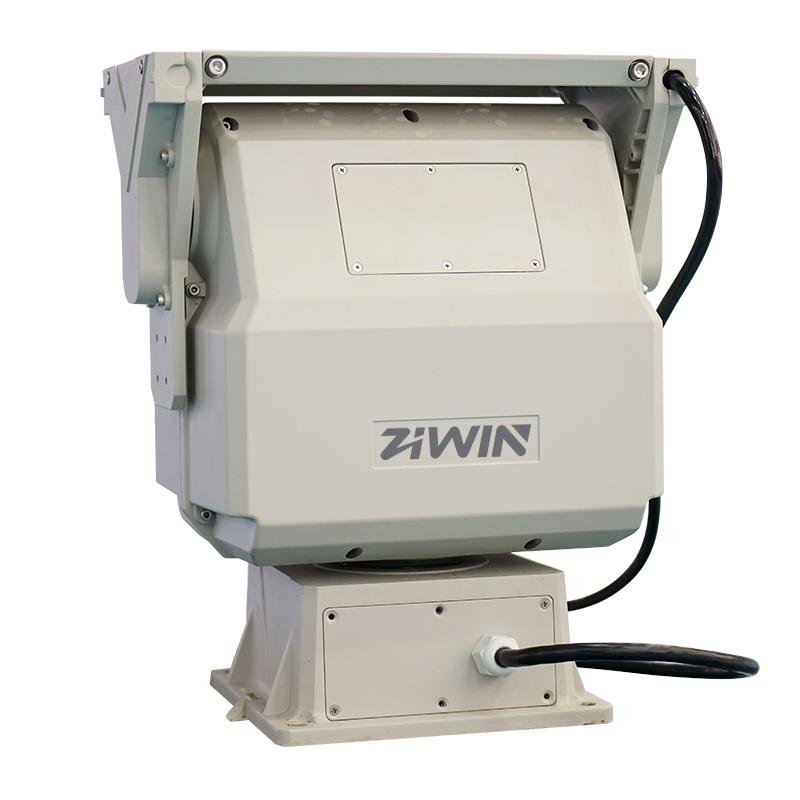

o Key Parameter: Maximum Payload Capacity - The maximum weight the pan and tilt unit can stably support (typically including camera, lens, housing, and all accessories). Crucially, select a PTU whose payload capacity exceeds your total equipment weight, with a safety margin (recommended 15-20%) to ensure smooth operation and long lifespan. ZIWIN TECHNOLOGY offers a wide range of payload capacities (e.g., 3kg, 8kg, 15kg, 30kg, 50kg, 80kg) in its pan tilt units, meeting needs from compact domes to heavy-duty long-range surveillance.

3. Range of Motion & Speed Requirements:

o Horizontal Rotation (Pan) Range: Need 360° continuous rotation? Or limited angle (e.g., 180°)? Continuous rotation requires a high-quality slip ring.

o Vertical Tilt Range: Standard is typically -90° (straight down) to +90° (straight up). Special applications may require greater range.

o Rotation Speed: Need fast tracking for moving targets (e.g., vehicles, running people)? Or primarily for slow cruising? Pan Speed / Tilt Speed are key metrics (e.g., 0.1° ~ 60°/sec or higher). High-speed pan tilt units are usually more expensive.

4. Mounting Location & Method:

o Wall-mount, Ceiling-mount, Pole-mount? Confirm the PTU's base interface is compatible with standard brackets.

o Mounting Height & Wind Load: Installations at height or in open areas must consider wind load. Choose a structurally robust, highly rigid pan tilt unit and note its wind resistance rating (if provided).

o Discreteness Requirement: Is a housing needed to conceal the pan and tilt unit?

Key Performance Parameter Analysis

1.Accuracy & Repeatability:

o Accuracy: Deviation between the pan tilt positioner's actual position and the commanded position (usually measured in degrees or pixels). High accuracy is vital for detailed observation and precise tracking.

o Repeatability: Consistency in position when the pan tilt unit returns to the same preset position multiple times. High repeatability indicates reliability. ZIWIN PTUs utilize high-precision encoder feedback and precision-engineered gears to ensure high accuracy and repeatability (±0.1° level).

2. Smoothness of Operation:

o Observe if the camera image shakes or jumps during constant speed or acceleration/deceleration of the pan tilt unit. Smooth operation is fundamental for high-quality video, depending on motor control algorithms, gear meshing precision, and structural rigidity.

3. Noise Level:

o Especially important in quiet environments like libraries, hospital rooms, or upscale hotels. Note the product's specified noise value (dB). ZIWIN's indoor models feature optimized quiet operation.

4. IP Rating:

o As mentioned, outdoor applications require a high IP rating (e.g., IP66/IP67). Check certification reports.

5. Communication Protocol & Control Interface:

o Protocol: Ensure the pan and tilt unit supports the protocol used by your backend system (DVR/NVR/control keyboard/VMS platform), such as Pelco-D/P, Bosch, Honeywell, Samsung, Panasonic, ONVIF PTZ. ONVIF compatibility is preferred for modern systems, enhancing interoperability.

o Interface: RS-485 half-duplex is the mainstream. Confirm wiring configuration (2-wire/4-wire).

6. Power Requirements:

o Common voltages are AC 24V or DC 12V/24V. Confirm available power on-site and calculate total power consumption (PTU + camera, etc.) to select the appropriate power adapter or centralized power solution.

Special Feature Requirements

1. Preset Positions: How many are needed? What level of accuracy?

2. Pattern Scan / Tour: Support for automatic cruising between multiple preset positions?

3. Home Position: Automatically returns to a specified position when idle or after an alarm.

4. Auto Flip: Does the image automatically flip to remain upright when tilting beyond 90° vertically (e.g., from looking straight up to straight down)? Essential for continuous tracking of birds or drones.

5. Limit Settings: Can horizontal and vertical rotation limits be customized?

6. Heater / Fan (Outdoor Heavy-Duty): Is temperature control needed for extreme environments?

Brand, Quality & Service

· Manufacturer Experience: Choose a brand with deep expertise in the security field, particularly in PTU manufacturing. ZIWIN TECHNOLOGY has specialized in security pan and tilt unit R&D and manufacturing for 18 years, with products sold globally.

· Materials & Craftsmanship: Examine housing material (die-cast aluminum? engineering plastic?), gear material (metal?), and assembly quality.

· Testing & Certification: Does the manufacturer have strict quality control processes? Are products certified for relevant safety and environmental tests?

· Warranty & Technical Support: Reliable warranty policies and comprehensive technical support are essential for long-term use.

Summary: Selection Checklist

1.Inventory Equipment Weight: Camera + Lens + Housing + Accessories = Total Load? Choose PTU Payload Capacity > Total Load (1.15-1.2x).

2. Confirm Environment: Indoor/Outdoor? IP Rating required? Temperature range? Corrosion resistance?

3. Determine Motion Needs: Horizontal range (360° continuous?)? Vertical range? Speed requirements (high-speed tracking?)?

4. Define Mounting Method: Wall? Ceiling? Pole?

5. Verify Communication Protocol: What protocol does the backend system use? Ensure PTU compatibility (ONVIF preferred).

6. Check Power Compatibility: Voltage (AC24V/DC24V/DC12V)? Power (Watts)?

7. Consider Special Features: How many presets? Cruising? Auto Flip? Home Position?

8. Evaluate Brand & Quality: Manufacturer reputation? Materials & build quality? Warranty & service? ZIWIN is your trusted partner.

9. Plan for Expandability: Could heavier equipment be added in the future?

By systematically evaluating these factors, you can identify the most suitable, cost-effective Pan Tilt Unit for your project, laying a solid foundation for exceptional surveillance system performance.
