The “Agile Eye”of Security Surveillance: Demystifying the Pan and Tilt Unit (PTU) - Core Concepts & Value

In security surveillance systems, fixed cameras act like stationary sentinels, with inherently limited fields of view. The Pan and Tilt Unit (PTU), often called a positioning system or simply a pan tilt unit, empowers cameras with the ability to "move and look," becoming a critical component for expanding coverage and enabling dynamic tracking. This article delves into the core concepts, working principles, and indispensable value of the Pan and Tilt Unit in modern security.

What is a Pan and Tilt Unit (PTU)?

Simply put, a Pan and Tilt Unit is a precision mechatronic device. Its core function is to carry a camera (or other sensors like thermal imagers, laser rangefinders) and drive it to perform precise, smooth movements in the horizontal direction (Pan, left/right rotation) and the vertical direction (Tilt, up/down tilt).

· Pan (Horizontal Rotation): Typically enables 0° to 360° continuous rotation (or a specific angular range), vastly expanding horizontal coverage.

· Tilt (Vertical Tilt): Usually provides a range from -90° (or lower) to +90° (or higher), covering a broad vertical space from the ground to the sky.

· Unit: Emphasizes it's a self-contained, fully functional module integrating motors, gear reduction mechanisms, control circuitry, and mechanical structures – essentially a complete pan tilt positioner.

Core Components & Working Principle of a Pan and Tilt Unit

A typical pan tilt unit comprises these key parts:

1. Mechanical Structure:

o Base: Provides a stable mounting foundation, often featuring standard mounting interfaces (e.g., bracket holes).

o Horizontal Rotation Axis: Contains the motor and a high-precision worm gear or planetary gearbox reduction mechanism, enabling smooth, quiet, high-torque horizontal movement.

o Vertical Tilt Axis: Similarly contains a motor and precision reduction mechanism, responsible for the camera's up/down tilt motion. Design must consider load balancing and wind resistance.

o Housing (Optional): Protects internal mechanisms from dust, rain, harsh weather, or vandalism.

2. Drive System:

o Stepper Motor or DC Servo Motor: Provides the power source. Stepper motors are cost-effective and simpler to control; DC Servo motors offer higher precision, faster response, smoother operation, and are ideal for high-speed, precise tracking – a key feature for an advanced pan tilt positioner.

o Precision Reduction Mechanism: Converts the motor's high-speed, low-torque output into the low-speed, high-torque required by the pan and tilt unit, ensuring smooth and precise motion.

3. Control System:

o Internal Control Board: Receives commands from external controllers (DVR/NVR/keyboard/software platform) via protocols like RS-485, Pelco-D/P, or ONVIF.

o Position Feedback (e.g., Encoder): Monitors the actual position of the pan tilt unit in real-time, enabling closed-loop control to guarantee positioning accuracy and repeatability – essential for a reliable pan tilt positioner.

o Limit Switches: Prevent the unit from rotating beyond its mechanical limits, protecting the device and cables.

4. Interfaces & Cabling:

o Power Input: Typically AC 24V or DC 12V/24V.

o Control Signal Input: e.g., RS-485 interface.

o Video/Data Output (via Slip Ring): For pan and tilt units offering continuous 360° rotation, the slip ring is the core component. It ensures continuous, stable, and tangle-free transmission of power, video signals, control signals, and data during unlimited rotation.

Core Value & Applications of the Pan and Tilt Unit

The core value of a PTU lies in dramatically expanding the coverage of a single surveillance point, enabling:

· 360° Uninterrupted Monitoring: Cover vast areas, reducing the number of fixed cameras needed and lowering overall costs.

· Dynamic Target Tracking: Work with intelligent analytics (e.g., facial recognition, vehicle tracking) for automatic or manual tracking of moving objects.

· Key Area Patrol: Pre-set multiple critical points (preset positions) for automated tours or rapid recall.

· Detailed Observation: Utilize zoom lenses (PTZ cameras) to observe distant details closely.

· Complex Environment Suitability: Ideal for locations requiring large-scale, flexible monitoring: squares, stations, ports, borders, large warehouses, factory floors, transportation hubs.

Why Choose a High-Quality Pan and Tilt Unit?

The pan tilt unit is often the most frequently moving and mechanically stressed component in the system. Its performance directly impacts the stability, reliability, and lifespan of the entire surveillance setup.

· Accuracy & Repeatability: High-precision gears and motors ensure preset positions are accurate and consistently reached – a hallmark of a true pan tilt positioner.

· Smooth Operation: Smooth movement is crucial for video fluidity and effective tracking.

· Load Capacity & Rigidity: Must stably support the camera and housing weight, withstand wind loads, and avoid vibration/shaking.

· Durability & Protection: Requires high-quality materials and construction, featuring excellent waterproofing, dustproofing, corrosion resistance (commonly IP66/IP67 ratings), and temperature tolerance.

· Slip Ring Reliability: For continuous rotation pan and tilt units, slip ring quality is paramount for long-term stability. Inferior slip rings cause signal loss, video noise, and potential device failure.

· Quiet Design: Low noise operation is vital for indoor or quiet environments.

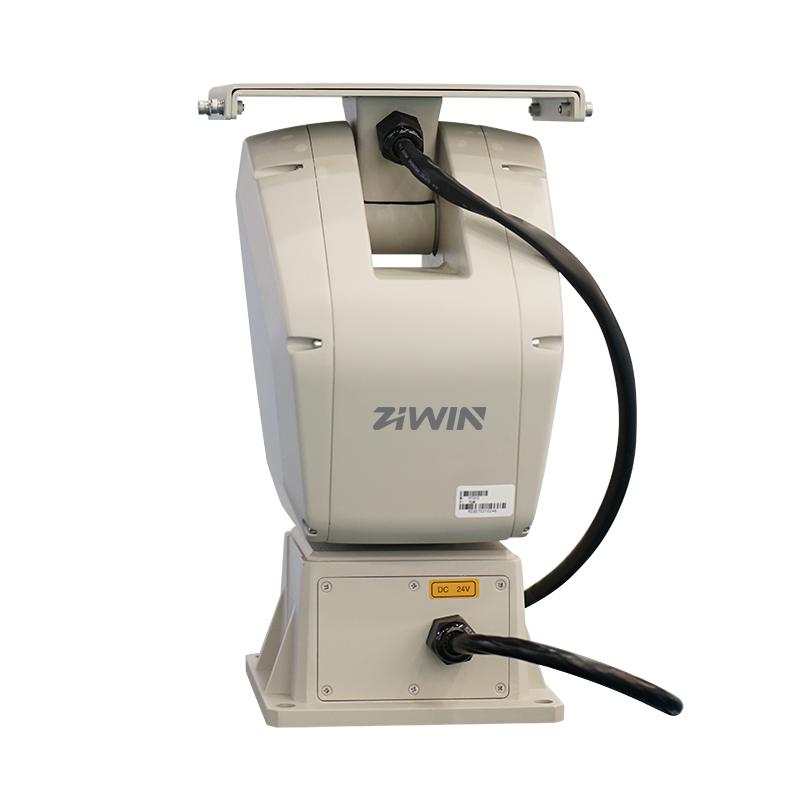

ZIWIN TECHNOLOGY deeply understands the core value of the PTU. ZIWIN Series Pan and Tilt Units utilize precision-engineered motors, imported high-reliability slip rings, and robust, durable housings. Rigorously subjected to aging tests and environmental adaptability testing, ZIWIN PTUs ensure long-term, stable operation in various harsh conditions, providing reliable, precise, and quiet motion support for your critical monitoring points.

Conclusion

The Pan and Tilt Unit is the indispensable "agile joint" in modern intelligent security surveillance systems. Understanding its fundamental concepts, working principles, and core value is essential for building efficient, reliable, and comprehensive monitoring networks. Selecting a high-performance, robust pan tilt unit, such as those from ZIWIN, is a wise investment to ensure long-term system stability and maximize operational effectiveness.
