How We Engineer ±0.1° Precision Surveillance Systems? The Critical Role of Advanced Pan-Tilt Technology

Introduction: When 0.1° Decides Mission Success

In smart city command centers, operators miss critical targets by half a meter despite accurate map coordinates. Border security systems fail to lock onto intruders after repeated scans. These operational failures stem from inadequate pan-tilt precision in surveillance camera system. As AI transforms security, ±0.1° ultra-precision pan-tilt technology is now the operational backbone of mission-critical monitoring – not an optional upgrade.

The Precision Divide: Standard vs. Precision-Engineered Surveillance Systems

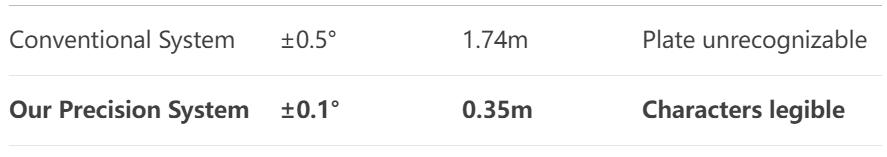

*Real-World Scenario: License Plate Capture at 200m (150mm Lens)*

**Formula: Offset = Distance × tan(Error Angle) → 200 × tan(0.5°)≈1.74m*

Operational Impacts of Precision:

· Preset Drift: Cumulative errors disable critical monitoring points

· Target Dropout: Mechanical backlash loses suspects during tracking

· AI Failure: License plate/facial recognition crippled by image shift

Core Technologies Powering Our ±0.1° Systems
(Positioned as integrated system innovations)

1. Precision Motion Subsystem

o Cross-roller bearings (≤5μm runout)

o Zero-backlash gear trains (0.001° precision)

o Thermal-stable cast chassis (<0.02° deformation at -30℃~70℃)

2. Closed-Loop Control Architecture

21-bit Encoder → Real-time Feedback → Adaptive PID → Servo Drive

· 2,000 corrections/sec sampling

· 50Hz response bandwidth (vs. <10Hz in standard systems)

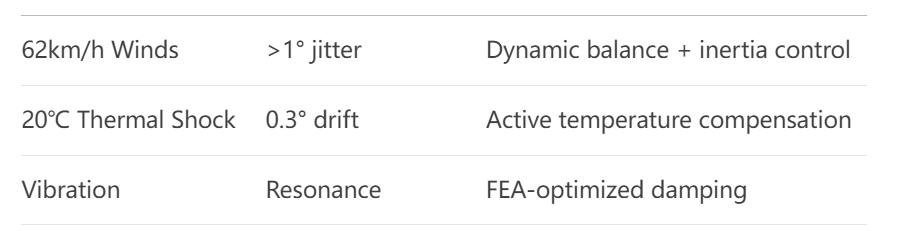

3. Environmental Hardening

Threat    Standard System   Our Solution

Precision in Action: System-Level Deployment
(Emphasizing integrated performance)

1. Smart Traffic: 99.3% Violation Capture Rate

o ±0.1° preset accuracy + 0.1s radar synchronization

o Result: 17% capture rate increase in provincial capitals

2. Border Security: Human Target Lock at 100m

o 0.001°/step micro-adjustment + <2% speed fluctuation

o Eliminates thermal image smearing

3. Citywide Surveillance: 20km Eagle-Eye Coverage

o 0.1° error = 35m offset (≈1 building missed)

o Laser-augmented GIS auto-calibration

Validation: Military-Grade System Reliability

1. Stress Testing Beyond MIL-STD-810G

o 5,000 preset cycles: 99.7% within ±0.1°

o -30℃↔70℃ thermal cycling: <0.03° deviation

o 5-500Hz vibration: ±0.15° maintained

2. Self-Correcting Systems

o Automated laser calibration (±0.01°)

o Wear-compensation algorithms

Why Global Leaders Choose Our Systems

*Testimonial from Top-3 Security Integrator:*

"Only fully-integrated systems with ±0.1° cores achieve:

· <10px facial recognition shift at 200m

· <0.1° image stability in 12m/s winds
This is the baseline for AI-powered security."

Specification Guide for System Integrators

1. Demand Real-World Performance: Insist on third-party environmental validation reports (-20℃/25℃/60℃)

2. Prioritize Dynamic Accuracy: Verify ≤2% speed fluctuation during tracking

3. Test System Resilience: Validate target lock in 62km/h winds/vibration
