Breaking Protocol Barriers in Surveillance? ONVIF + Pelco D Compatible Pan Tilt Heads Hold the Key

In the security surveillance industry, have you ever faced this dilemma: high-definition cameras you carefully selected cannot work with your trusted Pelco matrix system due to protocol incompatibility? Or perhaps after deploying a new ONVIF-supported platform, your legacy Pelco dome cameras become isolated "data silos"? These system fractures caused by protocol differences not only waste resources but can also create dangerous blind spots in your security perimeter.

The Protocol Divide: ONVIF vs. Pelco D – Who Prevails?

· ONVIF: The Open Standard for Interconnectivity
ONVIF has become the universal language of modern IP surveillance systems. By defining standardized network interfaces (like device discovery, video streaming, PTZ control), it allows devices from different brands to "understand" each other. Its core strengths are:

o Breaking Brand Lock-in: ONVIF-compatible cameras, NVRs, and management platforms can be freely combined, giving users maximum choice.

o Simplifying Integration & Maintenance: Unified interface specifications drastically reduce system complexity and ongoing maintenance costs.

o Driving Technological Evolution: Continuous updates support advanced features like analytics and metadata, ensuring future readiness.

· Pelco D: The Legacy King of Analog Control

As Pelco's proprietary analog control protocol, Pelco D (including D1, D2, D3) dominated the analog matrix era for decades. Its characteristics include:

o Proven Stability: Long-term market validation ensures widespread, reliable use in large analog systems.

o Efficient Commands: Concise PTZ control instructions (e.g., FF 01 00 PP TT 0X for movement) transmitted via RS-485 bus.

o Massive Installed Base: Vast numbers of Pelco D-based matrices and speed domes remain operational globally, representing significant legacy assets.

The coexistence of both protocols is inevitable in the transition from analog to IP technology. The ideal solution isn't choosing one over the other, but achieving seamless integration.

The Pan Tilt Head: The Core Physical Enabler of Protocols

Protocols define the "language," while the Pan Tilt Head (PTH) is the critical hardware that executes commands and performs physical movements. Whether it's ONVIF's AbsoluteMove command or Pelco D's PP TT bytes, a high-performance pan tilt head is essential for precise response:

1. Command Parsing & Execution: The PTH's built-in controller must "understand" ONVIF's SOAP/XML messages or Pelco D's serial commands, translating them into precise motor actions (horizontal pan, vertical tilt).

2. Physical Movement Hub: As the core of the pan tilt mechanism, its mechanical structure (gearbox, motors, bearings) determines positioning speed, smoothness, and long-term reliability.

3. Load-Bearing Platform: A robust pan tilt head can carry heavy cameras, telephoto lenses, IR illuminators, or laser modules, ensuring stable operation in harsh environments.

4. The Protocol Compatibility Bridge: Intelligent PTHs supporting multiple protocols become the physical bridge connecting old and new systems, merging different protocol ecosystems.

Choosing a Compatible Pan Tilt Head: The Foundation for Flexible & Efficient Surveillance

Given the reality of coexisting protocols, selecting a truly powerful Pan Tilt Head that natively supports both ONVIF and Pelco D is critical:

· Protect Existing Investments: Seamlessly integrate with current Pelco D systems, revitalizing valuable legacy equipment (domes, matrices).

· Embrace an Open Future: Easily integrate into new or upgraded ONVIF IP systems, leveraging flexibility and advanced features.

· Simplify System Architecture: Reduce the need for protocol converters, lowering complexity, potential failure points, and cost.

· Enhance Operational Efficiency: Control all PTZ devices from a unified management interface for easier maintenance.

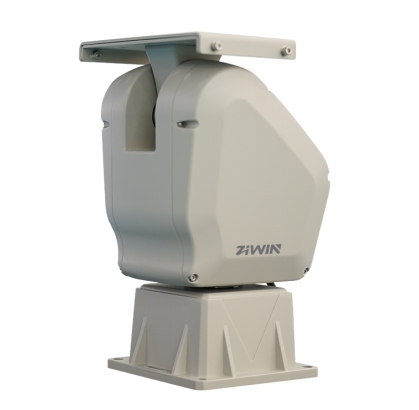

ZIWIN Pan Tilt Heads: Your Expert ONVIF + Pelco D Integration Solution

As a professional manufacturer deeply rooted in the security surveillance pan tilt head domain for years, ZIWIN understands the critical importance of protocol compatibility and customer pain points. Our high-performance pan tilt head series is engineered precisely to break protocol barriers and build efficient, flexible surveillance systems:

1. Dual-Protocol Native Support:

o Fully compliant with ONVIF Profile S (Core specification, including PTZ control), ensuring seamless integration with mainstream NVRs and VMS.

o Perfect support for Pelco D/P protocol, accurately parsing standard commands for seamless integration with Pelco matrices and compatible control systems.

o Intelligent protocol auto-detection, eliminating complex configuration.

2. Exceptional Mechanical Performance:

o High-Precision Gearbox: Utilizes precision machining and premium materials, ensuring smooth, quiet, and backlash-free pan and tilt movements with pinpoint accuracy (up to ±0.1°).

o Powerful Drive Motors: High-torque, high-speed motors deliver rapid response and stable operation even under strong winds or heavy loads.

o Industrial-Grade Design: Full metal housing, high IP66/IK10 protection rating, wide temperature tolerance (-40℃ to +70℃), built for extreme outdoor conditions.

o High Load Capacity: Various models available, pan tilt head load capacity ranging from several kilograms to tens of kilograms, easily supporting heavy cameras, thermal imagers, and auxiliary equipment.

3. Intelligence & Reliability:

o Built-in limit switches protect the pan tilt mechanism.

o Supports advanced functions like preset positions, patrol scans, pattern scans.

o Over-current, over-voltage, and over-temperature protection ensure long-term stable operation.

4. Flexible Integration:

o Standard mounting interfaces compatible with mainstream housings and camera brackets.

o Supports multiple control interfaces (RS-485, RS-422, Network).

o Offers a wide range of pan tilt head accessories (mounting brackets, heaters, wipers).

5. Professional OEM/ODM Support:

o We possess advanced production lines and strict quality control, providing expert pan tilt head OEM/ODM services to global security equipment providers.

o Supports customization (protocol extensions, specific loads, special environmental adaptations).

Application Scenarios: Unleashing the Value of Compatible Pan Tilt Heads

· Safe City / Intelligent Transportation: Integrate legacy and new road monitoring resources, unifying management of Pelco D speed domes and ONVIF HD PTZ cameras.

· Large Campuses / Critical Infrastructure: Compatible with existing Pelco matrix systems, enabling smooth partial upgrades to ONVIF HD intelligent domes.

· Ports / Border Security / Forest Fire Prevention: Heavy-duty pan tilt heads carrying laser thermal imagers, compatible with various backends for ultra-long-range monitoring.

· Factories / Power Plants: Reliable dual-protocol PTHs ensure comprehensive coverage and system stability in complex industrial environments.

Choose ZIWIN, Choose a Borderless Surveillance Future

Protocols should not hinder system integration. ZIWIN professional Pan Tilt Heads, with their exceptional dual-protocol compatibility (ONVIF + Pelco D), robust pan tilt mechanism performance, and military-grade reliability, empower you to completely break down protocol barriers and build truly flexible, efficient, future-proof security surveillance systems.

Welcome to visit our website: www.ziwincctv.com

· Contact our technical experts for a tailored integrated surveillance solution!

· Inquire about pan tilt head OEM/ODM cooperation to build your unique competitive products!

Let ZIWIN's compatible pan tilt heads become the powerful, flexible, and seamlessly connected cornerstone of your surveillance system!
