The Ultimate Guide to Industrial Pan and Tilt Positioners: Selection Criteria, Core Technologies & Application Scenarios

Introduction: Redefining Precision Motion Control

In automated surveillance, industrial inspection, scientific exploration, precise control of viewing angles and positioning is critical. Whether referred to as a Pan Tilt Positioner, Pan & Tilt Unit, or Pan Tilt Head, the core mission of these dual-axis rotational platforms remains unchanged: to provide stable, flexible, reliable, and precise horizontal (Pan) and vertical (Tilt) motion for payloads.

With countless products flooding the market, how do you select a truly industrial-grade pan and tilt positioner? This guide dives deep into key technical specifications and selection logic.

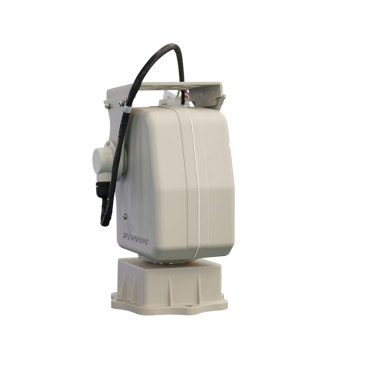

Core Performance Metrics of Industrial Pan Tilt Positioners

1. Payload Capacity & Structural Rigidity

o Not all "heavy-duty" positioners live up to their claims. Our Pan Tilt Unit series features a high-rigidity cast aluminum/alloy steel body with precision cross roller bearings, ensuring zero wobble or backlash when carrying 50kg payloads (e.g., thermal imagers, LiDAR).

o Critical Comparison: Standard positioners often exhibit resonance or drift at full load, while industrial designs guarantee smooth operation (vibration amplitude < 0.05°).

2. Accuracy: The Soul of Positioning

o Preset Position Accuracy (±0.1°): This benchmark separates industrial-grade from consumer-grade products. Our Pan Tilt Head achieves ≤ ±0.1° repeatability through high-resolution absolute encoders + closed-loop servo control algorithms. This translates to:

• Zero target deviation when recalling presets in security applications.

• Negligible positional error at inspection points in industrial QA.

• High data reproducibility in scientific research.

o Critical Comparison: Standard positioners typically offer ≥ ±0.5° accuracy – insufficient for precision scenarios.

3. Environmental Resilience: The Practical Value of IP66 Protection

o IP66 certification delivers real-world protection:

• Total Dust Resistance (6 rating): Blocks cement dust, desert sand, metal debris, etc., safeguarding internal motors and circuits.

• Powerful Water Resistance (6 rating): Withstands pressure washing (e.g., port vessel cleaning, storms) without internal leakage.




o Extended Capability: Customizable versions operate from -30°C to +70°C for arctic or high-temperature environments.

4. Communication & Control: The "Nervous System"

o RS485/RS422 Interface: Industrial-standard, noise-resistant communication over 1,200 meters, ideal for large plants, oil fields, and railways.

o Native Pelco P/D Protocol Support: Seamless integration with 90%+ security systems (e.g., Dahua, Hikvision, Bosch, Milestone VMS) and industrial PLCs. Key functions include:

• 256 preset positions

• 8 auto-patrol routes

• Variable speed control, auto-scanning, pattern scanning

• Status feedback (temperature, position, error codes)




 Key Applications & Selection Guidelines

· Scenario 1: Large-Scale Smart Security (Core Enabler for Security Camera with Pan Tilt Zoom)

o Requirements: Wide-area coverage + detail capture + harsh environment operation.

o Solution: 50kg-capacity Pan Tilt Positioner + 30x optical zoom camera + thermal module.

o Value: IP66 resilience, ±0.1° accuracy ensures crisp license plate/face recognition, Pelco P/D enables centralized platform integration.

· Scenario 2: High-Precision Industrial Inspection

o Requirements: 360° visual inspection of auto parts/PCBs demanding extreme repeatability.

o Solution: High-rigidity Pan Tilt Head + industrial camera + AI analytics.

o Value: ±0.1° accuracy guarantees consistent measurement, corrosion-resistant body, RS485 PLC connectivity.

· Scenario 3: Special Vehicles & Mobile Platforms

o Requirements: Vibration/shock-resistant observation platforms for fire trucks, patrol boats, or heavy machinery.

o Solution: Pan & Tilt Unit with shock-absorbing base + stabilized camera.

o Value: Reinforced structure passes MIL-STD-810G vibration tests, IP66 protects against mud/salt spray.

Why Partner With Us for Your Pan Tilt Solutions?

· Industrial-Grade Focus: Dedicated to reliability and precision – no consumer-grade compromises.

· Deep Customization: Flexible payload (5kg-80kg), protocols (Modbus/CAN optional), and mounting configurations.

· Global Deployment: Products operational in Middle Eastern oil fields, Nordic ports, and Southeast Asian smart cities (de-identified technical parameters available).

>> Download Free: Industrial Pan Tilt Positioner Selection Whitepaper
(Includes load calculator, installation guide & protocol compatibility list)

>> Contact us: sales@ziwincctv.com for Customize Your Pan Tilt Positioner Solution.
