CCTV Camera Bracket and Wall Mount Bracket Selection Guide for PTZ and Bullet Cameras

Many customers may ask: How to choose the right CCTV camera bracket? Actually, choosing the suitable CCTV camera bracket is not only an installation detail. It directly affects camera stability, monitoring angle, image quality, maintenance access and long-term system reliability. A high-quality PTZ camera, bullet camera or network speed dome camera can still perform poorly if the bracket is weak, incorrectly positioned or not suitable for outdoor conditions.

For security integrators, installers and project buyers, the bracket should be selected together with the camera type, mounting surface, load capacity, viewing angle, cable route and environmental requirements. This guide explains how to choose a CCTV camera mounting bracket for PTZ and bullet camera projects.

Why CCTV Camera Brackets Matter

CCTV camera bracket is the mechanical support that holds the camera in the correct position. Its job is not simply to "mount the camera on the wall." A good bracket must keep the camera stable during wind, vibration, rotation, zooming and long-term outdoor operation.

For PTZ cameras, bracket stability is especially important because the camera moves horizontally and vertically. Any shaking, loose screws or poor load support can affect preset accuracy, auto-tracking, zoom clarity and night vision performance. For bullet cameras, the bracket determines whether the monitoring angle is correct and whether the camera can cover entrances, corridors, perimeters or vehicle lanes effectively.

A reliable CCTV camera mounting bracket helps with:

• Stable camera positioning

• Better viewing angle

• Reduced vibration and image shaking

• Safer outdoor installation

• Cleaner cable routing

• Easier maintenance

• Longer camera lifespan

• Better PTZ preset and patrol performance

CCTV camera bracket should also be weatherproof, corrosion-resistant and strong enough to support the camera weight under wind load for outdoor or industrial projects.

CCTV Camera Bracket Types: Wall Mount, Pole Mount, Corner Mount and Ceiling Mount

Different installation environments require different bracket types. Choosing the wrong mounting method can create blind spots, unstable images or maintenance problems.

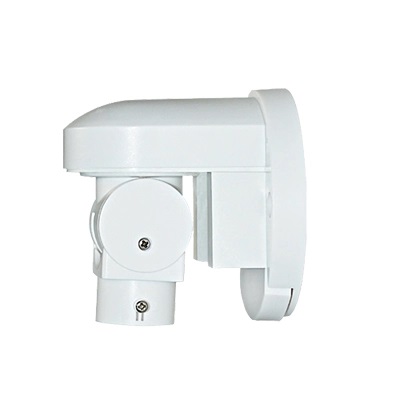

A wall mount camera bracket is one of the most common choices for PTZ and bullet cameras. It is suitable when the camera needs to extend away from the wall for better visibility and less obstruction.

Pole mount brackets are useful for open areas where there is no building wall. Corner mount brackets are practical when one camera needs to cover two directions from an exterior corner. Ceiling brackets are often used for indoor or semi-indoor installations.

ZIWIN also provides motorized rotating camera brackets. These brackets can help ordinary fixed-position network cameras achieve wider panoramic monitoring through controlled horizontal and vertical movement.

How to Choose a Wall Mount Bracket for CCTV Cameras

CCTV wall mount bracket should be selected according to camera weight, installation position, rotation requirement and outdoor environment. Do not choose only by appearance or price.

First, check the camera type. A small bullet camera needs a different bracket from a PTZ camera or a camera IP speed dome. PTZ and speed dome cameras are heavier and may move frequently, so they need stronger support and better anti-vibration performance.

Second, check load capacity. The bracket should support more than the camera's actual weight, especially for outdoor installation. Wind, vibration, ice, cable tension and long-term movement can all increase mechanical stress.

Third, check rotation and adjustment. A fixed bracket may be enough for a bullet camera, but a rotating bracket can provide wider coverage. ZIWIN's RS485 and UART control PT brackets allow horizontal and vertical rotation control, making them suitable for projects where a standard fixed camera needs a larger monitoring range.

Fourth, check environmental protection. For outdoor projects, IP protection, waterproof cable routing and corrosion resistance should be considered. A bracket with poor sealing or weak surface treatment may rust, loosen or allow water to enter the cable connection.

A professional wall mount bracket should match:

• Camera weight and size

• Wall material and installation height

• Required viewing angle

• Pan/tilt or fixed monitoring need

• Indoor or outdoor environment

• Cable routing method

• Waterproof and anti-corrosion requirements

• Maintenance access

• Camera brand and screw hole compatibility

Common Installation Mistakes with CCTV Camera Mounting Brackets

Many CCTV problems are not caused by the camera itself. They come from incorrect bracket selection or installation.

For PTZ cameras and speed dome cameras, a loose bracket can cause more serious problems than a fixed camera installation. It may affect zoom image clarity, tracking accuracy and long-distance monitoring. For bullet cameras, poor bracket positioning can create blind zones or point the camera toward reflective surfaces.

CCTV Camera Bracket Selection Checklist

Before choosing a CCTV camera bracket, use this checklist to reduce installation risk.

For projects where a fixed camera needs wider coverage, a motorized rotating bracket can be a practical solution. For example, ZIWIN's electric rotating brackets support communication control and automatic functions such as preset positions, helping fixed network cameras cover larger areas than a standard static bracket.

FAQs About CCTV Camera Brackets

What is a CCTV camera bracket?

A CCTV camera bracket is a mounting accessory used to fix a camera on a wall, pole, corner, ceiling or other structure. It supports the camera, sets the viewing angle and protects the installation from vibration, movement and environmental stress.

How do I choose a CCTV camera bracket?

Choose a CCTV camera bracket based on camera type, weight, mounting surface, installation height, viewing angle, outdoor protection, cable routing and maintenance access. For PTZ cameras, load capacity and anti-vibration strength are especially important.

What is the best wall mount bracket for CCTV cameras?

The best wall mount camera bracket should match the camera's weight, mounting hole pattern, outdoor environment and required viewing direction. For PTZ and speed dome cameras, a stronger wall bracket with secure cable routing is recommended.

What is the difference between a CCTV wall mount bracket and a pole mount bracket?

A CCTV wall mount bracket is installed on a flat wall, while a pole mount bracket is installed around a pole or column using clamps or mounting plates. Wall mounts are common for buildings, while pole mounts are better for roads, parking lots and perimeter areas.

Do outdoor CCTV brackets need waterproof protection?

Yes. Outdoor CCTV brackets should support waterproof cable routing, corrosion resistance and stable installation. For outdoor projects, the camera and bracket should be selected together to avoid water intrusion, rust, vibration or loose mounting.

Why does my CCTV camera shake after installation?

Camera shaking is usually caused by a weak bracket, loose screws, unstable mounting surface, wind load or poor pole structure. PTZ cameras and speed dome cameras need stronger brackets because movement and zoom make vibration more visible.

Can ZIWIN help choose a CCTV camera mounting bracket?

Yes. ZIWIN provides camera bracket solutions for different CCTV and PTZ camera applications, including RS485 control PT brackets, UART control PT brackets and UART control wall mount PT brackets. Buyers can send camera type, weight, installation location and control requirements for model selection support.

Conclusion

A CCTV camera bracket is a small component, but it has a major impact on surveillance performance. The right CCTV mount bracket improves camera stability, viewing angle, cable protection, maintenance convenience and outdoor reliability.

For PTZ cameras, bullet cameras, speed dome cameras and fixed network cameras, buyers should compare load capacity, mounting type, control method, waterproof protection and installation environment before making a decision.

ZIWIN provides CCTV camera bracket and motorized rotating bracket solutions for security projects where stable installation, wider coverage and reliable outdoor performance are required. If you need help choosing a CCTV camera mounting bracket for your project, ZIWIN can recommend a suitable solution based on your camera model, installation site and monitoring requirements.

We are committed to providing you best CCTV camera mounting brackets to meet your project needs. Welcome to contact us!
