How to Choose the Best Long Range PTZ Camera (2–6 km) for Professional Surveillance

Introduction

Selecting the right long range PTZ camera is more than just checking how far it can see — it’s about how clearly it can identify and track targets under varying conditions: daylight, darkness, fog, heat, and sand.
ZIWIN’s Long Range Laser Night Vision PTZ Camera Series is built for professional outdoor surveillance, delivering stable imaging and precision control over long distances. The lineup includes 2 km, 3 km, 4 km, and 6 km range models, each optimized for specific environments such as coastlines, deserts, borders, or industrial zones.

What Defines a Long Range Network PTZ Camera

A true long range PTZ camera combines advanced components engineered for reliability and performance:
- High-magnification telephoto lenses for long-distance observation
- Laser night vision modules with precision beam control
- Servo-driven heavy-duty pan-tilt systems for smooth, 360° rotation
- Network-based control and ONVIF integration for real-time remote management
These systems are used worldwide for coastal defense, border security, oilfield monitoring, seaport operations, and forest fire detection — any application requiring wide-area 24/7 visibility.

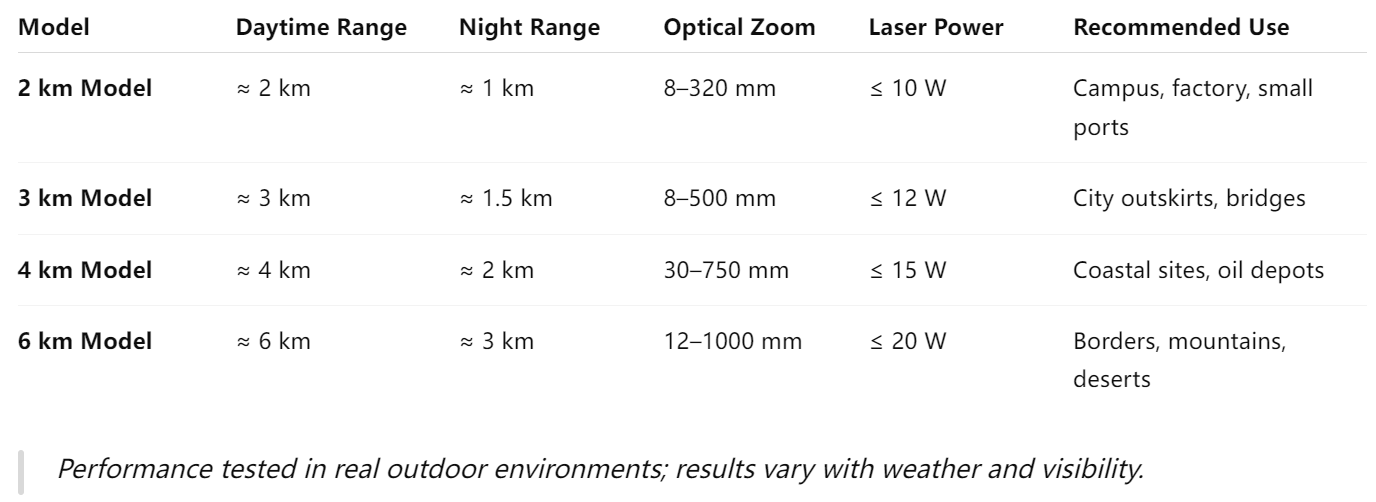

Distance and Performance Comparison

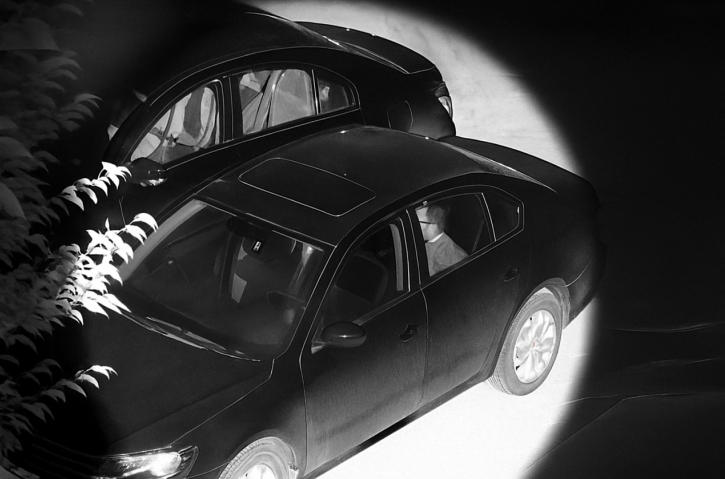

ZIWIN’s Laser Night Vision Technology

2 km Model — Compact and Efficient

The 2 km PTZ camera is a compact, efficient solution for medium-distance monitoring. It offers 1080P HD imaging, fast zoom, and stable pan-tilt movement within a small footprint.
Applications: campus security, airports, and industrial perimeters.
Highlights: lightweight design, low power draw, quick installation.

3 km Model — Balanced Range and Cost

The 3 km PTZ version offers enhanced laser power and longer focal length, balancing visibility and affordability.
Its dual cable output allows easy installation on towers or rooftops.
Applications: bridge monitoring, city infrastructure, and construction sites.
Highlights: IP66-rated aluminum housing, continuous 360° rotation, low-noise motion.

4 km Model — Industrial-Grade Surveillance

Built for harsh conditions, the 4 km camera uses a 30–750 mm lens and 15 W laser for superior clarity beyond 2 km. The system’s heavy-duty PTU ensures stability even under high wind and vibration.
Applications: coastal watch, oil facilities, large ports, or energy infrastructure.
Optional upgrades: dual-spectrum (thermal + laser) module for target tracking.

6 km Model — Maximum Range and Stability

The 6 km long range PTZ camera represents ZIWIN’s flagship solution. It integrates a 12–1000 mm super-telephoto lens, reinforced servo motors, and anti-corrosion coating.
Applications: border defense, maritime monitoring, mountain surveillance.
Highlights: high wind resistance, precise position feedback, eye-safe laser illumination.

Key Considerations When Selecting a Long Range PTZ

1. Identification Level Required
   - Detection: track movement at 4–6 km
   - Recognition: classify target at 2–3 km
   - Identification: read details within 1 km
2. Environment
   - Fog, humidity, or sandstorms can reduce range by 30–50%.
   - For coastal or desert areas, choose high-power laser models.

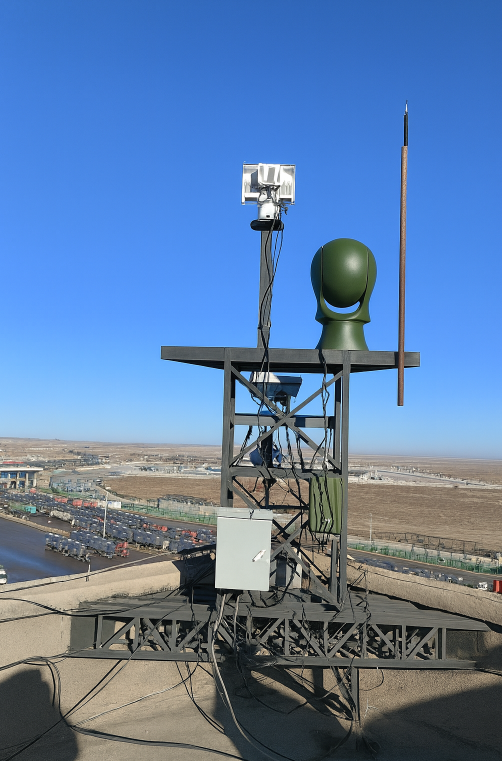

3. Installation Stability
   - Use rigid towers or poles with vibration damping.
   - Heavy-duty PTUs improve image stability at long zoom levels.
4. Power & Network
   - Supports 24V DC, AC220V, or PoE.
   - Optional solar or 4G/5G network kits for remote sites.

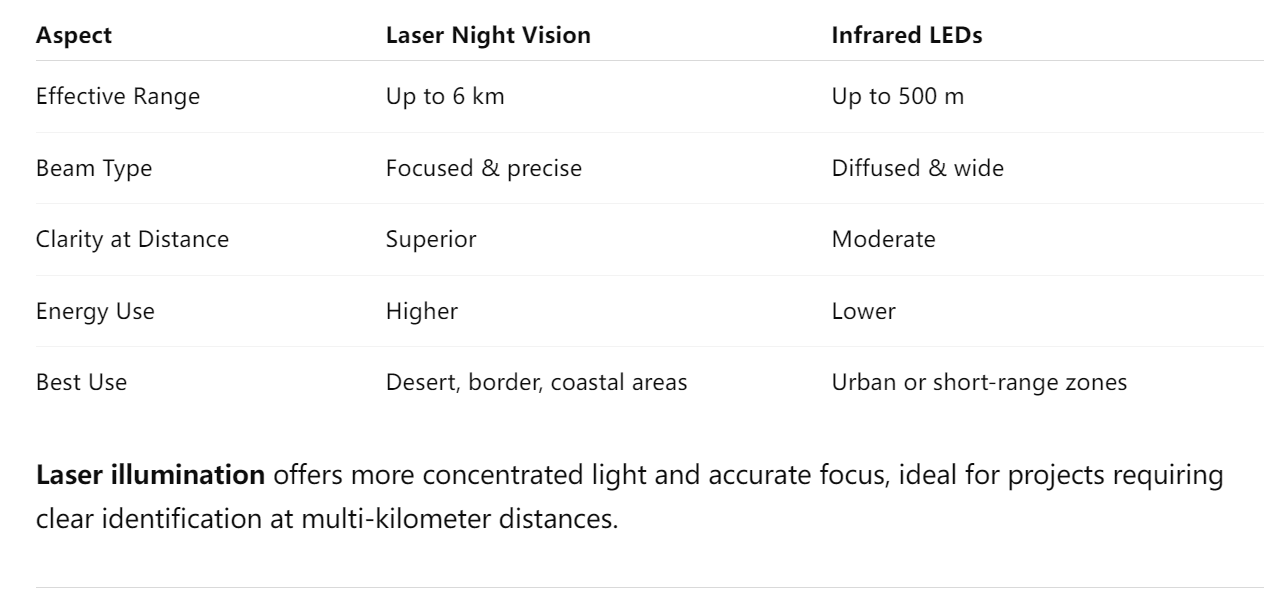

Laser vs Infrared Illumination

Laser Night Vision vs Infrared LEDs comparison:

Integration and Reliability

ZIWIN long range PTZ cameras are built for system integration and continuous operation:
- Support for ONVIF Profile S/T, RTSP streaming, SDK control
- Compatible with radar, AI video analytics, and tracking systems
- Tested for vibration, salt-fog, and temperature endurance

Global Applications

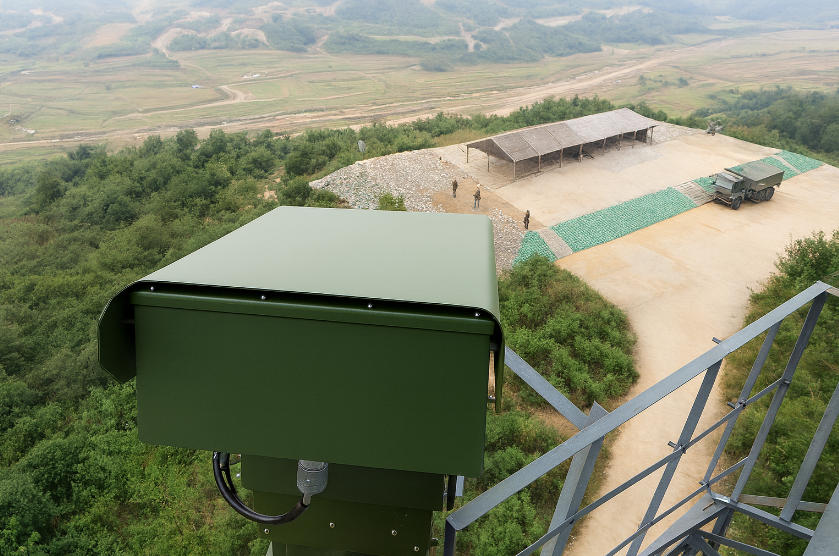

ZIWIN’s cameras are deployed in challenging environments:
- Middle East: desert pipelines, oilfields, borders (Saudi Arabia, Oman, UAE)
- Southeast Asia: coastal ports and tropics (Indonesia, Malaysia, Philippines)
- Africa: mining and defense (Kenya, Nigeria, South Africa)
- Europe: forest fire monitoring, coastal defense (Norway, Finland)

Why Choose ZIWIN

- Precision servo pan-tilt engineering for ultra-stable motion
- Rugged IP66 design for long-term outdoor deployment
- Custom optics optimized for visible-light and laser imaging
- Integration-ready with multiple protocols and connectors
- OEM/ODM support for system integrators and defense projects

Summary & Call to Action

Each surveillance project demands a specific viewing distance and environmental resilience.
ZIWIN’s 2 km–6 km Long Range Laser Night Vision PTZ Cameras cover all ranges — from compact security setups to heavy-duty industrial systems.
Ready to upgrade your long-range surveillance?
Contact us: sales@ziwincctv.com
Explore the full series: https://www.ziwincctv.com/products/long-range-laser-night-vision-ptz-camera/
