How Slip Rings Enhance Pan Tilt Units for Radar Integration

Introduction

Modern radar systems demand continuous 360° rotation, real-time data transmission, and absolute reliability under harsh outdoor conditions. For system integrators working in coastal surveillance, border defense, and maritime radar applications, one key challenge lies in maintaining uninterrupted power and signal transmission while the radar sensor rotates endlessly. This is exactly where slip rings become essential — the hidden component that transforms an ordinary pan tilt unit (PTU) into a truly intelligent, continuous-rotation radar platform.

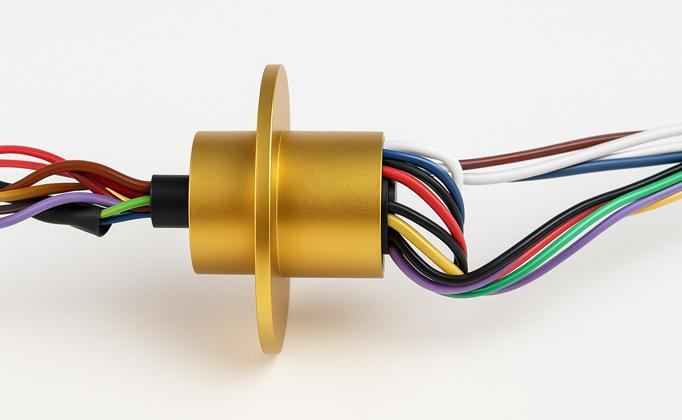

What Is a Slip Ring and Why It Matters

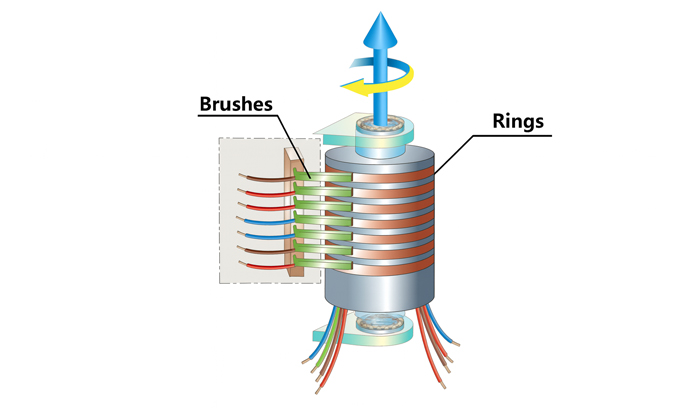

A slip ring is an electromechanical device that enables the transfer of power, control signals, and data between stationary and rotating parts. Inside a pan tilt unit, it sits between the rotary base and the fixed housing, allowing the head to rotate freely without twisting or damaging internal cables.

Without a slip ring, a PTU can only rotate within ±180°. With a slip ring, it can rotate 360° continuously — a vital feature for radar systems that need constant scanning coverage.

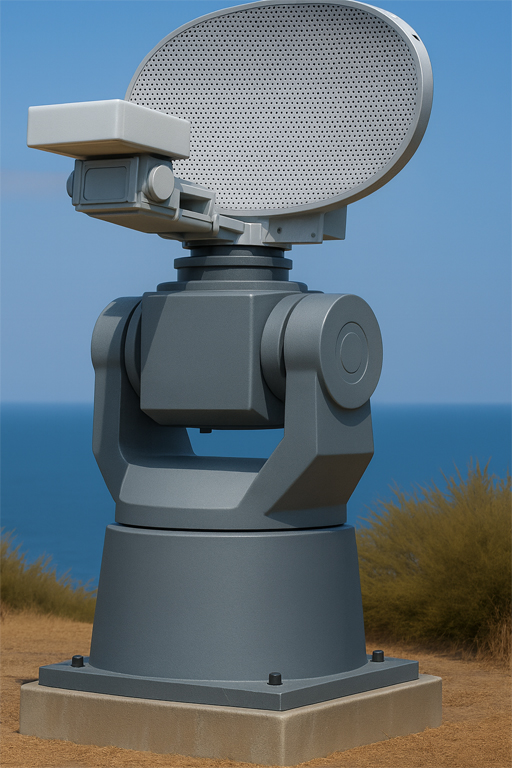

The Role of Slip Rings in Radar Pan Tilt Units

In radar applications, the PTU often carries high-frequency radar transceivers, antennas, data transmission modules, and amplifiers. These devices require stable DC power, Ethernet, CAN bus, or even RF signal lines to run through the rotating joint. A high-quality slip ring ensures stable power, low-loss signal transfer, and long-term reliability.

Benefits of Slip Ring Integration

Real-World Applications

• Coastal and Harbor Surveillance – Middle East

• Border Control – Europe

• Oil Pipeline Monitoring – Asia

• UAV Tracking and Antenna Systems – Global

Choosing the Right Slip Ring for Your Radar PTU

When selecting a PTU for radar integration, key parameters of the slip ring include:

• Power capacity (W or A)

• Number of channels for signal, control, and power lines

• Signal type – Ethernet, RS485, CAN, RF, etc.

• IP rating – IP66 or higher for outdoor use

• Operating temperature range – from -45°C to +60°C for extreme conditions

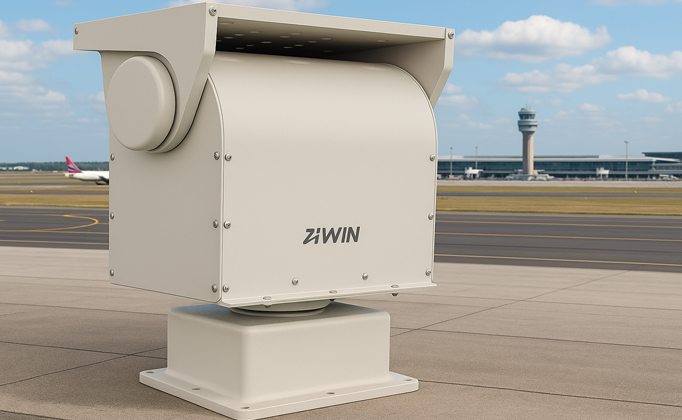

ZIWIN's Heavy-Duty 120 kg Pan Tilt Unit Slip Ring Capability

ZIWIN Technology designs and manufactures heavy-duty pan tilt units capable of supporting payloads up to 120 kg, specially built for radar, antenna, and electro-optical systems operating in harsh outdoor environments.

To meet the demands of high-power radar systems and long-range surveillance applications, ZIWIN integrates custom high-current slip ring assemblies that can handle both power and signal transmission with exceptional reliability.

The slip ring inside ZIWIN's 120 kg PTU supports a maximum power delivery of up to 3 kW to the top-mounted equipment, providing stable operation for energy-intensive devices such as:

• High-power radar transceivers

• Long-range laser emitters

• Thermal and optical dual-sensor payloads

• Mobile ground or maritime surveillance systems

Each high-current slip ring is engineered with:

• Gold-to-gold contact interfaces for low resistance and minimal noise

• Optimized heat dissipation to ensure continuous 24/7 operation

• Customizable channel configurations combining power, Ethernet, control, and data lines

This design makes ZIWIN's 120 kg heavy-duty PTU one of the most capable solutions on the market — achieving the perfect balance of mechanical precision, electrical efficiency, and integration flexibility for advanced radar and defense applications.

FAQ

• Q: Why is a slip ring essential for radar PTUs?

A: Because radar antennas require continuous rotation. A slip ring prevents cable twisting and ensures uninterrupted power and signal transmission.

• Q: What's the difference between a standard PTU and a slip-ring PTU?

A: A standard PTU rotates within ±180°, while a slip-ring PTU supports endless 360° rotation.

• Q: Can slip rings handle high-speed data?

A: Yes, modern slip rings support Gigabit Ethernet, CAN, or RF channels with minimal signal loss.

• Q: Are ZIWIN PTUs suitable for maritime and desert environments?

A: Absolutely. ZIWIN PTUs feature IP66 protection, corrosion-resistant housing, and wide-temperature design (-45°C to +60°C).

Conclusion

Slip rings may be invisible, but they are the key enabler of 360° radar performance. By integrating advanced slip ring technology, ZIWIN heavy-duty pan tilt units deliver stable power, seamless data transfer, and long-term reliability — ensuring radar systems stay online, accurate, and operational in the toughest environments.

Contact ZIWIN Technology to learn more about custom pan tilt platforms for radar, antenna, and electro-optical integration. sales@ziwincctv.com
