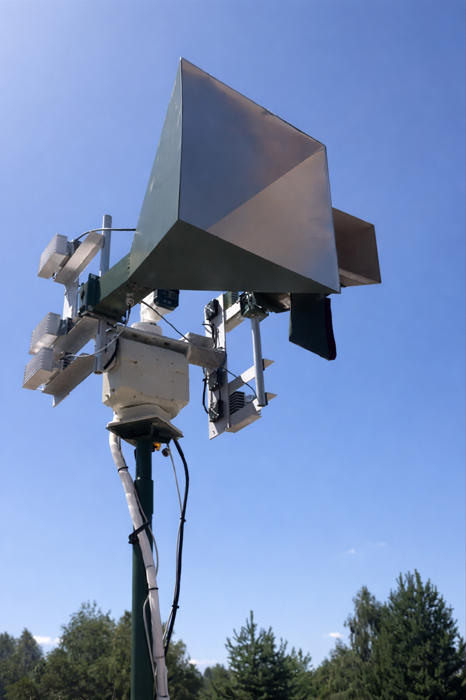

How to Choose a Pan Tilt Platform for Directional Antennas in Counter-Drone Systems

Introduction

As unmanned aerial vehicles (UAVs) become more affordable and easier to operate, unauthorized drone activity has expanded from occasional nuisance incidents to a persistent security and safety concern. Airports, ports, oil and gas sites, power plants, government facilities, and industrial campuses increasingly require early detection and situational awareness for low-altitude drones, often beyond the practical range of purely visual surveillance.

For many programs, radio frequency (RF) monitoring and direction-finding (DF) approaches are a practical foundation for airspace awareness. Instead of relying only on line-of-sight cameras, RF monitoring systems can detect and characterize drone-related signals, estimate bearing, and help operators understand where a drone is likely located and how it is being controlled.

Directional antennas are central to these RF monitoring and DF architectures. However, a directional antenna only delivers its theoretical gain and angular resolution when it is pointed accurately and held stable over time. That is why the mechanical layer—specifically the pan tilt platform that positions the antenna in azimuth and elevation—can become a decisive factor in real-world performance.

This buyer-focused guide explains how to choose a pan tilt platform for directional antennas in counter-drone systems. The emphasis is on engineering realities: total installed payload, accuracy and repeatability, wind load resistance, outdoor durability, integration with control software, and lifecycle maintenance.

Why Pan Tilt Platforms Matter in Counter-Drone RF Monitoring

Directional antennas provide high gain and a relatively narrow beamwidth to improve sensitivity and bearing estimation. In practice, their performance depends on precise mechanical orientation. Small errors or drift can reduce directional selectivity, introduce uncertainty in direction finding, and cause coverage gaps during scanning.

Counter-drone RF monitoring is often continuous and unattended. Platforms may be mounted on poles, towers, rooftops, or coastal structures where wind, vibration, humidity, and temperature cycling are unavoidable. If the positioning platform develops backlash, slips under load, or slowly drifts when holding a fixed angle, the system may still appear functional—but its detection confidence and tracking accuracy will degrade.

A properly selected pan tilt platform helps deliver three things that RF teams care about: (1) stable antenna pointing under environmental stress, (2) repeatable presets for scanning and calibration routines, and (3) reliable operation with minimal maintenance across long deployment cycles.

Key Factors When Choosing a Pan Tilt Platform

1. Define the Total Installed Payload (Not Just the Antenna Weight)

The most common selection mistake is using only the antenna’s nominal weight. In the field, the platform carries a complete antenna assembly. Total installed payload typically includes the antenna, mounting brackets, adapter plates, cable management hardware, RF cables and connectors, optional protective enclosures (such as a radome), and any reinforcement parts added to reduce vibration.

For medium to large directional antenna systems used in RF monitoring, it is common for the total installed payload to approach 40–50 kg once all mechanical and cabling components are included. The exact number varies by frequency band, antenna style (log-periodic, Yagi arrays, panel antennas, DF arrays), and mounting method, but the system-level payload is what the pan tilt platform must support continuously.

Best practice is to select a platform with a safety margin of at least 20–30% above the installed payload. This margin is not about marketing; it reduces long-term stress on motors, gears, bearings, and structural elements, especially when the antenna must hold position against wind torque for extended periods.

2. Evaluate Center of Gravity and Moment Load

Payload rating alone is not enough. Directional antennas can be long, wide, or mounted with an offset, which shifts the center of gravity (CoG). The further the CoG is from the rotation axis, the higher the required torque to start, stop, and hold the antenna at a fixed elevation angle.

When comparing platforms, consider whether the manufacturer provides guidance on allowable CoG offsets or moment load. A platform may handle a given weight when the CoG is close to the axis, but struggle when the same weight is mounted farther out. For pole-top installations and larger antennas, moment capacity can be as important as the headline payload number.

3. Positioning Accuracy, Preset Repeatability, and Backlash

Counter-drone RF monitoring systems commonly use scanning patterns and presets. Presets might include predefined bearings to cover key corridors, known approach vectors, or calibration directions used to validate DF performance. In these workflows, repeatability matters as much as absolute accuracy.

Look for a platform that provides high preset positioning accuracy (often around ±0.1° or better for demanding applications) and stable repeatability when returning to the same azimuth and elevation angles. Backlash—small gaps in gear engagement—can cause overshoot, settle-back, or inconsistent final pointing. Over time, backlash can increase due to wear, especially under wind load and frequent directional reversals.

If your system relies on bearing estimation and consistent pointing, prioritize platforms designed for precise mechanical positioning, with robust transmission design and feedback control appropriate for repeatable motion.

4. Holding Torque and Wind Load Resistance

Wind is often the dominant real-world factor for antenna positioning platforms. Directional antennas present a significant surface area, and wind load translates into torque that can push the antenna off its intended heading. This is especially critical on towers and rooftops where wind speeds and turbulence are higher.

To select appropriately, evaluate not only motion speed but also holding capability. A platform must resist wind-induced movement when holding a fixed angle for monitoring. Rigid structural construction, strong torque output, and stable braking or holding design help prevent drift. In some deployments, the antenna may remain pointed at a fixed sector for long durations; holding stability is therefore a performance requirement, not a convenience feature.

If available, review wind load specifications, recommended antenna areas, and installation guidance (such as maximum pole height, mount stiffness, and reinforcement recommendations). Even a high-accuracy platform can perform poorly if the mounting structure flexes excessively.

5. Outdoor Durability: Corrosion, Sealing, and Climate

Counter-drone deployments are frequently outdoors, including coastal regions, ports, tropical climates, deserts, and industrial sites with dust and pollutants. The pan tilt platform should be designed for long-term exposure, not occasional outdoor use.

Key durability considerations include corrosion protection, weather-resistant housing, sealed mechanical components, and a wide operating temperature range. In tropical environments, humidity and frequent rain cycles can accelerate corrosion and affect unsealed components. In coastal zones, salt spray is a major reliability driver. For remote installations, reliability and sealing are often more important than maximum speed.

Also consider cable routing and connector protection. Poor cable management can introduce additional mechanical load, increase wear, and create water ingress points that degrade reliability over time.

6. Control Interfaces and System Integration

A pan tilt platform used in a counter-drone RF monitoring system must integrate with the overall control architecture. Typical requirements include remote control via serial or network interfaces, support for preset positions, and compatibility with automated scanning routines.

From a system perspective, the platform’s responsiveness and pointing stability affect how well the RF monitoring software can correlate antenna orientation with RF measurements. For example, if the platform lags commands or settles inconsistently, the software may associate signals with incorrect angles, reducing DF accuracy.

Integration planning should include how the platform is commanded (manual control, scheduled scans, event-driven pointing), how presets are stored, and how the system verifies position (feedback, status reporting, or calibration routines).

7. Reliability, Maintenance, and Total Cost of Ownership

Many counter-drone monitoring sites operate continuously and may be difficult to access. In these cases, maintenance trips are expensive and downtime is unacceptable. Selecting a mechanically robust platform with proven reliability reduces maintenance frequency and improves total cost of ownership (TCO).

When comparing options, consider spare parts availability, long-term technical support, and serviceability. A lower upfront price may become costly if the platform requires frequent adjustment, replacement, or on-site repairs. For mission-critical monitoring, proven mechanical stability often outweighs feature lists that add complexity without improving core performance.

Common Mistakes to Avoid

System integrators can reduce risk by avoiding a few recurring mistakes: selecting solely based on price, underestimating wind load, choosing a light-duty camera PTZ unit that is not designed for antenna payloads, and ignoring center-of-gravity and moment load effects.

Another common mistake is treating positioning accuracy as optional. In RF monitoring and DF workflows, poor repeatability can degrade directional confidence even if detection still occurs. Finally, do not overlook long-term support. Counter-drone programs often evolve, and platforms that can be maintained and supported over years are a safer choice.

Compliance and Lawful Use Statement

Pan tilt platforms are purely mechanical positioning devices. They do not perform RF transmission, interference, jamming, or drone neutralization functions. In counter-drone systems, these platforms support lawful applications such as RF signal monitoring, direction finding, and airspace awareness integration. All deployments must comply with applicable local regulations and legal requirements.

Conclusion

Choosing the right pan tilt platform is a critical step in building reliable counter-drone RF monitoring systems. By evaluating total installed payload, center of gravity and moment load, positioning accuracy and repeatability, holding stability under wind load, outdoor durability, and integration requirements, security leaders and system integrators can reduce risk and improve long-term performance.

A well-designed pan tilt platform provides the mechanical foundation that allows directional antennas and RF monitoring software to operate at their full potential—delivering consistent coverage, dependable presets, and reliable operation in demanding outdoor environments.
