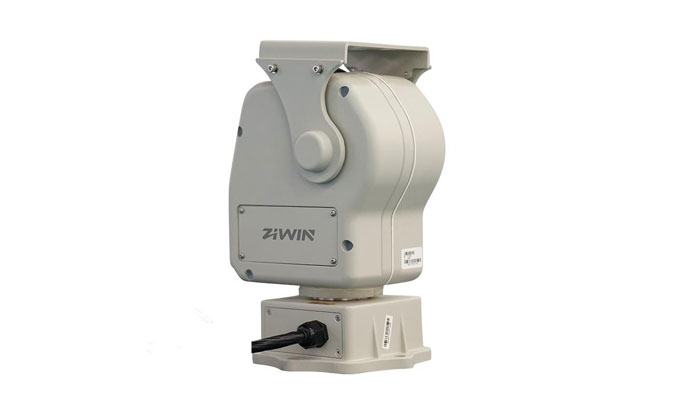

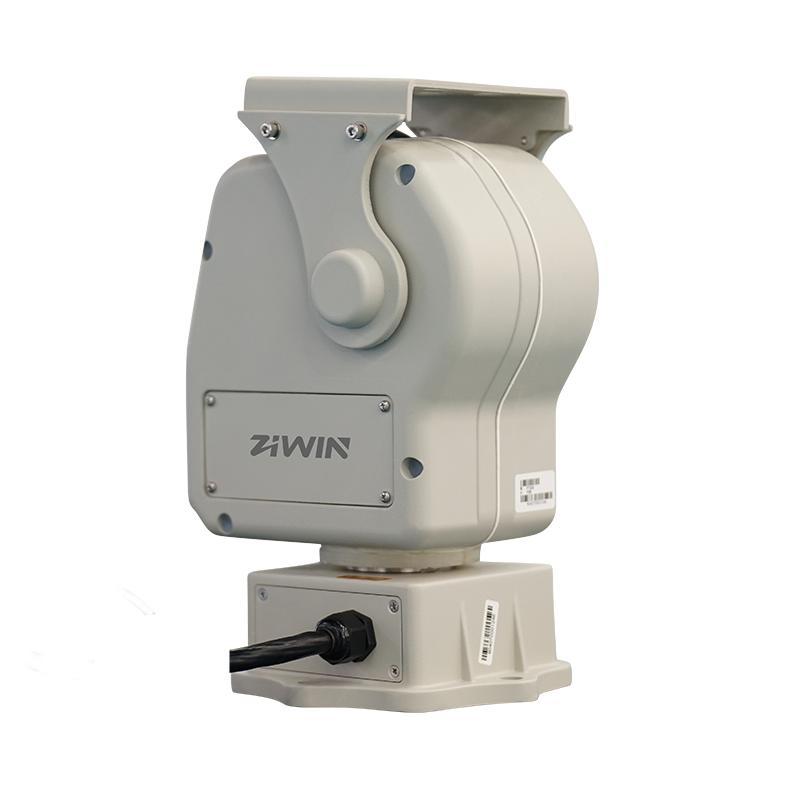

Comprehensive Guide to Pan Tilt Unit Load Capacity: Choose Light, Medium, or Heavy Duty PTUs for Stable and Efficient Surveillance

At the heart of security surveillance systems, the pan tilt unit (PTU) serves as the "flexible joint" of any project, ensuring smooth camera movement and precise positioning. The core performance metrics of a PTU directly determine whether cameras can operate stably in harsh environments. Among these, load capacity stands as one of the most critical factors. Based on weight limits and application scenarios, PTUs are categorized into three main classes:

Light Duty Pan Tilt Unit, Medium Duty Pan Tilt Unit, and Heavy Duty Pan Tilt Unit. Understanding these distinctions is fundamental to building efficient, stable, and cost-effective surveillance systems.

Light Duty Pan Tilt Unit: Agile and Compact, Maximizing Small-Scale Scenes

· Load Capacity: Designed for cameras and housing assemblies under 10 kg (22 lbs), typically ranging from 3 kg to 10 kg.

· Key Features:

o Compact Design: Small size, lightweight, easy installation, minimal structural support required.

o Rapid Response: Moderate motor power enables quick start/stop transitions and speed adjustments, ideal for fast-tracking scenarios.

o Cost-Effective: Lower manufacturing costs, high value for money.

· Typical Applications:

o Small/Medium Indoor Spaces: Offices, conference rooms, retail stores, compact warehouses, school corridors.

o Lightweight Cameras: Standard dome cameras, compact bullet cameras, lightweight PTZ domes (without heavy housings).

o High-Speed Monitoring Points: Entryways, cashier counters, or areas requiring rapid motion tracking.

· Technical Specifications:

o Housing: Aluminum alloy or high-strength engineering plastics.

o Movement: 360° continuous pan rotation; -90° to +90° tilt range.

o Protocols: Supports Pelco-D/P, ONVIF.

o Protection: IP66 rating for indoor/standard outdoor use.

· Selection Advice: Choose a Light Duty Pan Tilt Unit when your camera (with housing) weighs ≤10 kg, and the environment lacks extreme conditions (e.g., strong winds, heavy vibrations).

Medium Duty Pan Tilt Unit: Robust Performer for Versatile Applications

· Load Capacity: Handles 15 kg to 30 kg (33–66 lbs), making it the industry’s most widely used type.

· Key Features:

o Balanced Performance: Optimal equilibrium between load capacity, speed, structural strength, and cost.

o Broad Adaptability: Suitable for most commercial, industrial, and demanding outdoor environments.

o Reliable Stability: Reinforced construction and higher-torque motors ensure smooth operation and wind resistance.

· Typical Applications:

o Large Indoor/Outdoor Sites: Factory floors, logistics hubs, parking lots, shopping malls, campus perimeters, sports venues, mid-sized ports.

o Mainstream Camera Loads: Full-size PTZ domes, heavy-duty bullet cameras (with housings and telephoto lenses), mid-weight thermal cameras, or cameras with laser/IR illuminators.

o Wind-Exposed Outdoor Points: Building facades, plazas, medium-height poles.

· Technical Specifications:

o Housing: High-strength die-cast aluminum or steel.

o Wind Resistance: Level 8 (20 m/s) with precision bearings and durable transmissions.

o Protection: IP67 rating, anti-corrosion coatings (anodizing/spraying).

o Smart Features: Presets, patrol scans, pattern scanning.

o Accessories: Optional heaters/fans, wipers.

· Selection Advice: Opt for a Medium Duty Pan Tilt Unit for loads between 15–30 kg or in complex environments (dust, rain, salt spray). It reliably supports mainstream PTZ and heavy bullet cameras.

Heavy Duty Pan Tilt Unit: Industrial Titan for Extreme Conditions

· Load Capacity: Engineered for 50+ kg (110+ lbs), extendable to 200–300 kg or more.

· Key Features:

o Ultimate Durability: Military-grade steel/alloy construction and industrial design.

o High-Torque Power: Large motors enable precise movement under extreme loads/winds.

o Exceptional Stability: Superior resistance to wind, vibrations, and shocks.

o Customization: Tailored to specific load profiles (weight, size, center of gravity).

· Typical Applications:

o Critical Infrastructure: Port cranes, oil tanks, refineries, power plants (cooling towers/boilers), bridge monitoring.

o Specialized Payloads: Electro-optical payloads (HD cameras + thermal sensors + laser rangefinders), super-telephoto systems, radar arrays.

o Extreme Environments: Coastlines, deserts, Arctic/Alpine sites, corrosive zones (chemical plants/offshore rigs), high-vibration areas.

o Long-Range Surveillance: Sites requiring multi-km visibility with ultra-telephoto lenses.

· Technical Specifications:

o Construction: Reinforced shafts/gears with industrial/military specifications.

o Wind Resistance: >Level 12 (36 m/s), active stabilization options.

o Protection: IP68/IP69K, anti-corrosion (heavy-duty coatings/stainless steel).

o Precision: Absolute encoders for ±0.05° repeatability.

o Connectivity: Aviation-grade connectors.

o Installation: Requires heavy-duty poles/structural supports.

· Selection Advice: Select a Heavy Duty Pan Tilt Unit for loads >50 kg or in ultra-harsh conditions (gale-force winds, seismic activity, corrosion). Custom design consultations are essential.

Key Selection Criteria: Matching PTUs to Your Needs

1. Accurate Weight Measurement:
Weigh all components—camera, lens, housing, IR/laser lights, wipers, heaters.

2. Environment Assessment:

o Wind: Match PTU’s wind rating to site exposure (e.g., coastal/high-rise areas).

o Climate: Temperature extremes, precipitation, corrosion, dust (dictates IP/anti-corrosion specs).

o Vibrations: Proximity to machinery/traffic (heavy-duty PTUs offer superior shock absorption).

3. Dynamic Performance:

o Speed: Light-duty PTUs excel in fast-tracking; heavy-duty models prioritize stability.

o Accuracy: Medium/heavy-duty PTUs deliver higher precision for presets.

4. Mounting Surface:
Ensure poles/walls/structures can handle PTU + payload + wind loads. Heavy-duty units need reinforced bases.

5. Future-Proofing:
Choose a PTU with 20–30% load margin for potential camera upgrades.

6. Brand & Support:
Partner with trusted manufacturers (e.g., ZIWIN TECHNOLOGY) for expert guidance and service.

Conclusion: Precision Matching Ensures Value

Light Duty Pan Tilt Unit, Medium Duty Pan Tilt Unit, and Heavy Duty Pan Tilt Unit represent specialized solutions—not mere tiers. Selecting the right PTU class is critical to system reliability and performance. As an industry-leading security manufacturer, ZIWIN TECHNOLOGY delivers full-range PTUs engineered to strict standards, rigorously tested for load endurance and environmental resilience.

Choose ZIWIN for:
✅ Precision Matching: Expert engineers tailor solutions to your load/environment.
✅ Premium Quality: Robust materials, precision manufacturing, long-term stability.
✅ Comprehensive Support: Global technical service and warranty coverage.
✅ Optimized Surveillance: Steady camera movement for shake-free, wide-area monitoring.

Contact us today at sales@ziwincctv.com for PTU selection guides and product catalogs! Let us equip your critical sites with the ultimate "guardian arm."
