ZIWIN ZN-TVC6511 60x PTZ Camera Secures Polish Wind Farm

(Multi-Spectral Intelligent Monitoring System in Action)

Project Background

Customer Challenges

A 50MW onshore wind farm in Poland faced:

• Extreme temperatures (-30℃ to +40℃)

• Simultaneous need for turbine health monitoring and perimeter security

• Legacy systems incapable of long-range observation with intelligent analytics

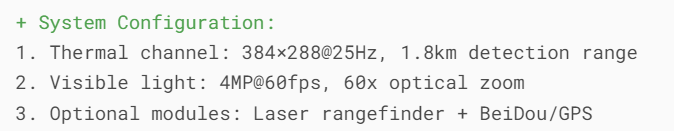

Solution

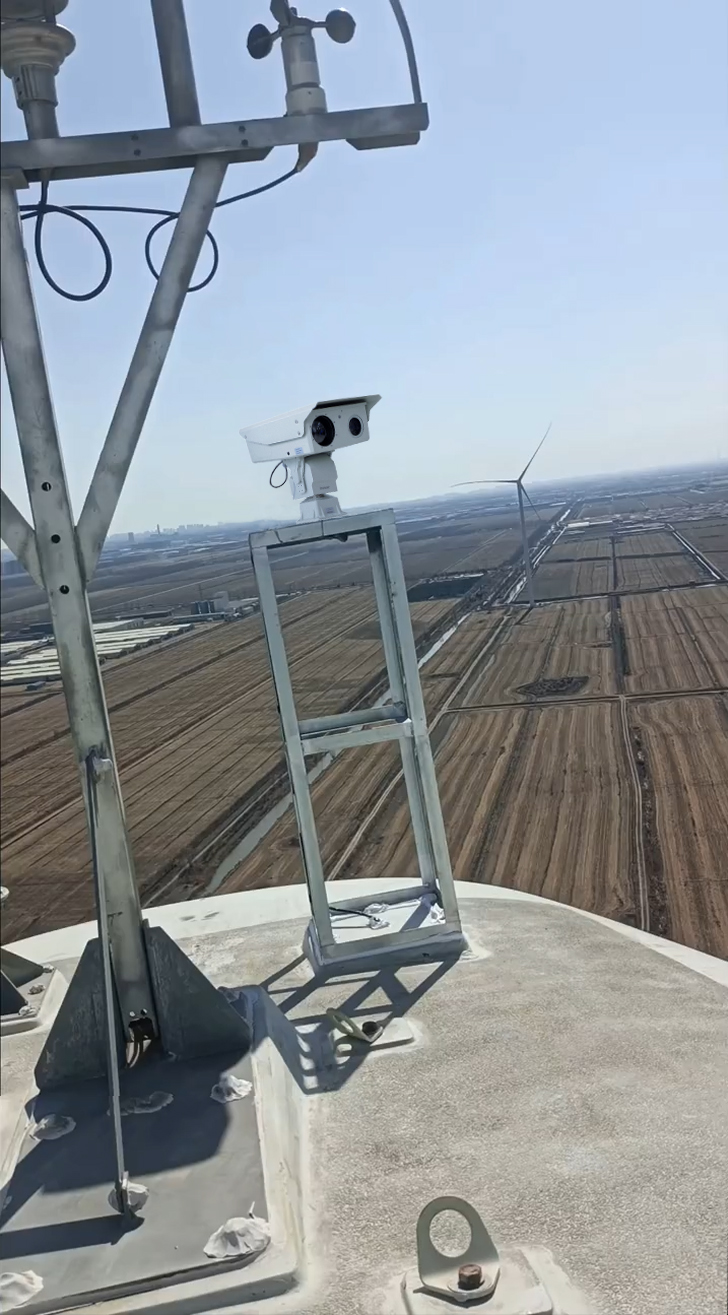

Deployed 6 ZIWIN ZN-TVC6511 Multi-Band Cameras to form a comprehensive monitoring network:

Core Technical Advantages

1. Multi-Spectral Synergy

• Auto day/night switching in <0.3s

• Thermal imaging identifies humans at 500m in fog (field-tested)

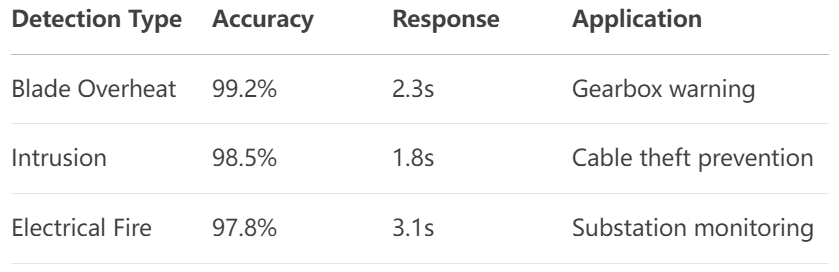

2. Wind Farm-Specific AI Algorithms

3. Heavy-Duty PTZ Performance

• 0.01° positioning accuracy under 15kg load

• <3 pixel deviation in 12-level winds (vs. industry avg. 15px)




2024 Performance Data

Key Metrics:

• MTBF: >8,000 hours

• AI alert accuracy: 98.3% (industry avg. 89%)

• Cold start success: 100% at -30℃

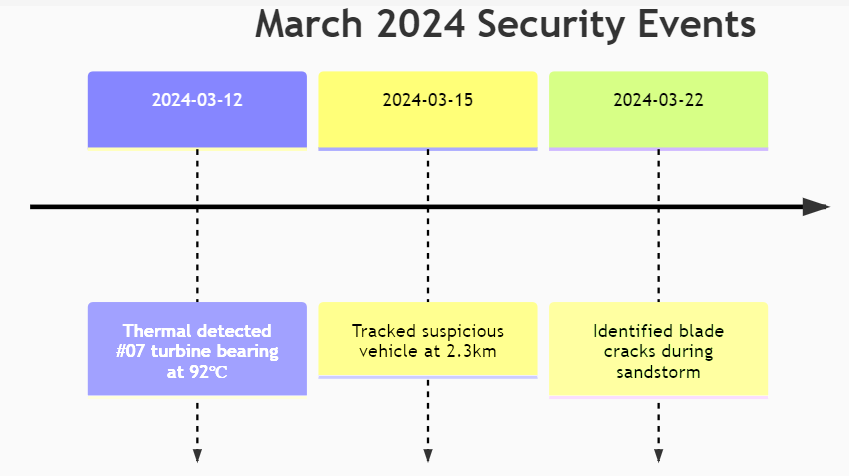

Notable Events:

Client Testimonial

"The 6th-gen thermal imaging exceeded expectations. Its uncooled detector maintains 0.05℃ sensitivity at -25℃, revealing oil temperature anomalies missed by manual inspections."
— Wind Farm Technical Director

Wind Industry Customizations

Expandable Functions:

• SCADA integration (OPC UA protocol)

• Polish voice alarm module (optional)

• IEC 61400-25 compliant




Maintenance Advantages:

• Modular design: Lens/heater/mainboard quick replacement

• Self-diagnosis predicts >90% failure types
