Why Choose a Single-Axis Positioner Instead of a Traditional Pan-Tilt Unit?

Introduction

When designing rotation systems for cameras, sensors, or measurement equipment, engineers often default to the traditional Pan-Tilt Unit. However, in many applications, only one direction of motion is required — such as antenna rotation, LiDAR tilt adjustment, or optical tracking. In these cases, a Single-Axis Positioner provides a lighter, more reliable, and more cost-effective solution. This article explains why focusing on a single axis can deliver higher reliability and better performance.

1. What Is a Single-Axis Positioner?

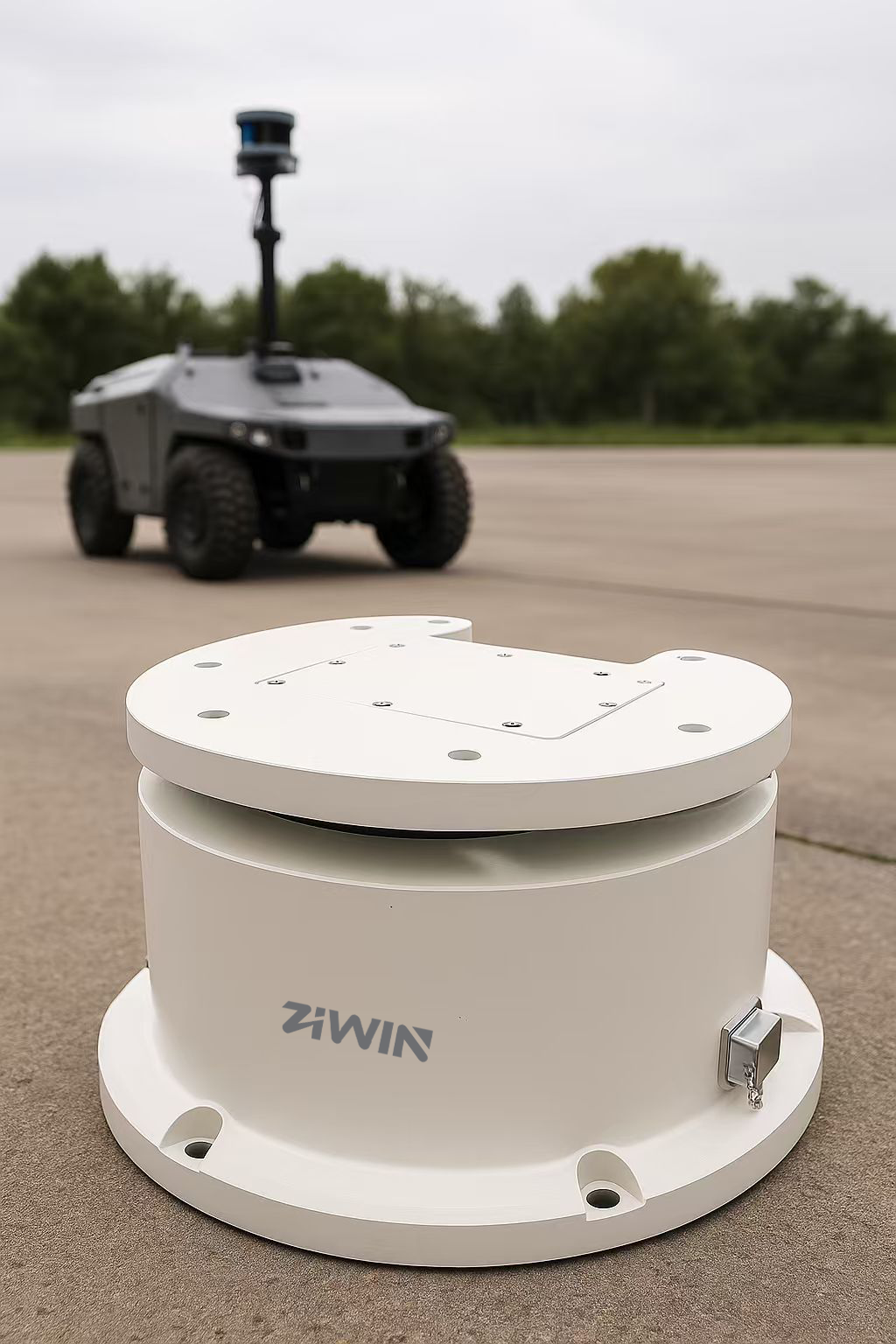

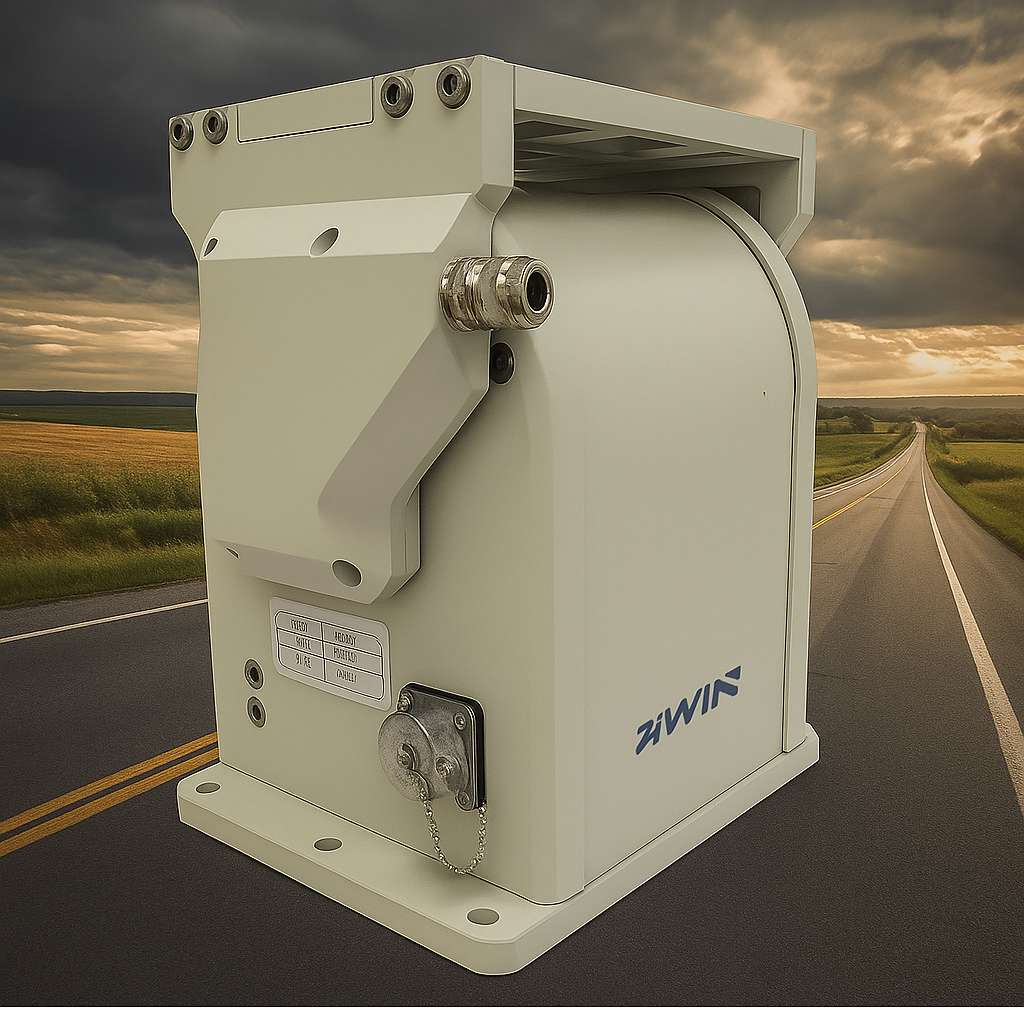

A Single-Axis Positioner is a precision motion platform designed to rotate along only one axis — horizontal or vertical. It's widely used in applications that require one-dimensional motion, such as laser rangefinders, antenna or radar rotation systems, industrial testing, and optical measurement setups. By contrast, a Pan-Tilt Unit requires two complete drive mechanisms and dual-axis control — increasing complexity and cost.

2. Single-Axis vs Pan-Tilt: Key Differences

When only one rotation axis is needed, a single-axis platform is not only sufficient — it's the smarter, more efficient choice.

3. Engineering Advantages of Focusing on One Axis

Higher Reliability

A single-axis design eliminates unnecessary motors and gears, reducing potential failure points. Fewer components mean longer service life and lower maintenance costs.

Cost & Structural Efficiency

The simplified structure leads to lower manufacturing and installation costs. Streamlined wiring and control reduce system complexity and total project expense.

Rigidity & Load Capacity

ZIWIN's Single-Axis Positioner range supports 3 kg to 300 kg payloads, built with reinforced aluminum housings for excellent rigidity and vibration resistance — ideal for heavy-duty applications.

Simplified Control Integration

Only one encoder and motor controller are needed for precise motion. Supports multiple interfaces such as RS-485, TTL, and Modbus, easily integrated with host systems.

4. Typical Application Scenarios

• LiDAR and laser ranging platforms

• Border or maritime surveillance tilt control

• Industrial inspection and optical test benches

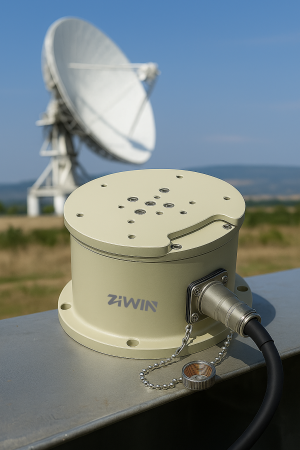

• Antenna tracking and signal positioning

• UAV ground stations and mobile monitoring systems

In such scenarios, the additional mechanism of a Pan-Tilt Unit becomes unnecessary weight. A Single-Axis Positioner delivers smoother motion, higher reliability, and lighter structure.

5. Why Choose ZIWIN Single-Axis Positioner

- Wide Range: Supports 3 kg – 300 kg payloads

- High Precision: Preset accuracy up to ±0.01°

- Protection: Reinforced aluminum body, IP66 weatherproof

- Interface Options: RS-485, TTL, Modbus, and custom protocols

- Customization: ZIWIN offers deep customization based on customer requirements. With our own design, R&D, and manufacturing capabilities, we can tailor slip-ring wiring, angle range, housing color, interfaces, and mechanical structure to meet specific application needs.

- Applications: Forest fire detection, radar imaging, military reconnaissance, and energy inspection

View Product Page: https://www.ziwincctv.com/products/single-axis-positioner/

Conclusion

In mission-critical systems where long-term reliability matters, choosing the right axis of motion is more important than adding complexity. If your application only needs one direction of rotation, ZIWIN's Single-Axis Positioner is the smarter, lighter, and more efficient choice.
