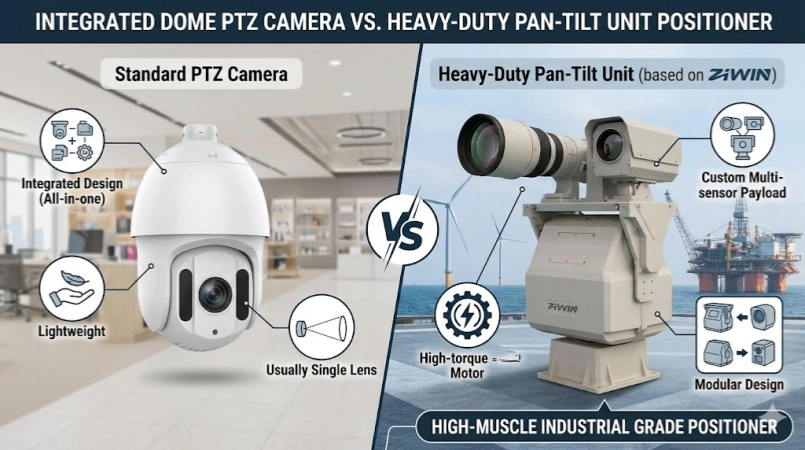

Integrated PTZ Cameras vs. Heavy-Duty Pan-Tilt Positioners: Which Do You Need?

When designing a surveillance system for critical infrastructure, border security, or harsh industrial environments, you will eventually face a crucial hardware decision. Should you specify standard integrated PTZ (Pan-Tilt-Zoom) cameras, or do you need the raw power of a dedicated heavy-duty pan-tilt positioner?

While standard PTZs are excellent for general commercial security, they often fail when pushed to their limits in extreme conditions. Choosing the wrong equipment can lead to shaky footage, motor failure, and massive maintenance costs.

In this guide, we will break down the exact differences between an all-in-one PTZ camera and a motorized pan-tilt unit (PTU), helping you make the right engineering choice for your next project.

The Limitations of Standard Integrated PTZ Cameras

A standard PTZ camera is an all-in-one device where the camera lens, image sensor, and the pan/tilt motors are housed inside a single dome or bullet casing.

They are incredibly convenient for shopping malls, parking lots, and standard city surveillance. However, for industrial and high-security projects, they have significant limitations:

• Fixed Hardware: You are stuck with the camera sensor the manufacturer included. If you need a specialized thermal sensor paired with a 100x optical zoom lens, a standard PTZ cannot accommodate this.

• Low Wind Resistance: Dome-style PTZs can act like sails in high winds. The internal micro-motors often lack the torque to maintain a steady image during a severe storm.

• Payload Restrictions: They cannot carry external equipment like radar, heavy infrared illuminators, or acoustic deterrents.

What is a Heavy-Duty Pan-Tilt Positioner?

A pan-tilt positioner (or PTU) is strictly the motorized robotic head. It does not come with a camera built-in. Instead, it acts as an ultra-stable, high-torque platform designed to carry whatever payload you need to mount on it. These units are built with industrial-grade gears and weather-sealed housings, making them the backbone of military, maritime, and critical infrastructure surveillance.

Payload and Customization: The Biggest Advantage of PTUs

The primary reason engineers choose a pan-tilt positioner over a standard PTZ is payload capacity and customization.

With a heavy-duty PTU, you can design a custom "multi-sensor" setup. For example, you can mount a long-range daylight camera on the left side, a cooled thermal imaging camera on the right side, and a laser rangefinder on top.

Because these units use powerful stepping motors, they provide extreme accuracy and zero backlash, even when carrying 20kg (44 lbs) to 50kg (110 lbs) of equipment. For demanding projects requiring high torque and stability, integrating a robust Pan-Tilt Unit Positioner ensures your optical and thermal sensors perform flawlessly, no matter how heavy the load.

Cost and Maintenance in Industrial Projects

While a heavy-duty pan-tilt positioner requires a higher initial investment than a commercial PTZ, the long-term ROI in harsh environments is vastly superior.

The Modular Advantage:If a standard PTZ camera is struck by debris and the lens breaks, you often have to replace the entire unit—including the perfectly good motors.

A PTU system is modular. If your camera sensor becomes outdated in five years, you simply unbolt the old camera and attach a new 4K or 8K box camera. The heavy-duty pan-tilt motor remains in place, saving you thousands of dollars in replacement hardware and labor costs.

Conclusion: Making the Right Choice

If you are monitoring a commercial parking lot, a standard PTZ is likely all you need.

However, if your project involves long-range perimeter defense, extreme weather conditions, or requires customized dual-sensor payloads (thermal + optical), a Heavy-Duty Pan-Tilt Positioner is the only reliable choice. It offers the torque, stability, and modularity that critical security projects demand.

Looking for the right hardware for your custom surveillance setup?Ziwin CCTV manufactures industrial-grade positioning systems built for extreme environments. Explore the technical specifications of our Heavy-Duty Pan-Tilt Unit Positioners or contact our engineering team to discuss your payload requirements today.
