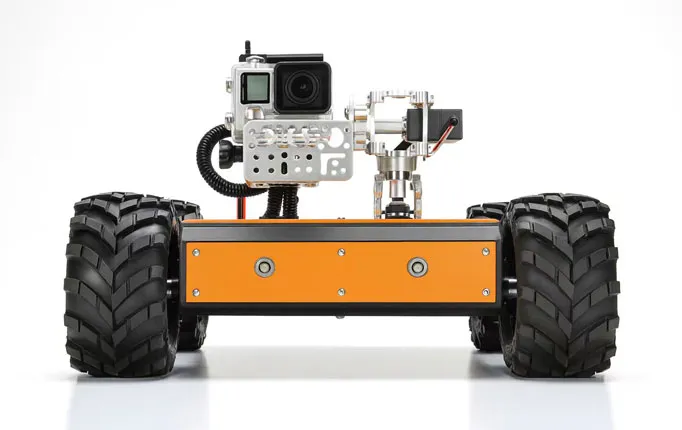

How Heavy Duty Pan Tilt Units Empower Robotic Vehicles

Robotic vehicles are becoming an essential part of modern industry, research, and security. From patrol robots in smart cities to autonomous vehicles used in university research, these platforms require precise sensor integration to function effectively. One critical technology behind these systems is the heavy duty pan tilt unit (PTU).

What Is a Heavy Duty Pan Tilt Unit?

A heavy duty pan tilt unit is a motorized positioning system that can rotate horizontally (pan) and vertically (tilt) to control the direction of mounted equipment. Unlike lightweight gimbals or fixed mounts, heavy duty PTUs are designed to handle large payloads such as LiDAR sensors, thermal imaging cameras, and multi-sensor modules—all while maintaining extreme precision.

Why Do Robotic Vehicles Need Heavy Duty Pan Tilt Units?

Robotic vehicles face complex environments that require precise sensor positioning and reliable control. A heavy duty PTU provides them with:

• High-Precision Sensor Adjustment: Cameras, LiDAR, or infrared systems can be rotated and tilted without moving the entire robot, ensuring flexible field of view.

• Dynamic Target Tracking: Enables real-time following of people, vehicles, or objects with exceptional accuracy.

• Stable Operation in Harsh Conditions: Maintains consistent performance under vibration, uneven terrain, strong winds, or changing weather.

• Wide-Area Coverage: One heavy duty PTU allows a single robot to monitor broad areas with fewer sensors, reducing system complexity and cost.

• High Payload Capacity: Unlike lightweight mounts, heavy duty pan tilt units are built to carry larger and heavier devices. Since robotic vehicles often need to integrate multiple sensors—such as LiDAR, radar, and cameras—a strong load-bearing PTU is essential to support these payloads reliably.

Heavy Duty Pan Tilt Unit Applications Across Multiple Fields

1. Security and Patrol Robots

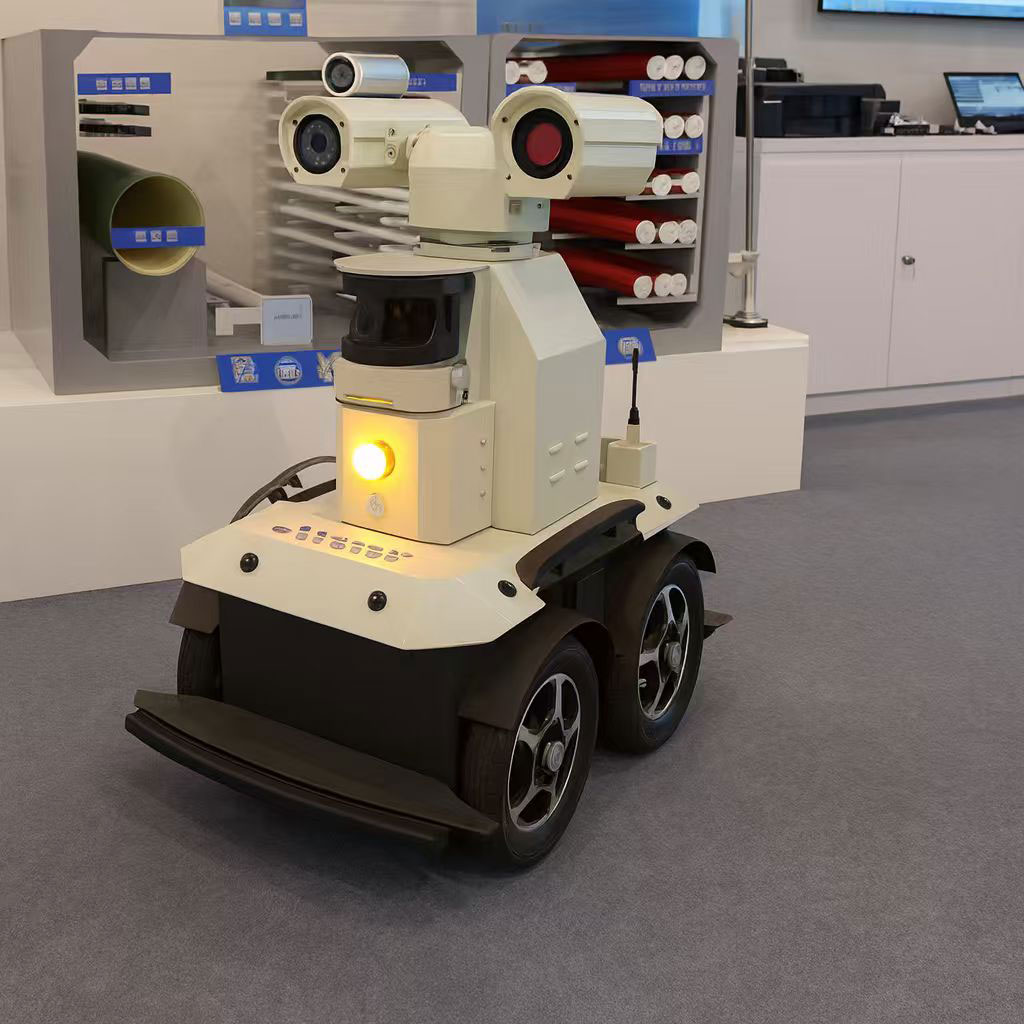

Robotic vehicles equipped with PTUs can patrol campuses, ports, or industrial sites. With thermal and infrared cameras mounted on a heavy duty PTU, they can provide 24/7 surveillance and automatically track suspicious activities.

2. Industrial Inspection Robots

For pipelines, power grids, and mining operations, robots with PTUs can carry multiple inspection sensors. The PTU allows them to switch viewing angles quickly and precisely, ensuring no blind spots during inspection.

3. Research and Academic Projects

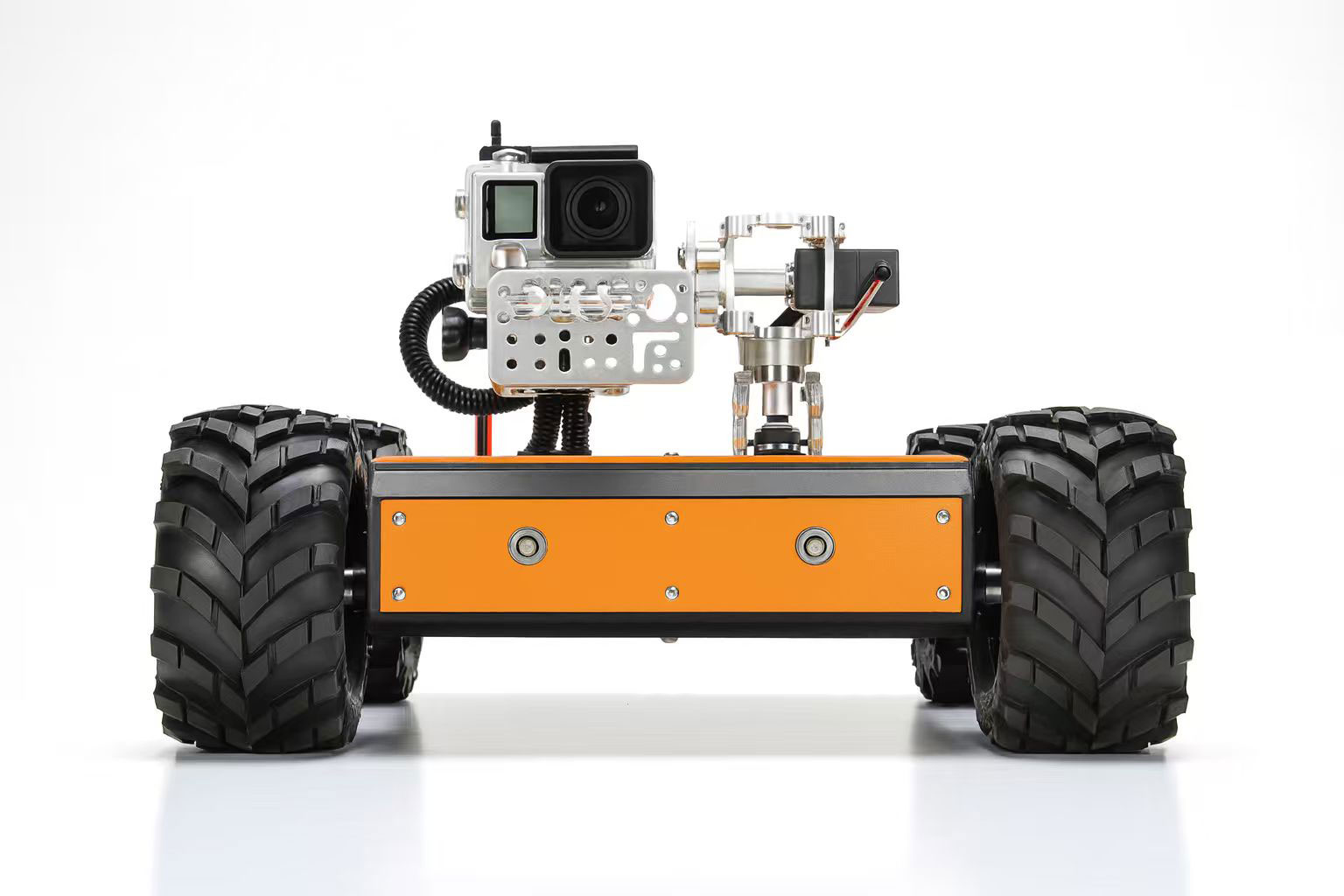

Universities use robotic platforms with PTUs to test new AI algorithms, autonomous driving functions, and multi-sensor fusion. The ability to mount different devices on a stable, precise PTU makes it a valuable tool for cutting-edge research.

4. Emergency and Rescue Robots

In disaster zones, rescue robots with PTUs can mount thermal cameras to detect human heat signatures or gas detection devices to scan hazardous environments.

ZIWIN's High-Precision Advantage

While many PTUs can handle heavy loads, ZIWIN stands out with a 0.01° high repositioning accuracy. This level of precision ensures that even after rapid or repeated movements, the mounted sensors return to exactly the same point—critical for robotics that rely on consistent, repeatable data.

Recently, ZIWIN's heavy duty PTUs were successfully deployed in university autonomous robotic vehicle projects, where their accuracy and reliability received strong recognition.

Conclusion

Heavy duty pan tilt units are more than just mechanical mounts—they are the "eyes and hands" of robotic vehicles, enabling them to perceive, monitor, and interact with their environment. From security patrol to industrial inspection, their applications are vast and growing. With 0.01° precision and proven field performance, ZIWIN PTUs are at the forefront of powering intelligent robotic platforms worldwide.

Contact ZIWIN today to learn how our high-precision PTUs can enhance your robotics applications.

FAQ About Heavy Duty Pan Tilt Units in Robotics

1. What is a heavy duty pan tilt unit in robotics?

It is a motorized system that precisely positions sensors such as cameras and LiDAR on robotic vehicles.

2. What can be mounted on a robotic PTU?

Common payloads include thermal cameras, HD video cameras, LiDAR, radar modules, and infrared sensors.

3. Where are robotic PTUs used?

They are widely applied in security patrol, industrial inspection, emergency rescue, and research projects.

4. What makes ZIWIN PTUs different?

ZIWIN offers 0.01° repositioning accuracy, heavy payload support, and all-weather reliability.

5. Has ZIWIN technology been proven in real projects?

Yes. Our PTUs have been applied in university robotics projects, where their performance was highly recognized.
