Pan-Tilt Duty Unit + Radar/Antenna: Building the Core of an Intelligent Counter-Drone System

How High-Precision Radar/Antenna + Smart Gimbals Enable Accurate Drone Interception Beyond 3 Kilometers?

Introduction

With the increasing misuse of drones (illegal flights, espionage, terrorism), low-altitude security solutions have become a global priority. At the heart of ZIWIN's counter-drone system lies the Pan-Tilt Duty Unit (heavy-duty, vibration-resistant gimbal), equipped with dedicated radar and directional antennas. This intelligent and reliable solution enables precise detection, tracking, and suppression of unauthorized drones. This article provides an in-depth look into the core technologies and advantages of this cutting-edge counter-drone system.

Escalating Drone Threats Drive Urgent Demand for Counter Systems

· Data Alert: In 2023, global drone interference incidents rose by 67% year-over-year (Source: DroneSec report), with airports, military bases, and critical infrastructure being the hardest hit.

· Limitations of Traditional Methods: Fixed jamming systems have limited coverage and are ineffective against fast-moving targets.

· Solution: ZIWIN's dynamic combination of Pan-Tilt Duty Unit + Radar/Antenna achieves a fully automated "detection-tracking-countermeasure" loop.

Typical Application Scenarios: Diverse Needs Driving Real-World Deployments

As drone technology becomes more accessible, incidents of illegal flights have surged, accelerating the adoption of counter-drone systems across various fields. ZIWIN's Pan-Tilt Duty Unit equipped with radar and directional antenna provides all-weather, all-time drone detection and interception capabilities and has been successfully deployed in key scenarios such as:

· Airport Airspace Protection
Monitors unauthorized drone intrusions in real-time around international and regional airports, ensuring safe takeoffs and landings.

· Energy & Infrastructure Security
Suitable for power plants, oil depots, telecom towers, and high-voltage transmission lines, offering 24/7 airspace protection.

· Urban & Government Facilities
Secures low-altitude activity near government offices and large meeting venues, preventing information leaks or sabotage.

· Mass Events & Exhibition Security
Quickly deployable in crowded venues like sports events, concerts, and trade shows to prevent disruptions and security threats.

· Rapid Response for High-Risk Zones
Ideal for emergencies or high-security operations, the system can be mounted on vehicles or boats for quick deployment and closed-loop response: "detect, lock, and neutralize."

Core Technology: Why Choose ZIWIN’s Pan-Tilt Duty Unit?

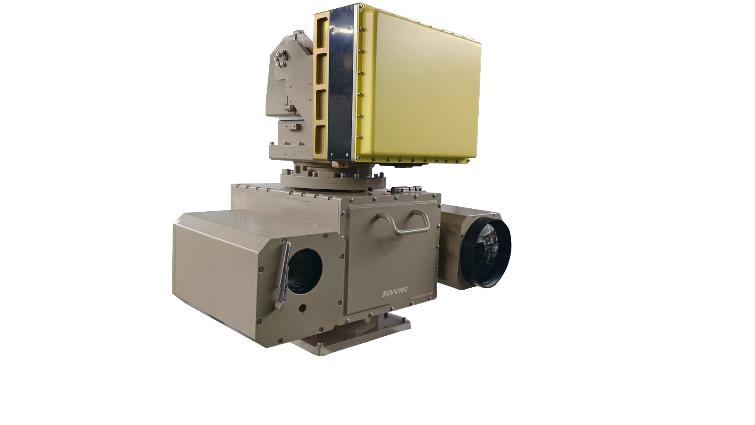

. Integrated High-Precision Radar
Equipped with millimeter-wave or phased array radar, the unit achieves 3-5 km detection range with 360° coverage and no blind spots.

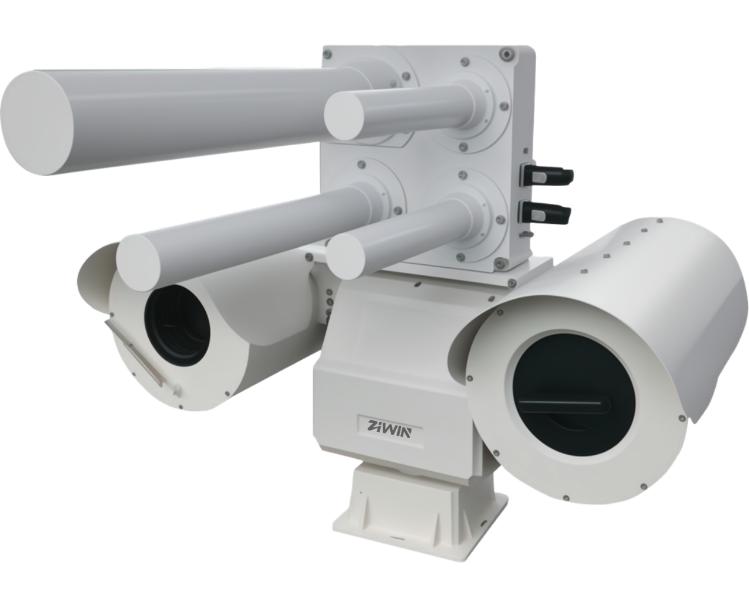

. Targeted Interference via Directional Antenna
Carries frequency-adjustable jamming antennas (2.4GHz/5.8GHz/GNSS), which the gimbal rapidly aligns with targets for directional electromagnetic suppression (minimizing collateral interference).

. Anti-Interference Design
The gimbal features electromagnetic shielding materials to prevent counter-jamming and is IP66-rated for durability in extreme environments such as deserts or sub-zero zones.

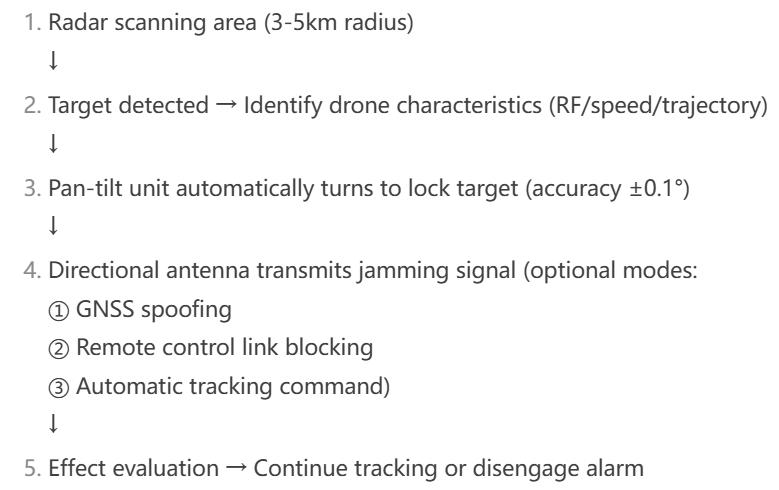

System Workflow Diagram

Technology Evolution: Trends Shaping the Future of Counter-Drone Systems

1. AI-Driven Threat Prediction
Machine learning algorithms analyze drone behavior to anticipate potential attacks and enable proactive defense.

2. Multi-Spectrum Cooperative Jamming
Next-gen systems will support wider frequency bands and adopt dynamic frequency hopping to counter advanced drones with anti-jamming capabilities.

3. Modular & Multi-Task Integration
The Pan-Tilt Unit platform supports flexible mounting of radar, EO systems, and jamming modules, adapting to various defense scenarios.

Conclusion

With its high precision, stability, and intelligent capabilities, the Pan-Tilt Duty Unit has become the core component of modern counter-drone systems. Our products have been successfully deployed in major projects worldwide, including airport protection and military base security, delivering proven field results. As the demand for low-altitude defense continues to grow, this technology is set to play a pivotal role in more applications.

If you're looking for a high-performance counter-drone system for airports, military zones, or urban low-altitude security, feel free to contact us for customized deployment plans and product trials.

Email us at: sales@ziwincctv.com

Frequently Asked Questions (FAQ)

1.What is a Pan-Tilt Duty Unit and what role does it play in counter-drone systems?

The heavy duty pan tilt unit enables remote-controlled, high-speed rotation and precise positioning. In counter-drone systems, it mounts radar, antennas, and EO sensors to achieve 360° tracking and targeted jamming, allowing quick response to drone threats.

2. What is the detection range of ZIWIN’s system, and which frequency bands does it support for jamming?
The system integrates millimeter-wave or phased array radar and can detect drones up to 3-5 km in open environments. It supports directional jamming in 2.4GHz, 5.8GHz, and GNSS bands, making it compatible with a wide range of commercial and consumer drones.

3. In which scenarios can this system be deployed? Are special installation requirements needed?
The system is suitable for various scenarios such as airport security, military bases, border defense, energy infrastructure, urban safety, and temporary events. It supports both fixed and mobile (vehicle/boat-mounted) installations. With an IP66 rating, it performs well in sand, cold, and salt-fog environments and does not require complex setup for deployment.

4. Does the system support customization? How can I get technical documents or samples?
Yes, we offer full customization services, including PTU’s rotation angle, speed, load capacity, and even housing design. The system can be tailored to your operational requirements. To request product brochures, technical white papers, or sample trials, please contact us at: sales@ziwincctv.com
