Heavy Duty Pan-Tilt Unit in Military Vehicle Applications

Modern military operations demand mobility, precision, and real-time situational awareness. From tactical reconnaissance to border protection, the ability to position sensors and cameras precisely under harsh environments determines mission success. At the core of such systems lies the heavy duty pan-tilt unit — a rugged, high-load positioning platform that enables sensors to rotate, tilt, and lock onto targets with accuracy.

At ZIWIN Technology, our heavy pan tilt units are engineered for extreme reliability, supporting payloads up to 120 kg with continuous 360° rotation, precise angle control, and customizable interfaces. These pan and tilt units are designed to integrate seamlessly with optical, infrared, and radar payloads on military vehicles, masts, and defense platforms.

1. The Role of a Pan-Tilt Unit in Military Systems

A pan-tilt unit (PTU), also known as a pan and tilt unit or pan-tilt head, is a mechatronic positioning mechanism that provides two degrees of freedom — horizontal (pan) and vertical (tilt). In defense applications, the PTU acts as the mechanical foundation for multi-sensor pods, weapon aiming devices, and electro-optical systems.

By controlling pan tilt position with high accuracy and feedback, operators can quickly align sensors with moving targets or preset coordinates. This function is essential in real-time surveillance, tracking, and reconnaissance missions where both speed and precision are critical.

2. Why Heavy Pan-Tilt Units Are Crucial for Military Vehicles

Military vehicles face challenges far beyond civilian or industrial platforms — they must endure dust, shock, vibration, and extreme temperatures. A heavy duty pan tilt unit must not only support large payloads but also remain stable during high-speed vehicle movement or recoil forces.

Key Advantages:

• High Payload Capacity — Supports heavy multi-sensor payloads including dual-channel EO/IR cameras, radars, or laser rangefinders.

• Precision and Feedback — Closed-loop servo control ensures positioning accuracy within ±0.01°.

• Continuous 360° Rotation — Enables all-direction scanning without mechanical limits.

• Wide Tilt Range — Typical ±70° range supports low-angle ground observation and elevated sky-tracking.

• Stability in Harsh Environments — IP66/IP67 sealing and automatic brake locking.

• Custom Integration — RS-485/422, Pelco-D/P control protocols, and integrated slip-rings for flexible integration.

3. Core Technical Features of ZIWIN Heavy Pan Tilt Unit

4. Application Scenarios in the Defense Sector

a. Reconnaissance and Surveillance Vehicles — Enables 24/7 panoramic observation using visible, infrared, and laser sensors.
b. Border Patrol and Convoy Protection — Supports rapid response and wide-area detection.
c. Anti-Drone and Air Defense Platforms — Allows EO/IR sensors to intercept and track drones.
d. Command and Communication Vehicles — Stabilized orientation for continuous communication.
e. Mobile Fire Control or Weapon Stations — Provides precision pan tilt position feedback for aiming and correction.

5. Field Deployment Example (Non-Disclosed Project)

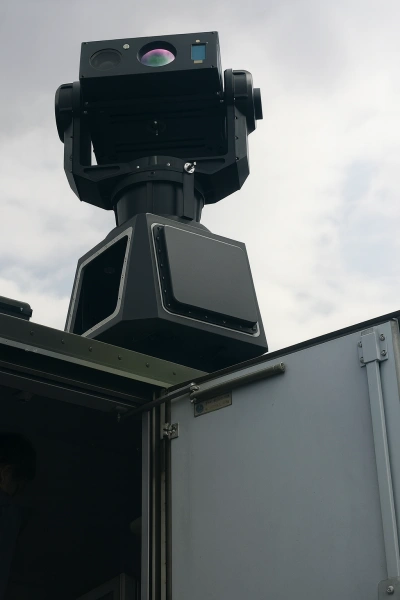

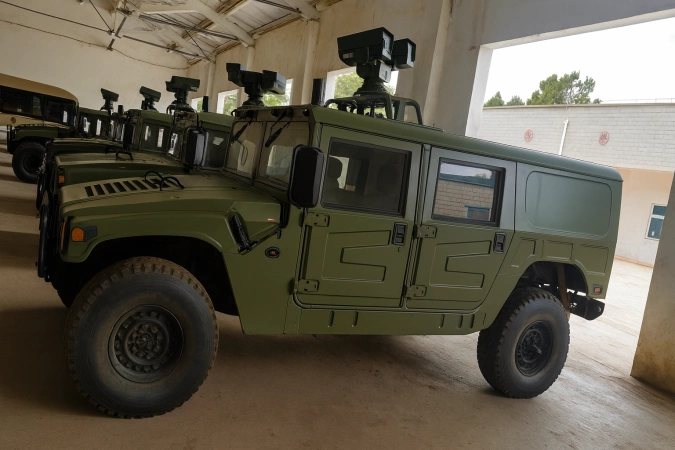

In a recent defense vehicle project, ZIWIN’s heavy duty pan-tilt head was integrated onto armored reconnaissance vehicles. The system carried a dual-sensor EO/IR camera module with a laser rangefinder, enabling day-night reconnaissance and target tracking at distances over 10 km.

The PTU provided stable 360° pan rotation and precise ±0.1° tilt control, even during vehicle motion and vibration. Its sealed aluminum housing withstood desert heat, sand, and heavy rain, ensuring continuous operation during field deployment.

6. Advantages of Choosing ZIWIN Heavy Pan-Tilt Unit

• Proven Reliability

• Customization Flexibility

• Precision Servo Drive

• Wide Compatibility

• Global Support

7. Conclusion

A heavy duty pan-tilt unit is more than a mechanical mount — it’s a mission-critical system enabling sensors to perform with precision and reliability under the toughest battlefield conditions. With years of engineering expertise and custom manufacturing capability, ZIWIN Technology delivers pan-tilt solutions that combine mechanical robustness, servo precision, and environmental endurance — meeting the highest standards for modern defense applications.
