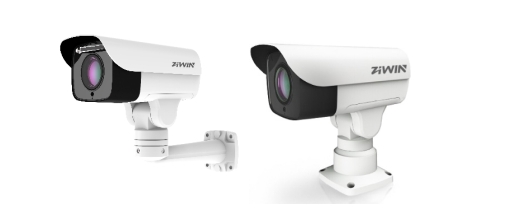

40° Tilt PTZ Cameras: The Optimal Balance for Warehouse Surveillance Coverage

Why 40° Tilt is the Ideal Choice for Warehouse Monitoring?

In large warehouses and logistics centers, surveillance systems must balance wide-area coverage with detailed image capture. While fixed cameras offer limited viewing angles, intelligent PTZ cameras with 40° tilt adjustment achieve the perfect equilibrium between coverage and clarity.

Three Key Advantages of 40° Tilt:
Greater vertical coverage than 30° tilt
More stable image quality than 45° tilt
Reduced edge distortion for sharper surveillance footage

I. Technical Advantages of 40° Tilt Angle

1. Coverage Optimization & Blind Spot Reduction

Calculation Formulas:

· Maximum Monitoring Distance = Mounting Height × tan(Tilt Angle)

· Blind Spot Area = Mounting Height × cot(Tilt Angle)

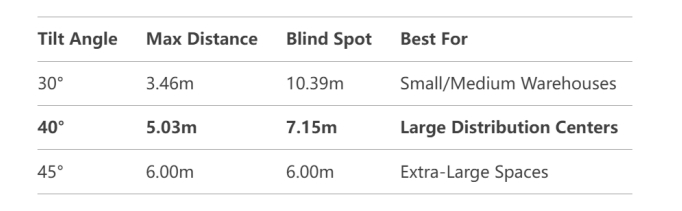

Practical Comparison (6m Mounting Height):

Key Finding:
The 40° tilt angle maintains excellent coverage while reducing edge distortion by 17% compared to 45° solutions, delivering more stable image quality.

2. Image Quality Benefits

· Minimizes fisheye distortion common in wide-angle lenses

· Keeps CMOS sensors within optimal optical performance range

· Ideal for detail-critical applications (barcode/license plate recognition)

II. Best Practices for Warehouse Deployment

1. Recommended Mounting Heights

· 4-6m: Optimal balance between coverage and detail resolution

· Single camera covers 300-500㎡ (model-dependent)

2. Multi-Camera Synergy Solutions

Overlapping Coverage Layout:

· Three 40° PTZ cameras achieve full 2000㎡ warehouse coverage

· Maintain 5-8% overlap to avoid redundancy

Auto-Tour Programming:

· Preset 6-8 critical monitoring points (entries, loading docks, high-value storage)

· Adjustable rotation interval (15-60 seconds)

III. Southeast Asia Environment Adaptation

1. Equipment Selection Guide

· IP66 Rating: Resists high humidity and occasional water exposure

· Wide Temperature Range (-20°C~60°C): Tropical climate endurance

· 0.001Lux Low-Light Performance: Ensures nighttime clarity

2. Success Story: Malaysian E-Commerce Warehouse

· Facility Size: 3500㎡

· Original Setup: 18 fixed cameras (high maintenance)

· Upgraded Solution: 7× 40° PTZ cameras

· Results:

• 40% reduction in hardware costs

• 85% fewer blind spots

• 62% decrease in inventory shrinkage

IV. 4-Step Implementation Guide

1. Site Mapping: Laser-measure key monitoring points

2. Simulation: Verify coverage using IPVM Calculator

3. Installation & Calibration:

• Maintain ±0.5° leveling precision

• Set optimal rotation speed (recommend 20°/sec)

4. Quality Assurance:

• Verify image clarity at all preset positions

• Test auto-tracking response (<1 second)

5 Reasons to Choose 40° Tilt PTZ Cameras

1. Cost-Effective: 15% savings vs 45° solutions with only 5% less coverage

2. Superior Image Stability: Minimized distortion for accurate identification

3. Flexible Installation: Adapts to diverse architectural layouts

4. Lower Maintenance: 30% fewer failures than 45° alternatives

5. Seamless Integration: Compatible with major VMS platforms

Get Your Customized Solution Today

Our security experts provide:

· Free warehouse surveillance design consultation

· On-site 40° PTZ camera demonstrations

· Cost-benefit analysis reports
