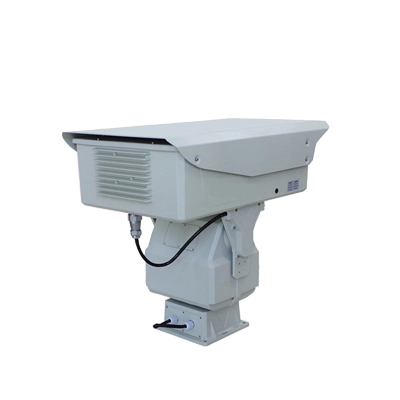

Features of ZN-TVC6516-2075-ES PTZ thermal camera
Uncooled VOx thermal imaging detector, 384x288 /640x512 resolution
31～155mm lens for thermal camera, detection sensitivity (NETD) up to 50mk
Detection range vehicle 13,000 m/human 4,800 m, recognition range vehicle 3,400 m/human 1,300 m
1080P HD visible network camera, 22~750mm lens, motorized zoom ,auto focus
360° continuous pan rotation, -45°~+45° tilt
Pan: 0.01°/s~30°/s , tilt: 0.01°/s~15°/s rotation speed, supports adaptive focal length speed
Support absolute control, coordinate display, preset, auto cruise route, auto scan route
High-strength aluminum alloy construction ,protection grade IP66
| Model | ZN-TVC6516-2075-ES |
| Detection | Vehicle 13,000 m Human 4,800 m |
| Identification | Vehicle 3,400 m Human 1,300 m |
| Thermal sensor | 5th generation, Uncooled VOx sensor |
| Resolution: 640x512(384x288) | |
| 7.5um-14um spectral response, ≥50mk NETD(@25℃ F1.0) | |
| Thermal lens | 31～155 mm, 5X |
| Motorized zoom and Manual/Auto Focus | |
| FOV: 20°×15°～4°×3° | |
| Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus in the doubling process, and small axis | |
| Image Processing | SDE digital image enhancement technology to enhance image details |
| 16 kinds of pseudo-color images, hot black / hot white two polarities | |
| Support AGC automatic gain control, brightness, contrast | |
| 2×, 4× Electronic zoom, support global synchronous display | |
| NUC correction: automatic / manual correction, background correction | |
| Visible Camera | 1/1.8'' startlight progressive scan CMOS |
| 2MP, 1920×1080 | |
| Color: 0.001 Lux; B/W: 0.0001Lux | |
| 22~750mm, 35X zoom | |
| Manual/Auto Focus, 3A Adaptive active Focus algorithm | |
| Integrated automatic ICR dual filter day and night switching | |
| Support automatic aperture | |
| H.265/H.264 video format, support multi-stream | |
| 32Kbps ~ 16Mbps, 60Hz/30fps | |
| Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection | |
| Support AFR anti fog, DIS, AWB, AE, HLC, 3DNR, WDR, ABF automatic rear coke adjustment function | |
| Precision potentiometer, support zoom focus Feedback | |
| PT PARAMETER | Pan: 0° to 360° endless |
| Pan: 0.01° to 30°/s | |
| Tilt: -45° to 45° | |
| Tilt: 0.01° to 15°/s | |
| Preset position: 255, support lens zoom, focus preset | |
| Positioning accuracy: ±0.1° | |
| Mechanical wiper(optional) | |
| Watch: Preset / Auto Cruise Route / Auto Scan Route | |
| Support coordinate query/feedback and absolute control | |
| Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status) | |
| Split design, the whole is made of high-strength aluminum alloy | |
| Interface | Network interface: 1 RJ45 10M/100M self-adaptive Ethernet port (integrated video output and RS422/485 control communication) |
| Network protocol: TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; | |
| Support PSIA, ONVIF and other network protocols | |
| Physical interface: Military aviation water-proof connector | |
| Power Supply | AC24V/DC24V±10%, 50Hz, ≤120W |
| Salt-spray Proof: PH 6.5-7.2, spray continuously for 96 hours, no surface changes | |
| Anti-lighting: Built-in surge protection for the interface circuit, 6000V surge protection | |
| Ingress Protection: IP66 | |
| Working Temperature: -40°C ~ +60°C (-40°F~ +140°F) | |
| Storage Temperature: -45℃～+70℃ (-49°F~ +158°F) | |
| Humidity: ≤90%RH | |
| Weight | 50kg (110.231 lbs) |
This PTZ thermal camera is applied in forest fire prevention, port security, and critical infrastructure surveillance, providing high-resolution thermal imaging for continuous 24/7 monitoring
Q: Is this PTZ thermal camera suitable for forest fire prevention in Northern Europe?
A: Yes. With 640×512 high-resolution thermal imaging, it provides early fire detection in Finland and Sweden.
Q: How does this thermal PTZ perform in Asian ports?
A:This thermal PTZ camera provides long-range vessel recognition with thermal resolution up to 640×512 and powerful optical zoom, enabling operators to identify ships and monitor harbor traffic day and night. Its IP66-rated weatherproof housing and anti-corrosion design ensure reliable performance in high-humidity and salt-fog environments commonly found in Asian ports such as Singapore and Hong Kong.
Q: Can this thermal CCTV camera operate in extreme Nordic cold?
A: Absolutely. It works reliably at -40℃ and is used in Norwegian ports and Iceland’s border projects.
Q: What user difficulties arise in forest fire monitoring?
A: Users worry about small flames going unnoticed. Our high-sensitivity core detects subtle heat differences for early alarms.
Q: What issues occur in Asian port environments with PTZ thermal cameras?
A: In busy Asian ports, users often face challenges such as interference from strong lighting, vessel traffic congestion, and the need for seamless system integration. This PTZ thermal camera supports ONVIF protocol for easy connection to VMS platforms, and its thermal imaging ensures reliable detection even when glare or overlapping vessel lights reduce the effectiveness of traditional CCTV.
