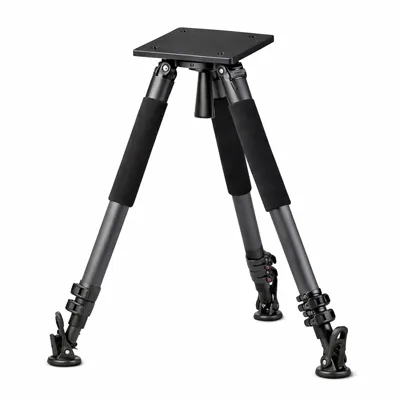

ZN-T040 40kg (88.18 lb) Load Tripod for Pan Tilt Unit_copy20260123101721

FAQs for 40kg Load Tripod for Pan Tilt Unit

FAQ 1: Can this tripod be directly mounted with your Pan-Tilt Unit (PTU)?

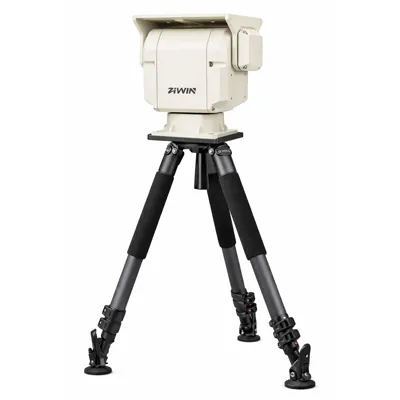

Yes. The tripod is equipped with a standard top mounting plate and can be directly fixed to ZIWIN pan tilt units (PTUs / positioners) using bolts. If your PTU has a special mounting hole pattern or interface requirement, we can also provide a customized adapter plate to ensure sufficient mechanical strength and secure installation.

FAQ 2: What is the maximum load capacity of this tripod and what applications is it suitable for?

This tripod supports a maximum load capacity of 40 kg, making it ideal for light-to-medium duty pan-tilt units, It is well suited for applications such as mobile surveillance, temporary monitoring, portable inspection systems, and field testing deployments.

FAQ 3: Is the tripod height adjustable? What is the working height range?

Yes. The tripod features a multi-section telescopic structure with an adjustable working height ranging from 200 mm to 1630 mm, providing excellent flexibility for both low-profile and elevated installations. When folded, the tripod has a compact transport length of 740 mm, making it easy to carry and deploy in mobile or field applications.

FAQ 4: What material is used and is the tripod suitable for outdoor use?

The tripod is manufactured from CNC-machined aluminum alloy with a 39 mm tube diameter, offering a good balance between strength, weight, and corrosion resistance. With a net weight of only 6.5 kg, it is lightweight yet robust, making it suitable for outdoor environments and frequent transportation. A carry bag is included as standard for added convenience.
