Features of ZN-SPM20U Outdoor Medium-Duty Variable Speed Pan-Tilt Head
Medium duty pan tilt unit, indoor/outdoor use
High precision stepper motor, worm and gear drive transmission
Load capacity up to 15kg/33.07lb
High-strength aluminum alloy construction
Self-lock with memory after power failure, strong wind-resistance
Variable speed,pan: 0.01~60°/s;tilt:0.01~30°/s
360° continuous pan rotation, +40°~-75° tilt
Preset accuracy:±0.1°
Support position feedback and absolute position
RS485/RS422 pan tilt control with Pelco P/D protocol
Protection grade IP66
| Model | ZN-SPM20U |
| Max. Load Capacity | 15kg/33.07lb |
| Load Type | Top load |
| Transmission Mode | Worm gear transmission |
| Pan/Tilt Range | Pan: 0°~360°, Tilt: -75°~+40° |
| Pan Speed | 0.01°~60° |
| TiltSpeed | 0.01°~30° |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| PT Speed Adaptation | Support |
| Cruising Track | 1 |
| Auto Scan | 1 |
| Guard Location | Support with 1 preset or 1 cruising track or 1 auto scan |
| Lens Preset | Support |
| Lens Control | Continuously adjustable zoom, focus speed |
| Power-Off Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
| Protocol | Pelco D/P |
| Baud Rate | 2400/4800/9600/19200 bps |
| Communication Interface | RS485 (Optional RS422) or RJ45 |
| Coordinate Feedback | Support angle query feedback/real-time feedback |

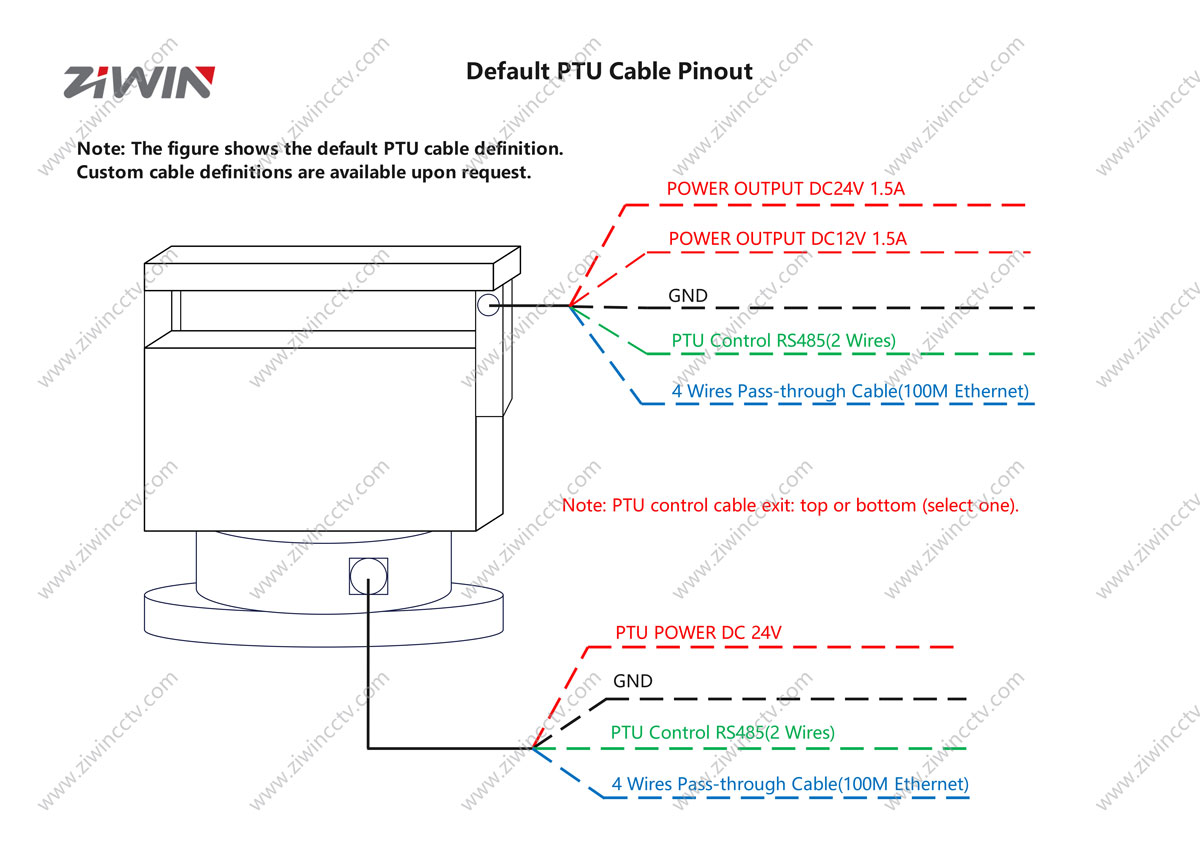

| Interface | |
| Standard | 10/100M Ethernet with RJ45 (4 wire, pass-through), AC 24V/DC 24V (2 wire), GND |
| Opention | RS485/RS422 |
| General | |
| Power Supply | AC24V±10% ,50/60Hz;DC24V±5%； |
| Power Consumption | ≤60W |
| Lighting Surge Protection | Power: 4000V (line to ground: 4000V, line to line: 2000V) Communication signal interface: 2000V (line to ground: 2000V, line to line: 1000V) |
| Working Temperature | -35°C~+65°C (-31°F~ +149°F) |
| Working Humidity | ＜90%RH |
| Protection Level | IP66 |
| Material | Aluminium Alloy |
| Size | 227×249×349mm（L×W×H） |
| Weight | 13kg (28.66lb) |
Q: What makes the ZN-SPM20U suitable for heavier payloads compared to 10kg models?
A: The medium-duty pan-tilt head delivers superior load-payload capacity through:
· 15kg (33lb) high-strength aluminum alloy construction
· High-precision stepper motor with worm gear drive ensures:
✓ ±0.1° preset accuracy (meets ANPR/LPR system requirements)
✓ Automatic self-locking when powered off (safety protection)
· IP66-rated full-sealed protection
Q: What's the tilt range for low-angle surveillance?
A: The extended -75° to +40° tilt range is optimized for:
· Traffic intersection monitoring (capturing license plates at steep angles)
· Airport perimeter security (tracking ground vehicles near fences)
· Industrial facility oversight (monitoring loading dock activities)
Q: What customizations does ZN-SPM20U Medium Duty Pan Tilt Head support?
A: We offer customization for:
• Pan/Tilt rotation speeds
• Horizontal rotation range and vertical tilt angle range.
• Load capacity
• Wiring harnesses and aviation connectors
• Control and rotation functions
• Partial shape, color, and connectors
Q: What payload mounting configurations does the ZN-SPM20U support?
A: 1. Top-Loading Configuration
2. Side-Loading Configuration
Technical Notice
The actual load capacity must be calculated based on the specific center of gravity height of your payload. Our engineering team can provide free load assessment for custom customer.
Q: What control protocols are supported?
A: The ZN-SPM20U supports:
· Primary protocols: Pelco D (default) & Pelco P
· Optional interfaces: RS-485/RS-422
