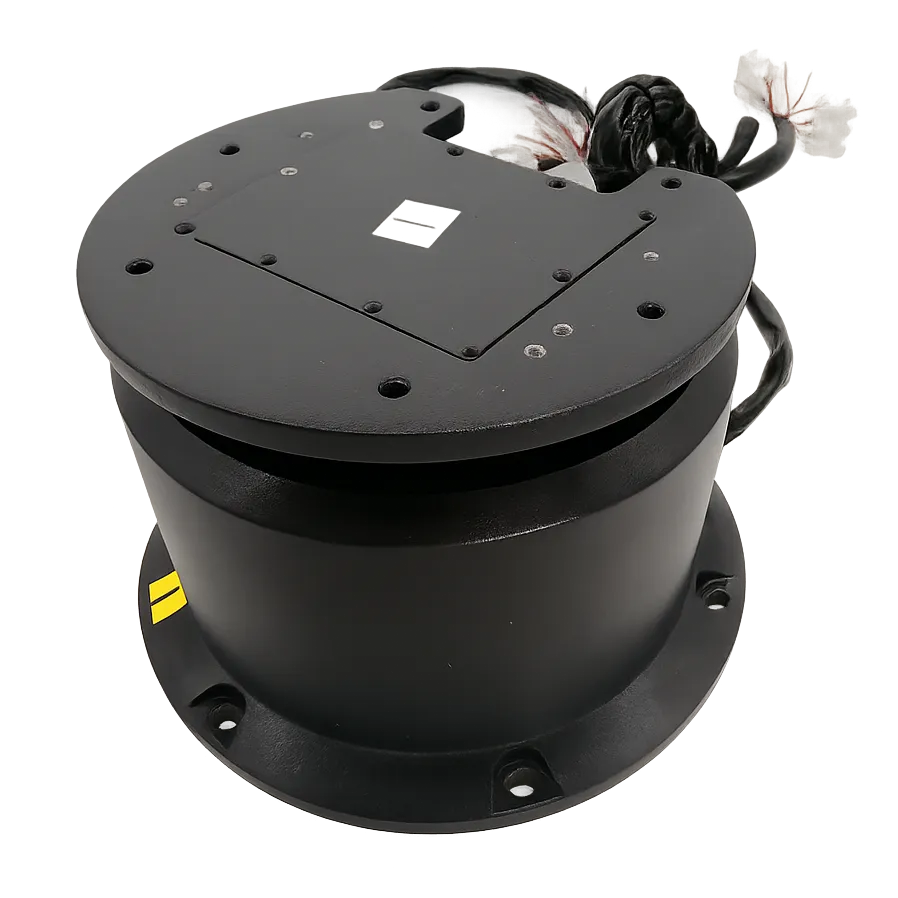

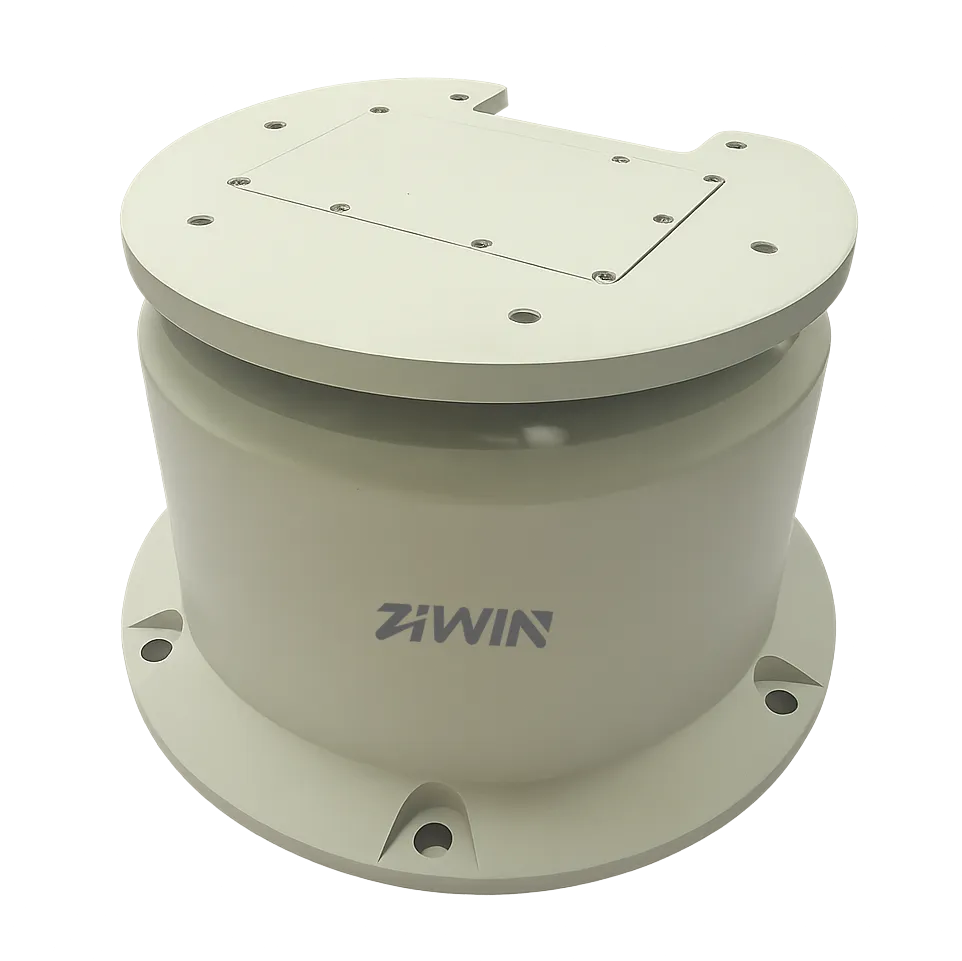

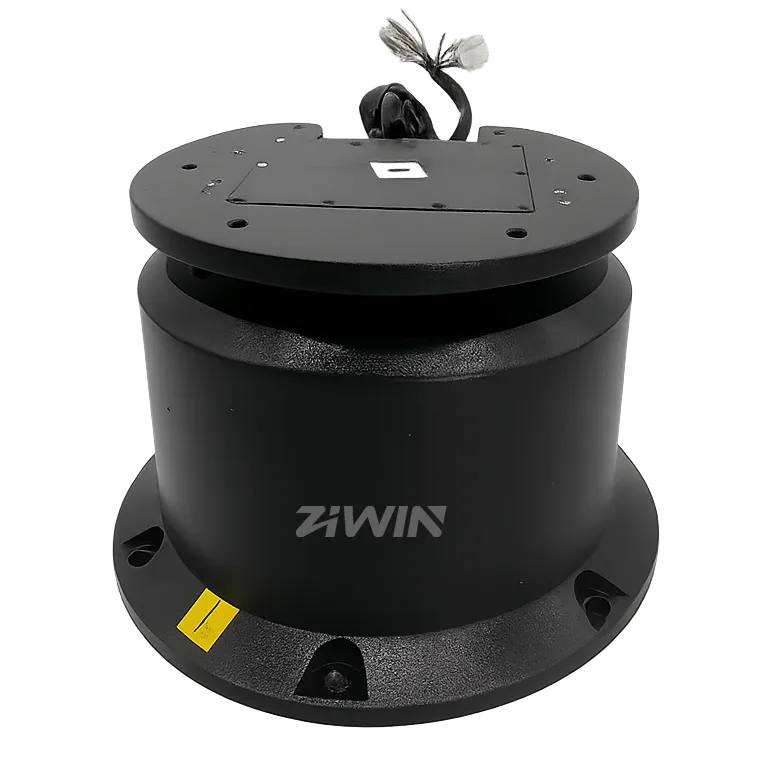

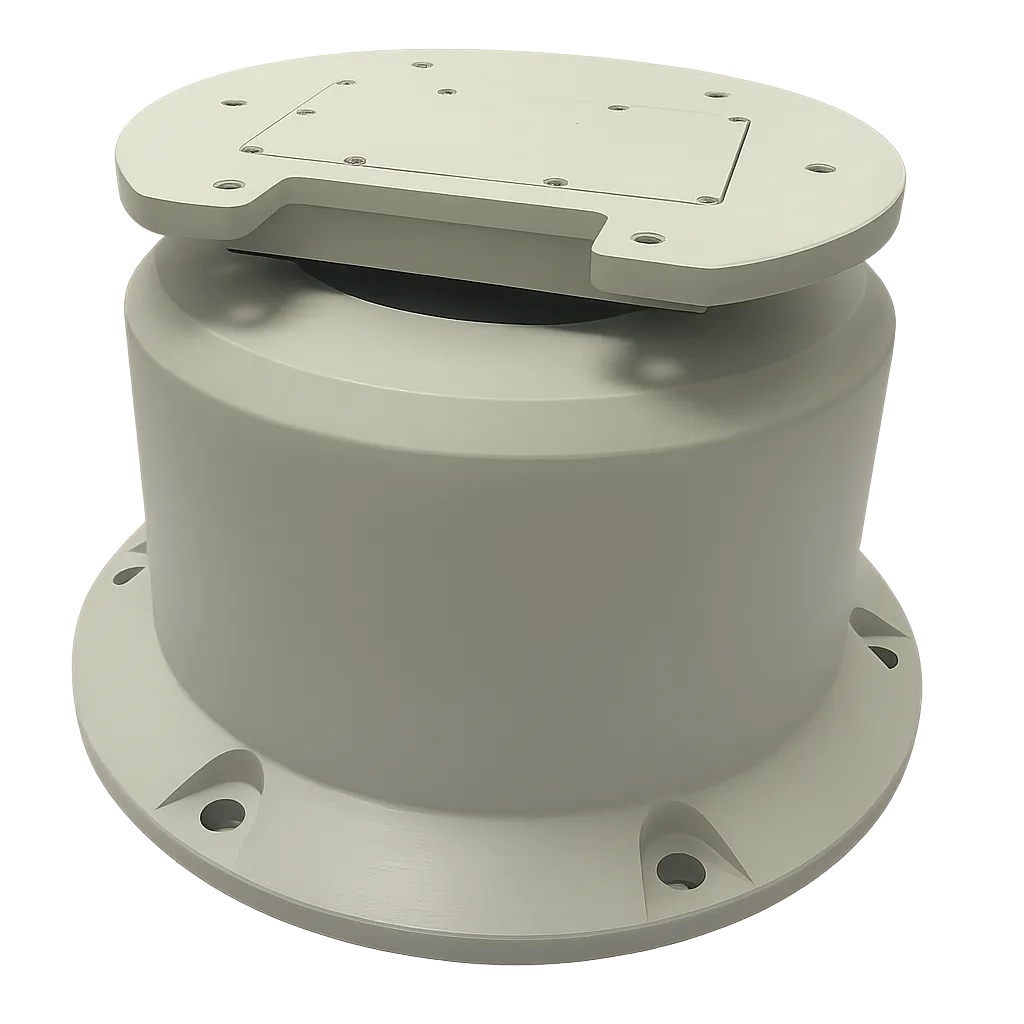

Features of ZN-SAP020Y Outdoor / Indoor 30kg(66.22lb) Load Pan Rotator & Positioner
★ Small pan unit, indoor/outdoor use
★ High-precision Worm Gear Transmission
★ Load capacity 30kg(66.22lb)
★ High-strength aluminum alloy construction
★ Pan Speed: 0.01°~20°/S(Up to 55°/S; the higher the rotation speed, the lower the payload capacity)
★ 360° continuous
★ Preset accuracy:±0.1°
★ Support position feedback
★ RS485/RS422 pan control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SAP020Y |
| Max. Load Capacity | 30kg(66.22lb) |
| Load Type | Top load |
| Transmission Mode | Worm Gear Transmission |
| Pan Range | Pan: 0°~360° |
| Pan Speed | 0.01°~20°/S |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Repeated Accuracy | ±0.1° |
| Auto Cruise | Support, 2 |
| Auto Scan | Support, 1 |
| Position Passback | Query Response or Real-time Response Transmission |
| Auto Repositioning | It can be set to automatically return to position within a range of 1 to 60 minutes. |
| Auxiliary Switch | Optional |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Communication Interface | RS485 (optional RS422/RS232/Network Interface/Wireless Remote) |
| Power Supply | DC24V (optional DC12V) |
| Power Consumption | ≤45W |
| Stsyic Power Consumption | ≤5W |
| Working Temperature | -25°C~+55°C |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Protection Level | IP66 |

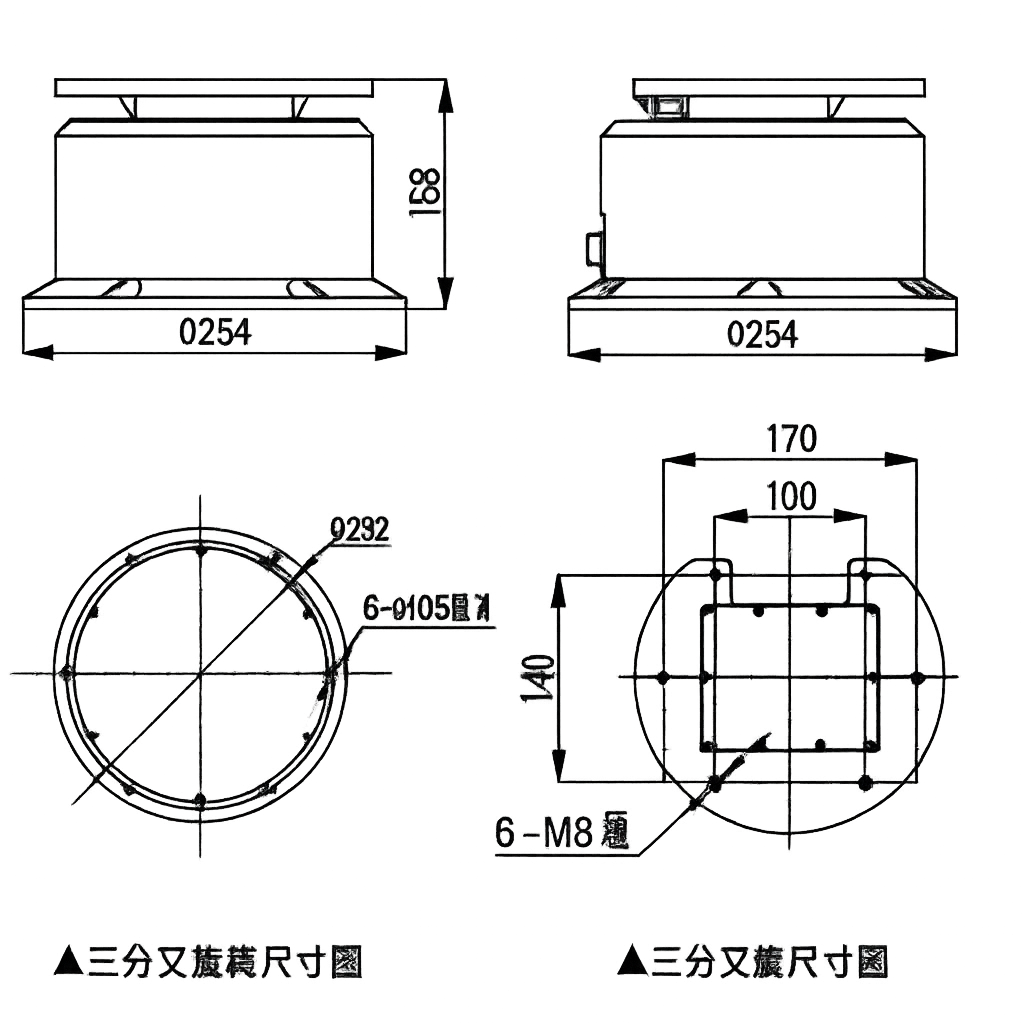

| Size | 254mm×254×160mm（L×W×H） |
| Weight | 5.5kg(12.2lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: What types of applications is the ZN-SAP020Y most suitable for?
A: With its 30kg heavy load capacity, the ZN-SAP020Y is ideal for mounting medium-to-large surveillance cameras, radar antennas, LiDAR systems, or other industrial sensors in demanding environments.
Q: How does the worm gear transmission benefit the operation of the unit?
A: The high-precision worm gear transmission provides stable movement, reduced vibration, and higher resistance to backlash, ensuring long-term reliability and smooth rotation under heavy loads.
Q: Can the unit provide position feedback for integration with automation systems?
A: Yes, the ZN-SAP020Y supports position feedback, which allows integration into advanced automation, tracking, and positioning systems.
Q: How many preset positions can be configured and recalled on this model?
A: The ZN-SAP020Y supports up to 200 preset positions, enabling operators to quickly switch to frequently used angles during monitoring or scanning tasks.
Q: What makes the ZN-SAP020Y reliable in harsh outdoor conditions?
A: The unit is designed with a high-strength aluminum alloy housing and an IP66 protection rating, offering resistance against dust, rain, and extreme weather for long-term outdoor deployment.
