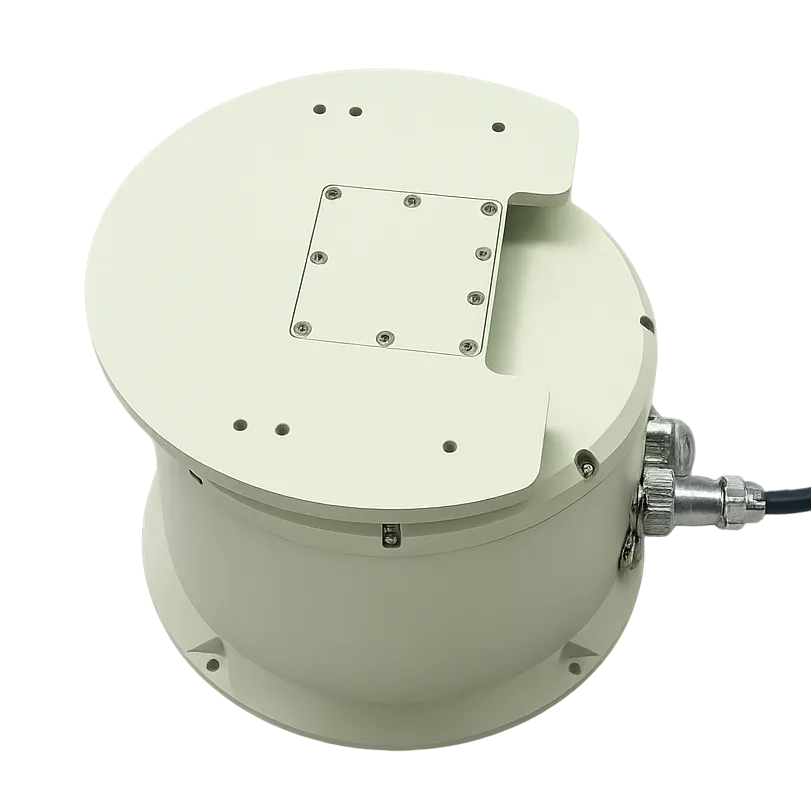

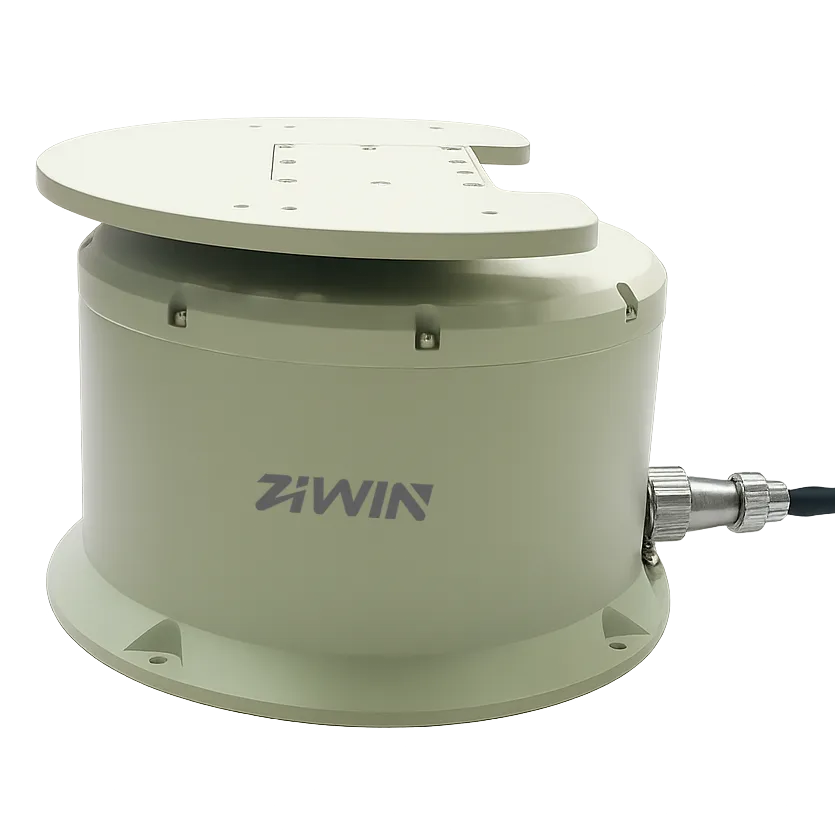

Features of ZN-SAP010Y Mini Outdoor/Indoor 15kg(33.11lb) Load Pan Rotator & Positioner
★ Small pan unit, indoor/outdoor use
★ High-precision Worm Gear Transmission
★ Load capacity 15kg(33.11lb)
★ High-strength aluminum alloy construction
★ Pan Speed: 0.01°~20°/S(Up to 55°/S; the higher the rotation speed, the lower the payload capacity)
★ 360° continuous
★ Preset accuracy:±0.1°
★ Support position feedback
★ RS485/RS422 pan control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SAP010Y |
| Max. Load Capacity | 15kg(33.11lb) |
| Load Type | Top load |
| Transmission Mode | Worm Gear Transmission |
| Pan Range | Pan: 0°~360° |
| Pan Speed | 0.01°~20°/S |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Repeated Accuracy | ±0.1° |
| Auto Cruise | Support, 2 |
| Auto Scan | Support, 1 |
| Position Passback | Query Response or Real-time Response Transmission |
| Auto Repositioning | It can be set to automatically return to position within a range of 1 to 60 minutes. |
| Auxiliary Switch | Optional |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Communication Interface | RS485 (optional RS422/RS232/Network Interface/Wireless Remote) |
| Power Supply | DC24V (optional DC12V) |
| Power Consumption | ≤30W |
| Stsyic Power Consumption | ≤5W |
| Working Temperature | -25°C~+55°C |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Protection Level | IP66 |
| Size | 180×180×132mm（L×W×H） |
| Weight | 3.5kg(7.11lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: What is the load capacity of the ZN-SAP010Y?
A: The ZN-SAP010Y supports payloads up to 15 kg, suitable for medium-weight devices such as cameras, antennas, and sensors.
Q: What is the rotation range and speed of this model?
A: It offers 360° continuous rotation with an adjustable speed from 0.02° to 60° per second, allowing both slow tracking and fast positioning.
Q: What kind of drive system does it use?
A: The ZN-SAP010Y is powered by a worm gear transmission, ensuring stable performance, high precision, and durability.
Q: How is the unit controlled?
A: It supports Pelco P/D protocol via RS485/RS422 interfaces, with functions such as presets, scans, and absolute positioning.
Q: Where can the ZN-SAP010Y be applied?
A: It is widely used in video surveillance, communication systems, laboratory setups, and industrial inspection, where reliable horizontal rotation and precise control are required.
