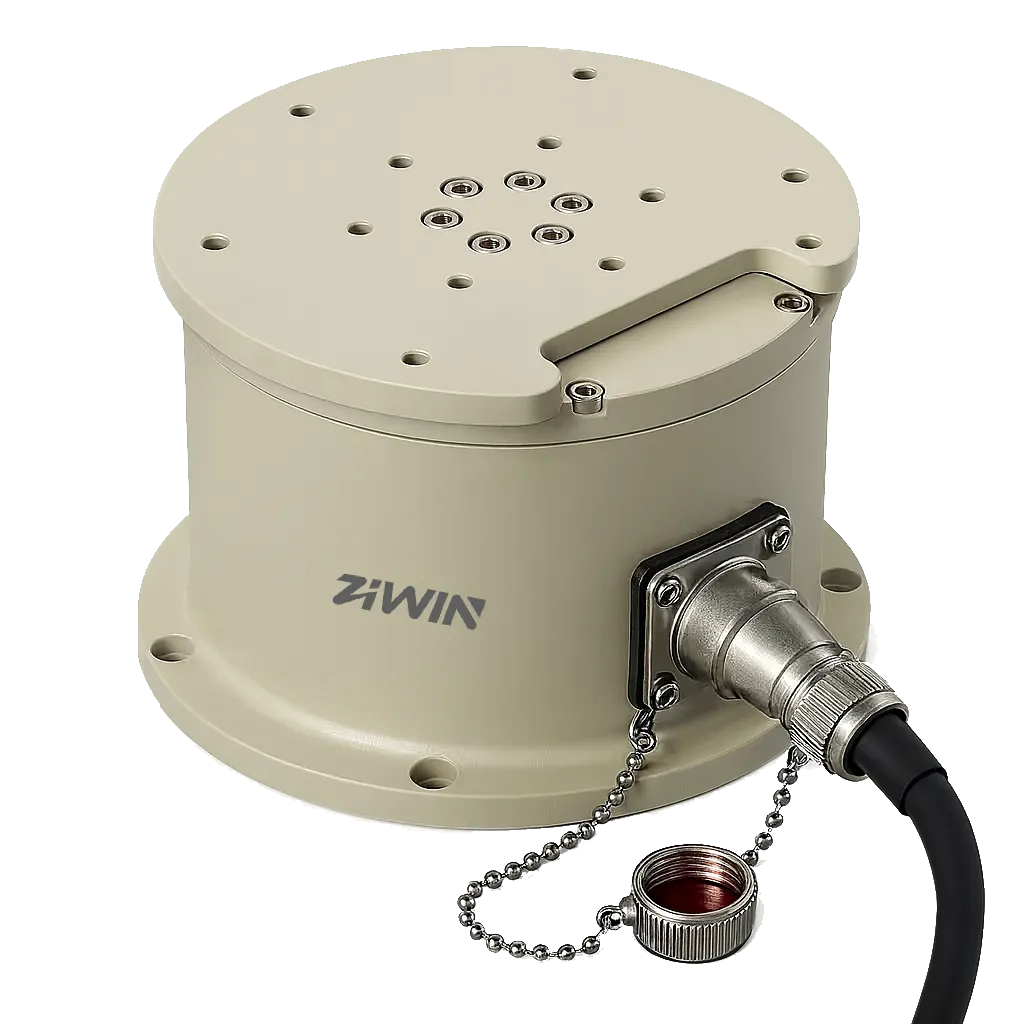

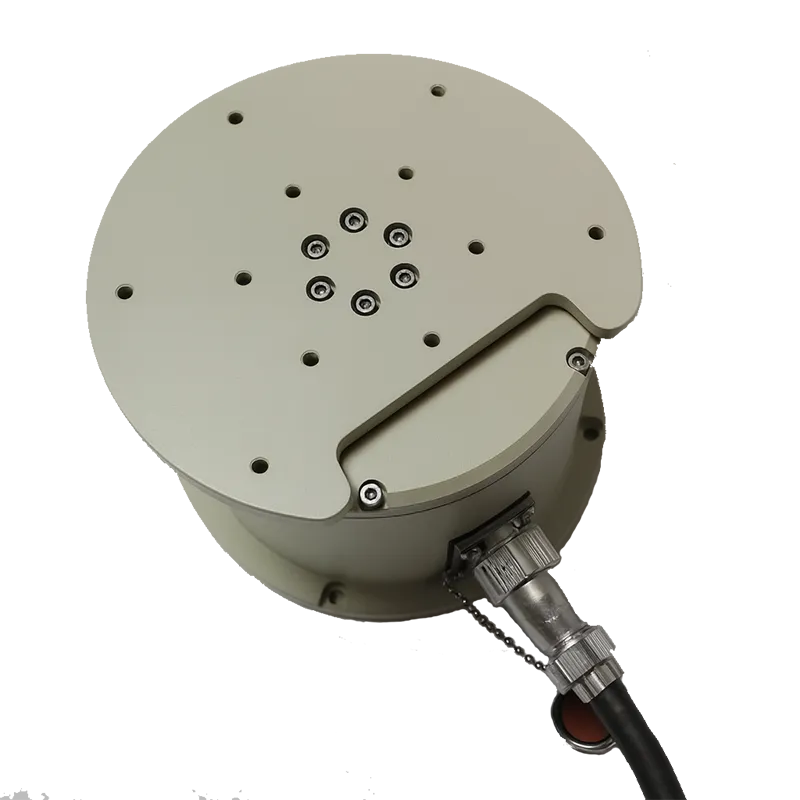

ZN-SAP003Y Outdoor / Indoor Single-Axis Pan Rotator & Positioner with 3kg(6.98lb) Load Capacity
★ Small pan unit, indoor/outdoor use
★ High-precision Worm Gear Transmission
★ Load capacity 3kg(6.98lb)
★ High-strength aluminum alloy construction
★ Pan Speed: 0.01°~20°/S(Up to 30°/S; the higher the rotation speed, the lower the payload capacity)
★ 360° continuous
★ Preset accuracy:±0.1°
★ Support position feedback
★ RS485/RS422 pan control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SAP003Y |
| Max. Load Capacity | 3kg(6.98lb) |
| Load Type | Top load |
| Transmission Mode | Worm Gear Transmission |
| Pan Range | Pan: 0°~360° |
| Pan Speed | 0.01°~20°/S |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Repeated Accuracy | ±0.1° |
| Auto Cruise | Support, 2 |
| Auto Scan | Support, 1 |
| Position Passback | Query Response or Real-time Response Transmission |
| Auto Repositioning | It can be set to automatically return to position within a range of 1 to 60 minutes. |
| Auxiliary Switch | Optional |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Communication Interface | RS485 (optional RS422/RS232/Network Interface/Wireless Remote) |
| Power Supply | DC24V (optional DC12V) |
| Power Consumption | ≤25W |
| Stsyic Power Consumption | ≤5W |
| Working Temperature | -10°C~+55°C |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Protection Level | IP66 |

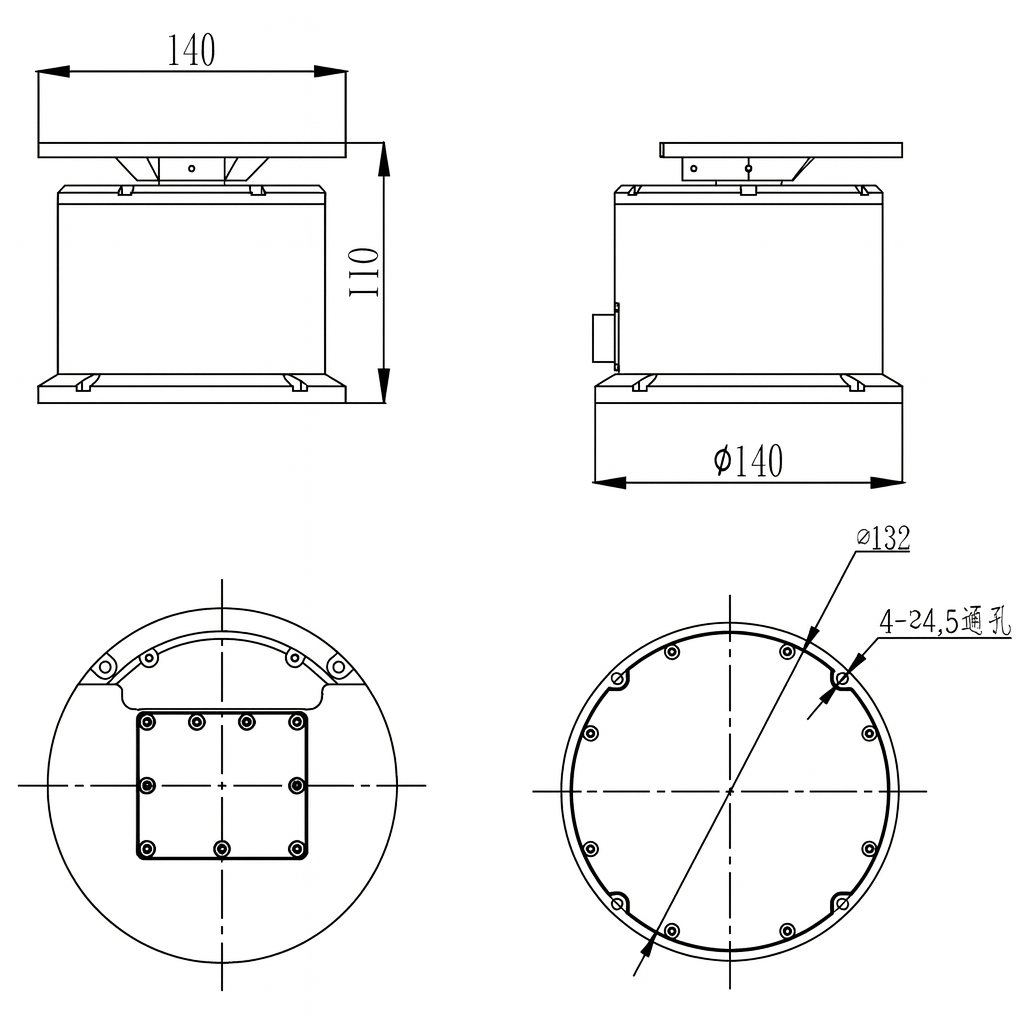

| Size | 140×140×102mm（L×W×H） |
| Weight | 2.1kg(4.1lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: What is the maximum load capacity of the ZN-SAP003Y pan unit?
A: The ZN-SAP003Y single-axis rotator supports a maximum load capacity of 3kg, making it ideal for mounting small cameras, sensors, and lightweight surveillance equipment.
Q: Can the ZN-SAP003Y be used outdoors?
A: Yes. This pan unit is designed for both indoor and outdoor applications, with a durable housing that ensures stable performance under different environmental conditions.
Q: What type of drive mechanism does this pan unit use?
A: The ZN-SAP003Y adopts a high-precision worm gear transmission, which guarantees smooth rotation, accurate positioning, and long-term reliability.
Q: What are the typical applications of the ZN-SAP003Y rotator?
A: This compact single-axis pan rotator is widely used in surveillance systems, robotic platforms, research projects, and other scenarios requiring light payload rotation.
Q: Is the ZN-SAP003Y easy to install?
A5: Yes. With its compact structure and multiple mounting holes, the ZN-SAP003Y is simple to integrate with brackets, tripods, or platforms for quick deployment.
