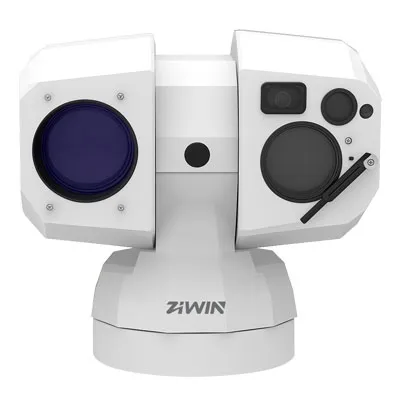

Features of ZN-DHY Series 5-in-1 Multi-Spectrum EO/IR PTZ Camera
Visible camera, thermal camera, rangefinder, laser illumination and wide angle camera, 5-in-1 Direct drive torque motor for high accuracy and fast rotation
● Full HD 8 MP 3840x2160@30fps real-time images
● 10-550mm, 55X optical zoom
● Thermal image 640x512, NETD sensitivity≤ 35mK @F1.0,300K
● 3km laser ranging, 1535nm wavelength
● 500m laser illumination
● Horizontal and vertical stabilization, dynamic adjustment to offset the external vibration of the pan-tilt unit and ensure the stability of image quality
● AI-AF deep learning , focusing on faster speed and more stable focus
● Support backlight compensation, automatic electronic shutter and other functions to adapt to different monitoring environments
● Support 3DNR, strong light suppression, heat wave removal
● Supports Max.512G Micro SD storage
● Supports ONVIF access
● Support human, non-motor vehicle, motor vehicle, boat and bird detection algorithm
| Model | ZN-DHY Series | ||||||
| Thermal Camera | |||||||
| Image Sensor | Vanadium oxide non-cooling infrared detector | ||||||
| Effective Pixels | 640x512 | ||||||
| Pixel Pitch | 12µm | ||||||
| NETD | ≤35 mK @F1.0, 300K | ||||||
| Spectral Range | 8 to 14 µm | ||||||
| Lens type | Fixed or Zoom lens | ||||||
| Focal length | 50mm | 75mm | 100mm | 25-75mm | 15-100mm | ||
| Digital zoom | 2X, 4X, 8X | ||||||
| Aperture | F1.0 | 25mm(F0.9) ~ 75mm(F1.1) | 15mm(F0.85) ~ 100mm(F1.25) | ||||
| FOV (H x V) | 8.8°x7.0° | 5.9°x4.7° | 4.4°X3.5° | 17.5°X14.0° ~ 5.9°X4.7° | 28.7°X 23.1° ~ 4.4° X 3.5° | ||
| Focus Range | 3m ~ ∞ | 5m ~ ∞ | 10m ~ ∞ | 5m ~ ∞（25mm） 10m ~ ∞（75mm） | 5m ~ ∞（15mm） 10m ~ ∞（100mm） | ||
| Image Setting | Brightness, contrast, and gamma are adjustable through the client or browser | ||||||
| Pseudo-color Setting | 10 modes available, white hot/ black hot/golden autumn/rainbow/iron red, etc. | ||||||
| Image Enhancement | Supports 0-255 level adjustment | ||||||
| Bad Pixel Correction | Support | ||||||
| Image Noise Reduction | Support | ||||||
| Image Flip | 180°, Mirror | ||||||
| Image Stabilization | Electronic anti-shake, 1-3 level adjustment | ||||||
| Visible Camera | |||||||
| Sensor type | 1/2.8" progressive scan CMOS | 1/1.8" progressive scan CMOS | 1/1.25" progressive scan CMOS | ||||
| Resolution | 1920x1080@25/30fps 60fps (optional) | 2688x1520@25/30fps 60fps (optional) | 3840×2160@25/30fps 60fps (optional) | ||||
| Min. Illumination | Color: 0.0005 Lux; B/W: 0.0001Lux | ||||||
| Shutter Speed | 1/25s to 1/100,000s; Support delayed shutter | ||||||
| Focal length | 7~322mm | 6.6~264mm | 10~550mm | ||||
| Aperture | F1.8~F6.5 | F1.61~F5.19 | F1.5~F5.5 | ||||
| H:42-1° (wide-tele) | H:59.20-1.93° (wide-tele) | H:58.40-1.20° (wide-tele) | |||||
| V:24-0.6° (wide-tele) | V:34.82-1.14° (wide-tele) | V:34.90-0.70° (wide-tele) | |||||
| D:47.7-1.26° (wide-tele) | D:68.68-2.24° (wide-tele) | D:65.10-1.40° (wide-tele) | |||||
| Image Settings | Saturation, Brightness, Contrast and Sharpness can be adjusted via the client-side or browser | ||||||
| BLC,HLC,WDR | Support | ||||||
| 3DNR | Support | ||||||
| Defog | E-Defog | ||||||
| Day/Night Switch | Automatic, manual, timing, alarm trigger | ||||||
| Image overlay | Support BMP 24-bit image overlay, customizable area | ||||||
| Region of interest | Support three streams and four fixed areas | ||||||
| Electronic slow shutter | X2~X24 | ||||||
| Distortion correction | Support, 0-100 level adjustment | ||||||
| Image Stabilization | Electronic anti-shake, 1-3 level adjustment | ||||||
| Illumination | |||||||
| Illumination distance | ≥500m | ||||||
| Wavelength | 850nm±10nm (940nm optional) | ||||||
| The Angle of the light | Electrically synchronized zoom | ||||||
| Far Angle 2°: effective distance>500m, spot diameter <36m | |||||||
| Near Angle 70°: effective distance>40m | |||||||
| Time to change ratio | ≤ 3 seconds (far to near) | ||||||
| Rangefinder | |||||||
| Wavelength | 1535nm | ||||||
| Range | 15m~3000m | ||||||
| Accuracy | ±1m | ||||||
| Resolution | 0.1m | ||||||
| Frequency | 1Hz | ||||||
| Wide Angle Camera | |||||||
| Sensor type | 1/1.8” Progressive Scan CMOS | ||||||
| Resolution | 2688x1520 | ||||||
| Focal Length | 4mm | ||||||
| Field of View | H: 93.1° V:49.6° D:110.8° | ||||||
| PTZ | |||||||
| Transmission Mode | Direct drive torque motor | ||||||
| Rotation Range | Pan: 360° continuous rotation; Tilt: ±90° | ||||||
| Speed Range | Pan: 0.09°~120°/s (expandable), Tilt: 0.09°~110°/s (expandable) | ||||||
| Maximal Acceleration | Pan: 300°/s², Tilt: 240°/s² | ||||||
| Preset position | 199 (standard user preset bits) +255 (extended user preset bits) The number of preset bits can be increased to 512 according to the customer | ||||||
| Scan pattern | Preset point scanning (adjustable preset time, adjustable preset scanning speed), horizontal two-point scanning (adjustable scanning speed, adjustable scanning time) | ||||||
| Locate function | Absolute Angle positioning (adjustable positioning speed), 3D positioning (adjustable positioning speed) | ||||||
| Image | |||||||
| Video coding | H.264 and H.265 encoding, M-JPEG | ||||||
| Video compression | 32 Kbps~16Mbps | ||||||
| Main stream | Thermal: 25fps (1920x1080, 1280x1024, 640x512) | ||||||
| Visible: 25fps/30fps (3840x2160, 2688x1520, 1920x1080, 1280x960, 1280x720)@8MP | |||||||
| 25fps/30fps (2688×1520, 2560x1440, 1920x1080, 1280x960, 1280x720)@4MP | |||||||
| 25fps/30fps (1920x1080, 1280x960, 1280x720)@2MP | |||||||
| Sub-stream | Thermal: 25fps (640x512) | ||||||
| Visible: 25fps (1280×720, 704x576, 640x480, 352x288) @8MP/4MP | |||||||
| 25fps (704x576, 640x480 ,352x288) @2MP | |||||||
| 30fps (1280×720, 704x480, 640x480, 352x240) @8MP/4MP | |||||||
| 30fps (704x480, 640x480, 352x240) @2MP | |||||||
| Third stream | Visible: 25fps (704x576, 640x480, 352x288) | ||||||
| 30fps (704x480, 640x480, 352x240) | |||||||
| Picture in picture | Supports overlay display of picture-in-picture | ||||||
| H.265 picture quality | Main Profile | ||||||
| H.264 picture quality | BaseLine Profile / Main Profile / High Profile | ||||||
| Audio coding | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | ||||||
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) | ||||||
| Network | |||||||
| Network Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | ||||||
| On-board Storage | Supports Micro SD/SDHC /SDXC card (512G) | ||||||
| Interface Protocols | ONVIF (PROFILE S, PROFILE G), GB28181-2016 | ||||||
| Smart Function | |||||||
| General events | Mobile detection, video blocking, disk full, illegal access | ||||||
| Smart intelligence | Area intrusion, boundary detection, leaving the area, wandering detection, personnel gathering, rapid movement, item left detection, audio anomaly | ||||||
| Smart detection | Humanoid detection, non-motor vehicle detection, motor vehicle detection, boat detection, flying bird detection | ||||||
| General | |||||||
| Power Supply | DC24V±20% | ||||||
| Power protection | TVS 8000V lightning protection, surge protection, anti-sudden wave, in line with GB/T17626.5 level 4 standard | ||||||
| Ingress Protection | IP66 | ||||||
| Working Temperature | -40℃~65℃, humidity less than 90% (no condensation) | ||||||

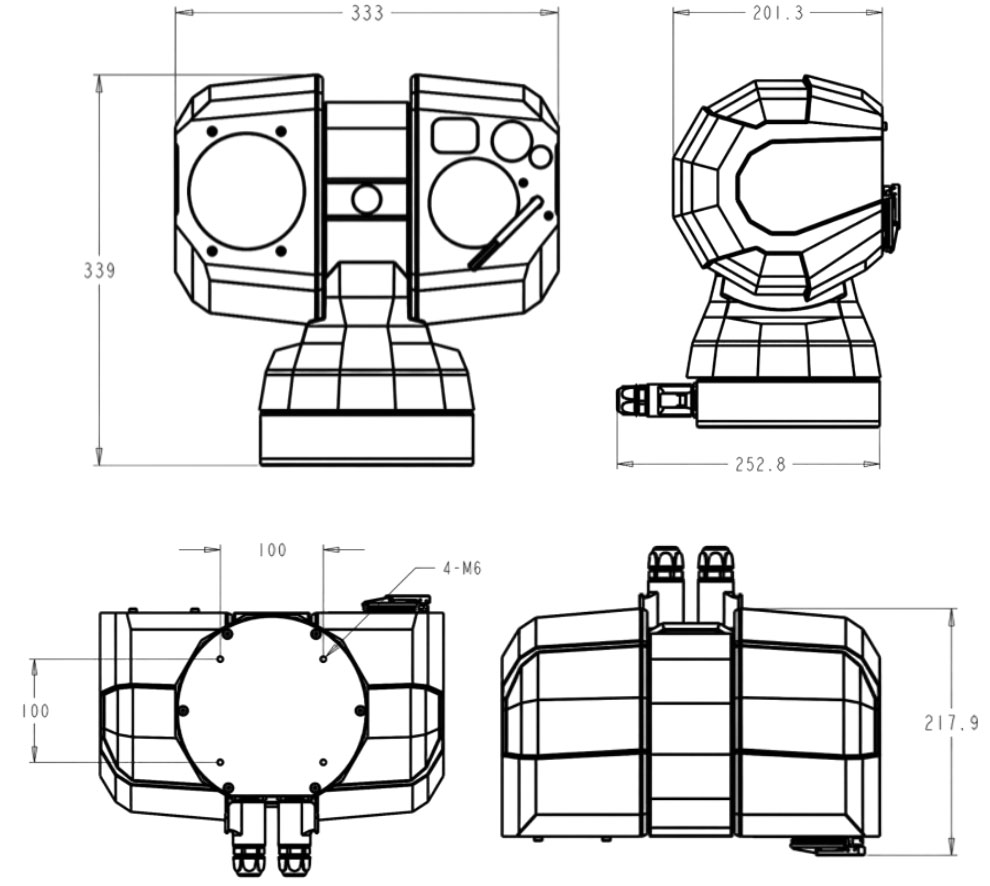

| Size(WxHxD) | 333mm x 339mm x 252.8mm | ||||||
| Weight | Configuration dependent， ≤12.5 KG | ||||||
| Ordering Information | |||||||
| Model | Description | ||||||
| ZN-DHY-M01AXXXXX | Thermal: 50mm | Visible: 6.6~264mm, 1/1.8” | |||||
| ZN-DHY-M10AXXXXX | Thermal: 75mm | Visible: 7~322mm, 1/2.8” | |||||
| ZN-DHY-M22AXXXXX | Thermal: 100mm | Visible: 10~550mm, 1/1.25” | |||||
| ZN-DHY-M30AXXXXX | Thermal: 25-75mm | Visible: 7~322mm, 1/2.8” | |||||
| ZN-DHY-M32AXXXXX | Thermal: 15-100mm | Visible: 10~550mm, 1/1.25” | |||||
| Optional Configurations | Wide angle camera; Rangefinder; Gyroscope; GPS;Digital compass;etc. | ||||||
| DRI | |||||||
| Lens | Vehicle (4mx1.4m) | Human (1.8mx0.5m) | |||||
| Detection | Recognition | Identification | Detection | Recognition | Identification | ||
| 50mm | 6500m | 1700m | 850m | 2600m | 660m | 330m | |
| 75mm | 10200m | 2500m | 1280m | 3900m | 980m | 490m | |
| 100mm | 13600m | 3400m | 1700m | 5200m | 1300m | 650m | |
| 1. Options such as wide-angle camera,laser rangefinder, gyroscope, GPS, digital compass, etc., are configured separately, please consult specialist for detailed information. Further models can be configured, please consult specialists for detailed information. | |||||||
| 2. This table is only for reference and the performance may vary according to different environment.The optimal human detection, recognition, and identification distances are calculated according to Johnson's Criteria. | |||||||
| Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels. | |||||||
| Recognition Range: In order to classify the object (animals, human, vehicle etc.), the object must be covered by 6 or more pixels. | |||||||
| Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more pixels. | |||||||
1. Q：What types of applications is this 5-in-1 multi sensor PTZ camera best suited for?
A：This camera is ideal for long-range perimeter security, border and coastal surveillance, airports, ports, oil and gas facilities, forest fire prevention, and other critical infrastructure requiring 24/7 day-night monitoring.
2. How does the camera perform in strong wind or vibration environments?
The built-in gyro stabilization and direct-drive torque motor effectively compensate for vibration caused by wind, towers, or mobile platforms, ensuring stable imaging and precise target tracking in real outdoor conditions.
3. Can this camera accurately detect and identify targets at long distances?
Yes. The combination of high-zoom visible imaging, low-NETD thermal sensing, laser ranging, and synchronized optics enables reliable detection, tracking, and identification of people, vehicles, boats, and aerial targets over long distances.
4. How does the system support night surveillance and low-visibility conditions?
Thermal imaging detects targets in complete darkness, fog, smoke, or rain, while laser illumination and ranging enhance night identification accuracy, making the system effective in complex and low-visibility environments.
5. Is the camera easy to integrate into existing security systems?
The camera supports ONVIF and standard network protocols, allowing seamless integration with most VMS platforms, AI analytics systems, and optional radar or third-party sensors for multi-sensor security solutions.
