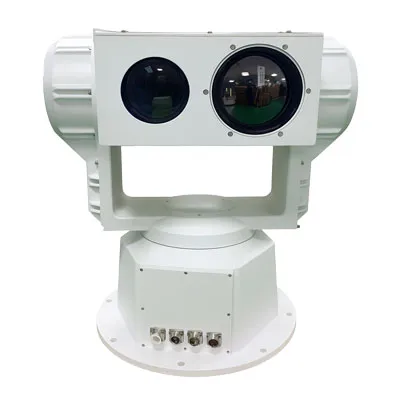

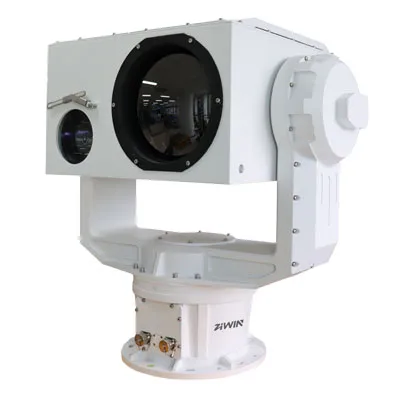

Features of ZN-BHY12510-4292-ES Bi-Spectrum High Accuracy PTZ Camera
● 1280x1024, 50Hz Thermal imaging resolution
● 20-100mm 5x thermal lens, 92x optical zoom lens
● Max 200°/s fast rotation speed and 0.02° accuracy can track land/air/sea target
● Function of life index recording for thermal camera
● Front-end auto-tracking functions for high accuracy target tracking
● Special IP66 design enable camera can work in salty/strong light/water spray/ 33m/s wind environment
● One IP address optional: Visible, thermal camera can view, set and control by one IP address
● Operating Temperature: -40℃～+60℃(-40°F ~ +140°F)
| Model | ZN-BHY12510-4292-ES |
| Thermal Camera | |
| Detection | Vehicle 8,400 m Human 2,400 m |
| Identification | Vehicle 3,400 m Human 1,000 m |
| Image Sensor | 5th generation uncooled FPA sensor |
| Effective Pixels | 1280x1024, 50Hz |
| Pixel Size | 12μm |
| NETD | ≤40mK |
| Spectral Range | 7.5 ~ 14μm, LWIR |
| Focal length | 20-100mm 5X |
| Digital Zoom | 1~64X Continuous Zoom |
| Visible Camera | |
| Image Sensor | 1/1.8" starlight progressive scan CMOS |
| Max. Resolution | 1920 (H)×1080 (V), 2MP |
| Min. Illumination | 0.05Lux (Color), 0.01Lux(B/W) |
| Lens Type | Optical autofocus lens |
| Focal Length | 4MP,6.1 to 561mm, 92x optical zoom |
| Image Stabilization | Support |
| Defog | Support |
| Day & Night | Day/Night/Auto/Custom/Schedule |
| Focus Control | Manual/Auto |
| Digital Zoom | 16X |
| Image | |
| Image Stabilization | Support Electronic Image Stabilization |
| Enhance | Stable operational temperature without TEC, starting time less than 4 seconds |
| SDE | Support SDE digital image processing |
| Pseudo Color | 16 pseudo color and B/W, B/W inverse |
| AGC | Support |
| Ranging Ruler | Support |
| GPS&Electronic Compass | |
| GPS | Accuracy: ＜2.5m; Autonomous 50%: ＜2m (SBAS) |
| Electronic Compass | Range: 0 ~ 360 °, accuracy: heading: 0.5 °, pitch: 0.1 °, roll: 0.1 °, resolution: 0.01 ° |
| Enhance | |
| Strong Light Protect | Support |
| Temperature Correction | Thermal imaging clarity is not affected by temperature |
| Scene Mode | Support multi-configuration scenarios, adapt to different environment |
| Lens Servo | Support lens preset, focal length return and focal length location |
| Azimuth Information | support angle real-time return and positioning; azimuth video overlay real-time display |
| Diagnostic Functions | Disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (insufficient Space, error, no SD card), video masking alarm, anti-sun damage (threshold, masking time can be set) |
| Life Index Recording | Working time, shutter times, ambient temperature, core device temperature |
| Power off memory | Support, can restore power off state |
| Remote maintenance | remote restart, remote upgrade function, convenient system maintenance |
| Intelligent | |
| Fire Detection | Threshold 255 levels, targets 1-16 can be set, hot spot tracking |
| AI Analysis | Support intrusion, boundary crossing, entering/leaving area, motion, wandering, people gathering, fast moving, target tracking, items left behind and items taken detection; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering function; support target temperature filtering |
| Auto-tracking | Single/multi scene tracking; panoramic tracking; alarm linkage tracking |
| AR Fusion | 512 AR intelligent information fusion |
| Distance Measure | Support passive distance measurement |
| Image fusion | Support 18 kinds of double light fusion mode, support picture-in-picture function |
| PTZ | |
| Accuracy | 0.02°, pulse precision motor, digital angle measurement sensor servo (0.002° Optional） |
| Pan Range | 0° to 360° endless |
| Pan Speed | 0.01~80°/S Max 200°/S |
| Tilt Range | -90～+90° |
| Tilt Speed | 0.01~60°/S |
| Preset | 255 |
| Enhance | Fan/Wiper/Heater attached |
| Split | Upper and lower split design, can be packaged and transported, combined quickly |
| Zero Setting | support the setting of pan and pitch zero |
| Gyro Stable (option) | Stability accuracy-2mrad (RMS), two-axis gyro stable, shake≤±10° |
| Position Time | less than 4s |
| Angle Feedback | support real-time / query return and positioning functions of horizontal and pitch angles |
| Network | |
| Video Compression | H.264 and H.265 encoding, M-JPEG |
| Thermal Resolution | 1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 |
| Visible Resolution | 2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 |
| Record Rate | 32Kbps～16Mbps |
| Audio encoding | G.711A/ G.711U/G726 |
| OSD settings | Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF |
| General | |
| Interface | RS-485（PELCO D protocol, baud rate 2400bps）,RS-232（option）,RJ45 |
| Video Output | PAL/NTSC |
| Power Supply | DC48V |
| Operate Temperature | -40℃～+60℃ (-40°F~ +140°F) |
| Storage Temperature | -45℃～+75℃ |
| Storage Conditions | 0% ~ 90% |
| Ingress Protection | IP67 |
| Housing | PTA three-resistance coating, Seawater corrosion resistance, Aviation waterproof plug |
| Wind resistance | spherical, anti-shake, anti-33m/s strong wind |
| Anti-fog/salty | PH 6.5～7.2 (No less than 700 hours) |
| Power | 250W (Peak)/ 50W (Stable) |

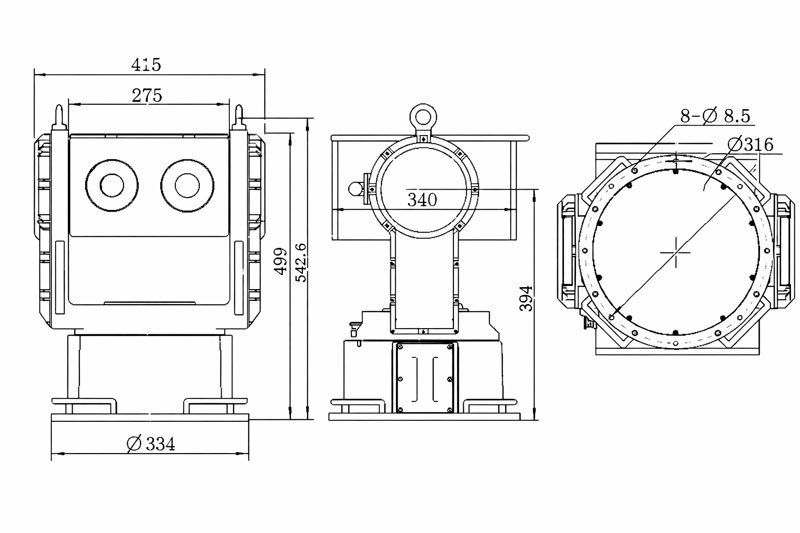

| Size | 230mm×385mm×418.5mm |
| Weight | 17KG (37.48 lbs) |
Q：What real-world applications require such high PTZ accuracy and fast rotation speed?

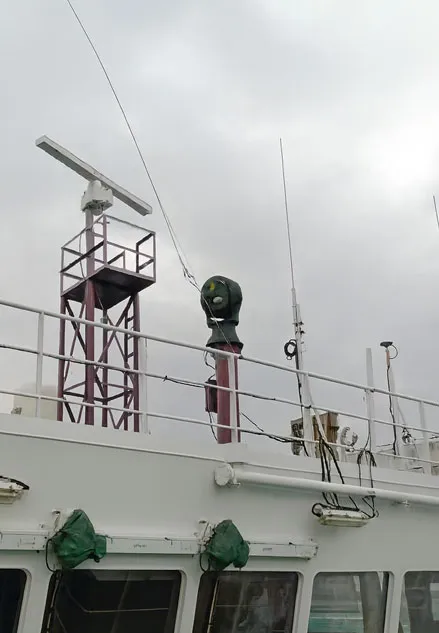

A：This camera is designed for applications such as coastal defense, port security, airport perimeter monitoring, border surveillance, and long-range facility protection, where fast-moving targets must be tracked accurately over wide areas.
Q：How does the camera maintain stable tracking in strong wind or harsh coastal environments?
A：The system uses a high-precision servo PTZ with optional gyro stabilization and an IP66, anti-corrosion housing, allowing stable operation and precise tracking even under strong wind, salt spray, and vibration conditions.
Q：Can the camera effectively detect and identify targets at very long distances?
A：Yes. The high-resolution thermal sensor combined with long-range visible zoom enables early detection and reliable identification of humans, vehicles, vessels, and airborne targets across several kilometers in real outdoor environments.
Q：How does this camera support day-and-night and all-weather surveillance?
A：Thermal imaging ensures target detection in complete darkness, fog, rain, or haze, while the visible camera provides detailed identification during daytime or clear conditions, ensuring uninterrupted 24/7 situational awareness.
Q：Is the system suitable for integration into large or complex security networks?
A：Yes. The camera supports ONVIF and multiple network protocols, single-IP control for thermal and visible channels, and remote maintenance functions, making it easy to integrate into existing VMS platforms and multi-sensor security systems.
