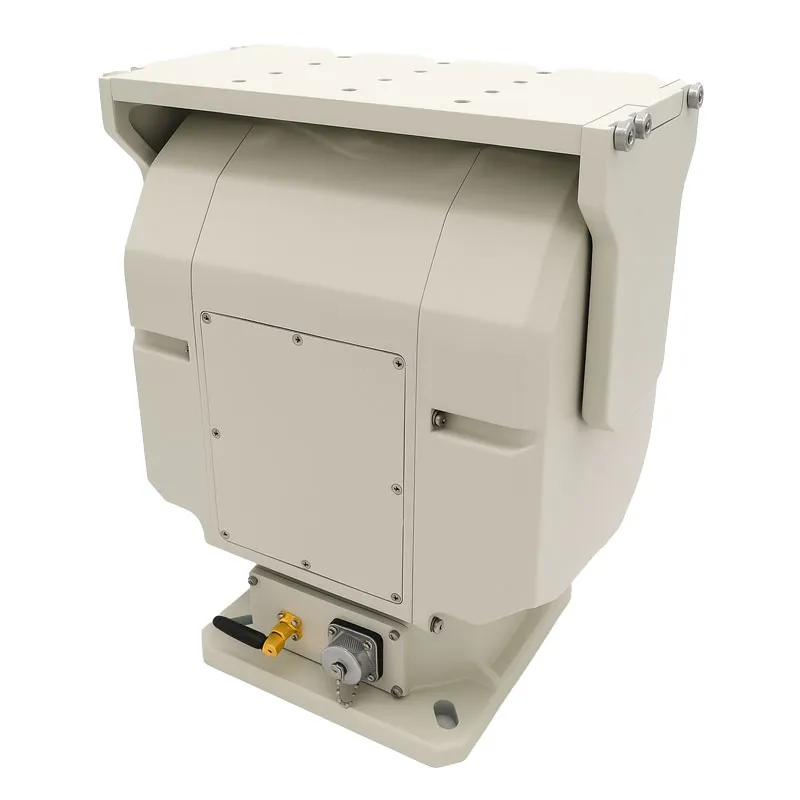

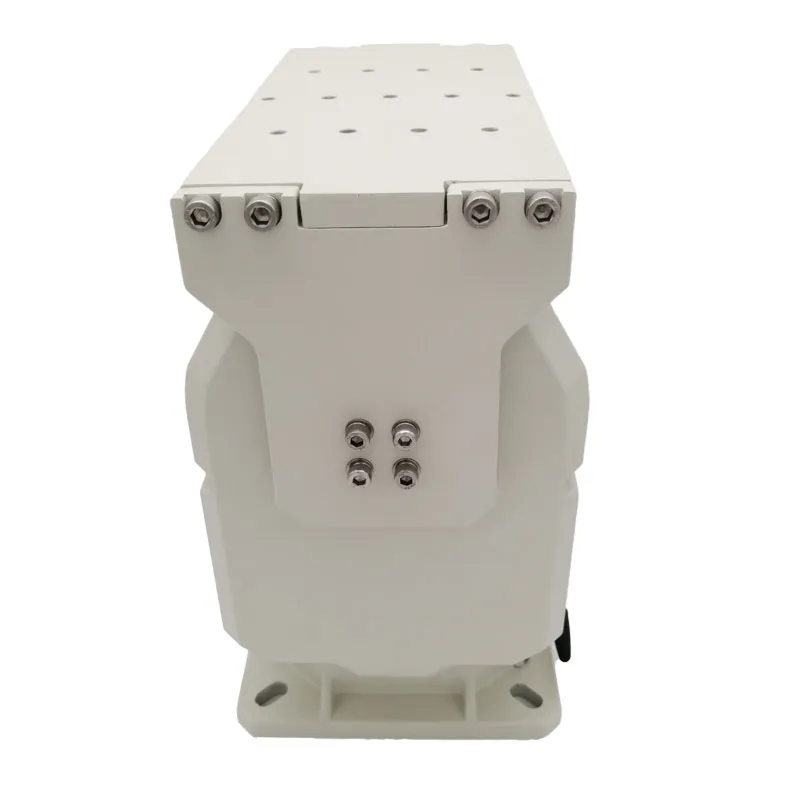

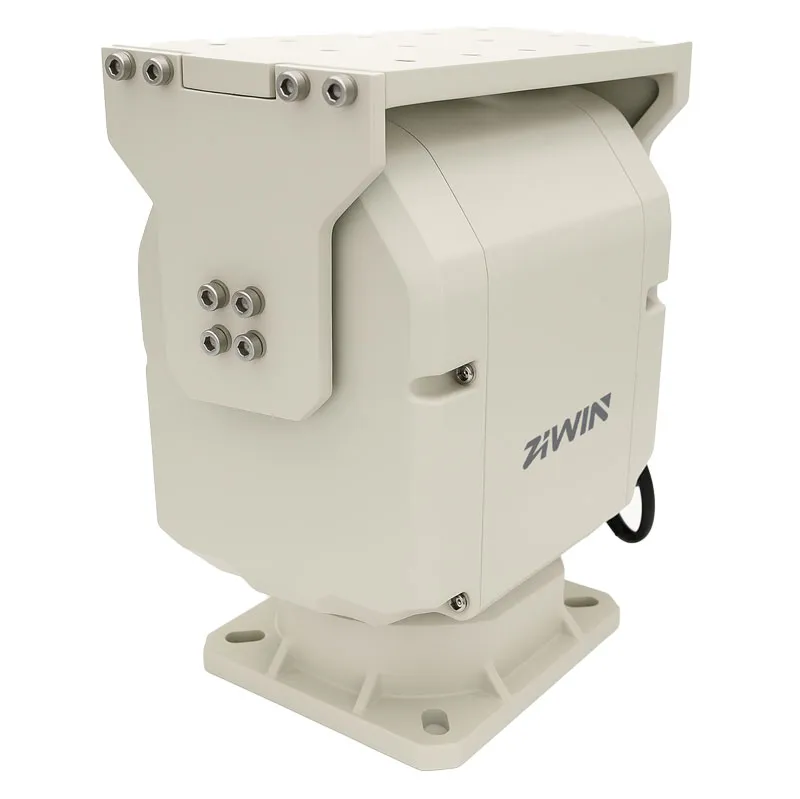

Features of ZN-SPM25Y Variable Speed Pan Tilt Positioner
Medium pan tilt unit, indoor/outdoor use
High-precision Worm Gear Transmission
Support Power-off Self-locking
Max.Load Capacity 22kg(48.8lb)
High-Strength Aluminum Alloy Construction
Pan Speed: 0.01°~20°/S (Up to 55°/S; the higher the rotation speed, the lower the payload capacity )
Tilt Speed: 0.01°~10°/S (Up to 30°/S; the higher the rotation speed, the lower the payload capacity)
360° continuous(Customizable rotation range from 0° to 340°)
Tilt Range: -60°~20°(Optional limited rotation, with a maximum angle range from -90° to +90°)
Preset Position: 200
Preset accuracy:±0.1°
Support Position Feedback and Absolute Position
RS485/RS422 Pan Control with Pelco P/D Protocol
Protection Grade: IP66 Waterproof
| Model | ZN-SPM25Y |
| Max. Load Capacity | 22kg(48.8lb) |
| Load Type | Top load, Side load |
| Transmission Mode | Worm Gear Transmission |
| Pan Speed | 0.01°~20°/S |
| Tilt Speed | 0.01°~10°/S |
| Pan Range | 360° continuous |
| Tilt Rang | -60° ~20° |
| Presets | 200 |
| Preset Accuracy | ±0.1° (optional ±0.01°) |
| Auto Cruising | Support, 2 (each with 40 presets) |
| Auto Scan | Support, 1 |
| Lens Preset Position | Optional |
| Lens Control Speed | Optional |
| Auto Homing | It can be set up within the period of 1~60 mins |
| Power on Self-test | Support |
| Position Passback | Query Response or Real-time Response Transmission |
| Auxiliary Switch | Optional(1~2 Groups) |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Self-locking | Support |
| Interface | |
| Communication Interface | RS422 (optional RS485/RS232/Network Interface) |
| Top Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power output cable (2A) |
| Bottom Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power input cable (system power supply)，One RS422 cable (pan-tilt communication). |
| General | |
| Power Supply | DC24V (optional DC48V/AC220V) |
| Power Consumption | ≤60W |
| Static Power Consumption | ≤2W |
| Grade Protection | IP66 |
| Working Temperature | -25℃~+65℃ |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40℃~+65℃ |

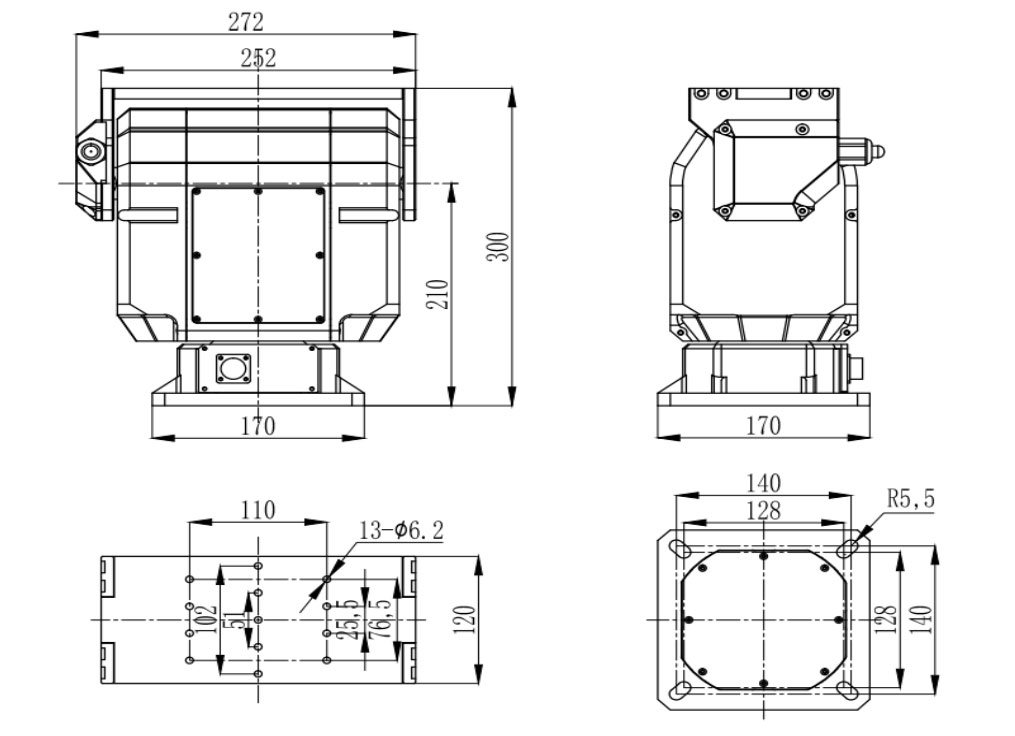

| Size | 272×170×300mm（L×W×H） |
| Weight | 11kg(24.4lb) |
Q: What types of camera modules can the ZN-SPM25Y support?
A：The ZN-SPM25Y pan-tilt unit can be equipped with medium-to-long focal length zoom camera cores or thermal imaging modules, making it ideal for long-range observation and target tracking tasks.
Q：What are the typical applications of the ZN-SPM25Y pan-tilt unit?
A：This model is commonly used in robotic vehicles, forest fire prevention, maritime surveillance, border observation posts, and UAV ground stations for medium-to-long distance monitoring.
Q：How is the mechanical structure optimized for heavy payloads?
A：With a 22 kg maximum load capacity and high-precision worm-gear transmission, the unit delivers smooth movement and stable support for large optical or thermal modules under varied angles.
Q：How does the ZN-SPM25Y perform in harsh outdoor conditions?
A：It features a high-strength aluminum alloy body and IP66 waterproof protection, ensuring durable performance in dust, rain, salt-spray, and vibration-prone environments.
Q：Does it support integration with intelligent or robotic systems?
A：Yes. It supports RS422/RS485/RS232 communication interfaces and ModBus-RTU/Pelco P/D protocols, allowing seamless integration with AI-based control systems and robot platforms.
