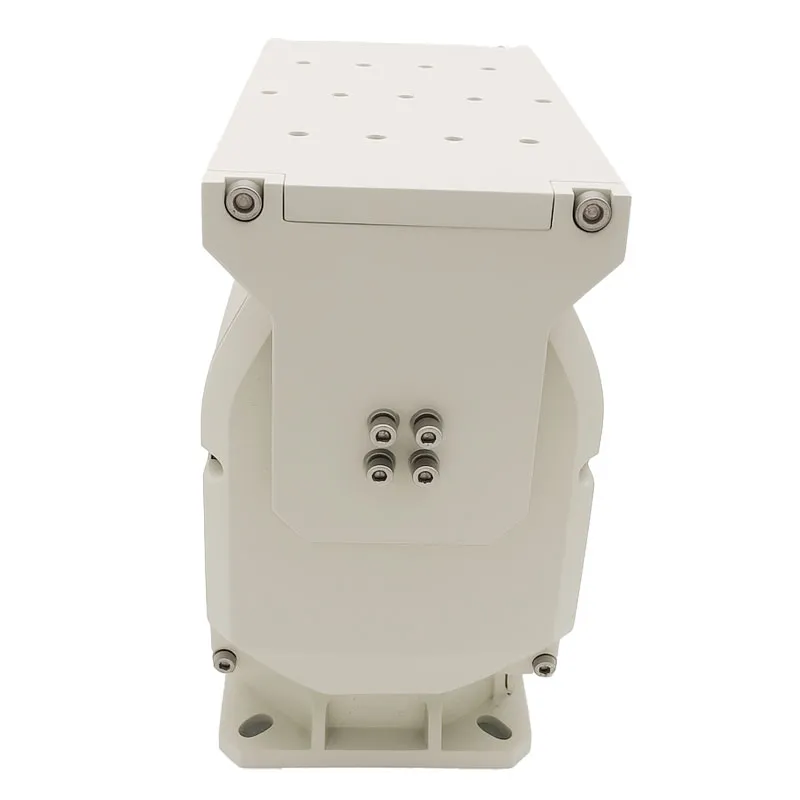

Features of ZN-SPL06Y Variable Speed Mini Pan Tilt Head
Small pan tilt unit, indoor/outdoor use
High-precision Worm Gear Transmission
Support Power-off Self-locking
Max.Load Capacity 7kg(15.69lb)
High-Strength Aluminum Alloy Construction
Pan Speed: 0.01°~30°/S (Up to 55°/S; the higher the rotation speed, the lower the payload capacity )
Tilt Speed: 0.01°~15°/S (Up to 30°/S; the higher the rotation speed, the lower the payload capacity)
360° continuous(Customizable rotation range from 0° to 340°)
Tilt Range: -60°~20°(Optional limited rotation, with a maximum angle range from -90° to +90°)
Preset Position: 200
Preset accuracy:±0.1°
Support Position Feedback and Absolute Position
RS485/RS422 Pan Control with Pelco P/D Protocol
Protection Grade: IP66 Waterproof
| Model | ZN-SPL06Y |
| Max. Load Capacity | 7KG(15.69lb) |
| Load Type | Top load, Side load |
| Transmission Mode | Worm Gear Transmission |
| Pan Speed | 0.01°~30°/S |
| Tilt Speed | 0.01°~15°/S |
| Pan Range | 360° continuous |
| Tilt Rang | -60° ~20° |
| Presets | 200 |
| Preset Accuracy | ±0.1° (optional ±0.01°) |
| Auto Cruising | Support, 2 (each with 40 presets) |
| Auto Scan | Support, 1 |
| Lens Preset Position | Optional |
| Lens Control Speed | Optional |
| Auto Homing | It can be set up within the period of 1~60 mins |
| Power on Self-test | Support |
| Position Passback | Query Response or Real-time Response Transmission |
| Auxiliary Switch | Optional(1~2 Groups) |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Self-locking | Support |
| Interface | |
| Communication Interface | RS422 (optional RS485/RS232/Network Interface) |
| Top Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power output cable (2-core) |
| Bottom Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power input cable (system power supply)，One RS422 cable (pan-tilt communication). |
| General | |
| Power Supply | DC24V (optional DC12V/DC48V/AC220V) |
| Power Consumption | ≤60W |
| Static Power Consumption | ≤2W |
| Grade Protection | IP66 |
| Working Temperature | -25℃~+65℃ |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40℃~+65℃ |

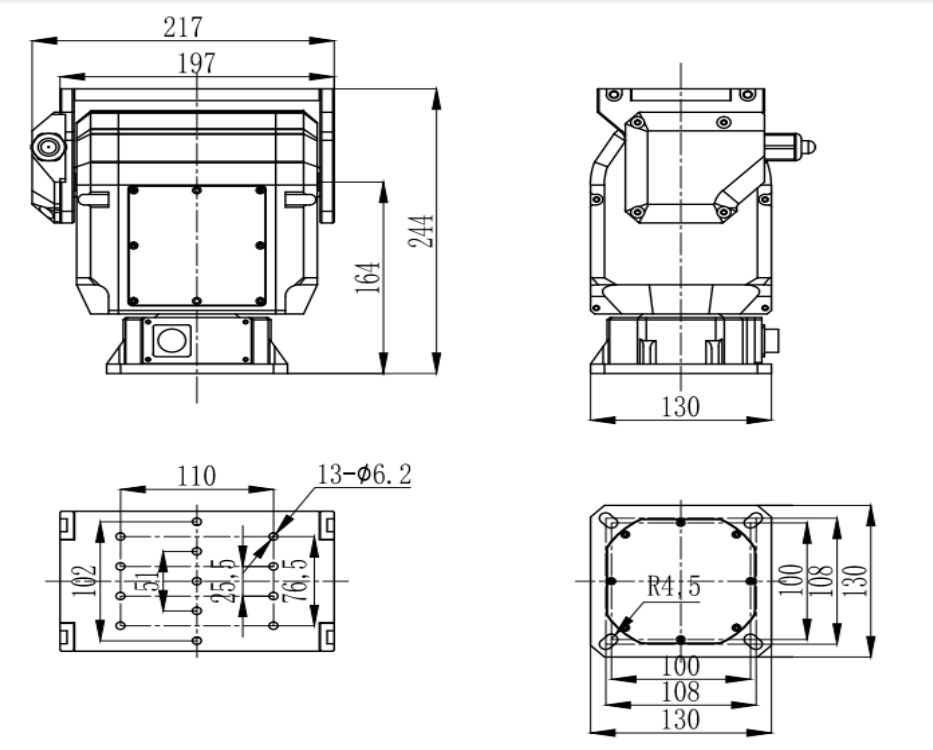

| Size | 217×130×244mm（L×W×H） |
| Weight | 6kg(13.36lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q：What camera modules can the ZN-SPL06Y support?
A：The ZN-SPL06Y pan tilt unit can be equipped with visible-light camera cores or dual-spectrum lens modules, providing flexible imaging options for different surveillance needs.
Q：What is the typical application range of this model?
A：This compact 6 kg payload pan-tilt unit is ideal for short-to-medium range surveillance scenarios, such as building rooftops, traffic poles, towers, or ship decks.
Q：How is the housing designed for outdoor use?
A：It features a lightweight aluminum-alloy protective cover with IP66 waterproof protection, ensuring stable operation under harsh environments like rain, salt-spray, and wind.
Q：What makes ZN-SPL06Y suitable for dual-sensor systems?
A：Its precision worm-gear transmission and 0.01° preset accuracy allow seamless coordination between visible and thermal imaging modules for synchronized target tracking.
Q：Does it support customized control or communication interfaces?
A：Yes. ZN-SPL06Y supports RS485/RS422/RS232 and ModBus-RTU protocols, making it easy to integrate with PTZ camera systems or dual-light monitoring platforms.
