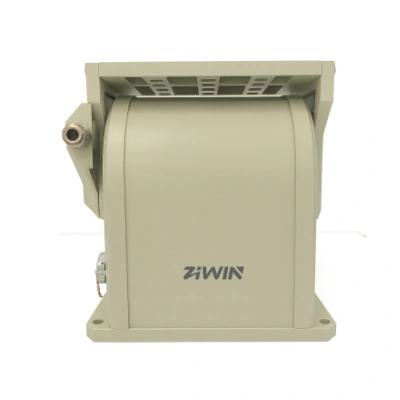

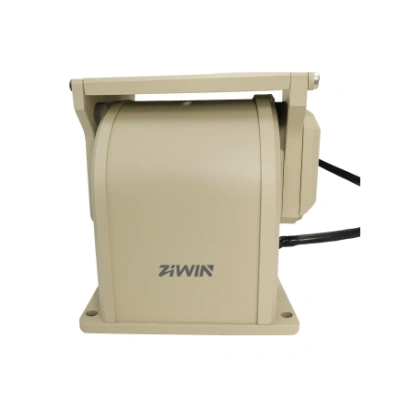

ZIWIN Single-Axis Tilt Rotator & Positioner is a dedicated platform engineered to rotate only in the tilt/elevation direction. Unlike regular pan-tilt units that operate on both axes, this single-axis tilt model is designed for applications requiring accurate vertical rotation and positioning without horizontal movement.
With a payload capacity from 10 kg to 50 kg, it is ideal for mounting video cameras, antennas, sensors, optical instruments, and measuring equipment that need controlled elevation adjustment. It is especially suitable for industrial inspection, laboratory setups, optical testing, and defense-related applications.
Control is based on Pelco P/D protocol via RS-485/RS-422/RS-232 interfaces, offering the same advanced functions as full pan-tilt units, including preset positions, programmable scans, and absolute positioning.
The tilt rotator is driven by a worm/gear drive system, which ensures high stability, strong torque, and reliable load handling—perfect for medium-duty payloads requiring smooth and controlled tilt motion.
ZIWIN also provides customization options such as:
* Housing color
* Tilt rotation speed
* Tilt angle range
* Cabling/output interface design
* Special structural reinforcements
With these options, our tilt rotators can be tailored to meet diverse technical and environmental requirements.
For consultation or to request a customized solution, please contact us at sales@ziwincctv.com with your detailed specifications. Our engineering team will recommend the best configuration for your project.
How is a single-axis tilt rotator different from a regular pan-tilt unit?
A tilt rotator operates only in the vertical (elevation) direction, while a pan-tilt unit can rotate on both horizontal and vertical axes. This design is ideal for applications focused on precise tilt movement.
What is the payload capacity of ZIWIN tilt rotators?
They support loads from 10 kg up to 50 kg, providing reliable vertical positioning for medium to heavy devices.
What equipment can be mounted on a tilt rotator?
Cameras, antennas, optical instruments, sensors, and measuring equipment that require controlled elevation movement can be mounted.
Can ZIWIN provide customized tilt rotators?
Yes. We can customize housing color, tilt speed, rotation angle range, output cabling design, and structural features to match customer requirements.
What are the typical application fields of tilt rotators?
They are commonly applied in industrial inspection, laboratory testing, optical experiments, video surveillance, and defense systems where accurate vertical positioning is required.
