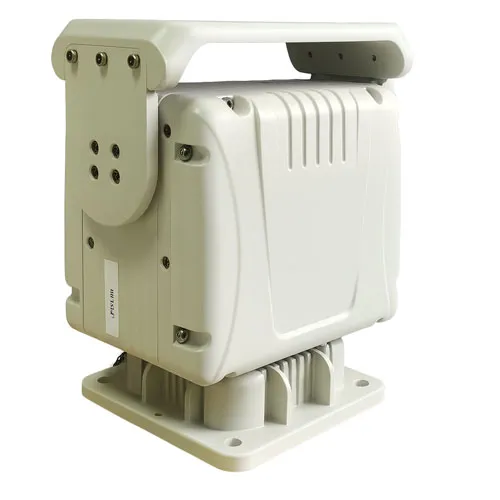

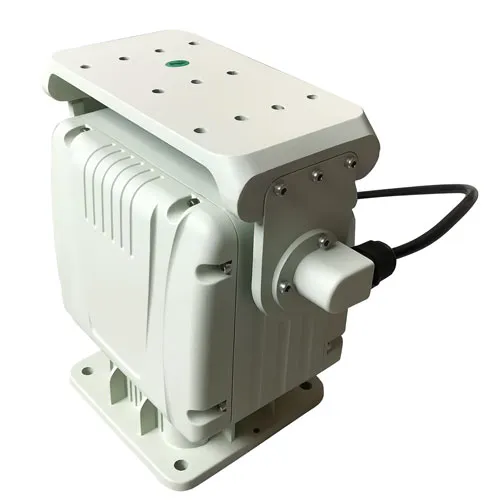

Outdoor Mini Pan Tilt Head Positioner with Worm Gear Variable Speed 10kg (20.05Ib) load Capacity

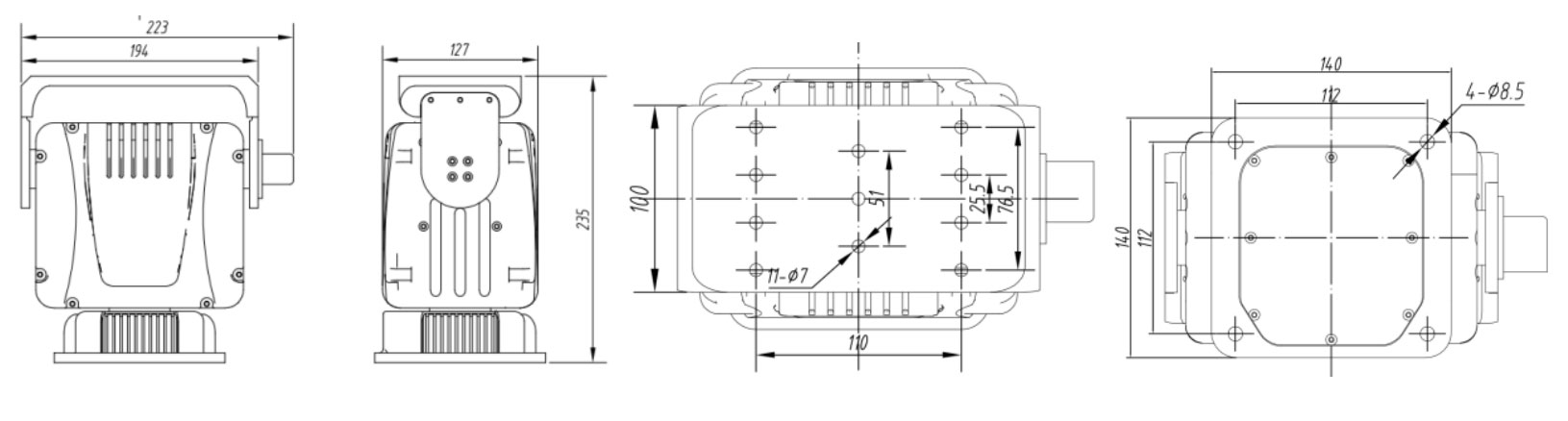

Dimension of ZN-SPL1510 Outdoor Mini Pan Tilt Head

FAQs of ZN-SPL1510 Light Duty Pan Tilt Head

Q: How should I connect the power and control cables?

A: Follow the wiring diagram carefully. Use shielded cables for RS485/RS422 to reduce interference, and make sure all connections are waterproofed if installed outdoors.

Q: Can I install the pan tilt unit in high-humidity or coastal environments?

A: Yes, the ZN-SPL1510 is IP66-rated for outdoor use. However, in coastal or high-humidity areas, we recommend applying extra anti-corrosion measures, such as anti-rust paint or anti-corrosion sealant, and checking all seals regularly to ensure long-term reliability.

Q: How do I avoid overload issues during operation?

A: To avoid overload, never exceed the 10kg rated load capacity. Since the actual performance depends greatly on the payload’s center of gravity, ensure your device is properly selected. We recommend providing detailed specifications of your payload during selection so our engineers can accurately calculate the safe maximum load for your application.

Q: What should I do if the pan tilt unit loses accuracy?

A: Check if the load is secure and not shifting. Recalibrate presets if necessary. Also, make sure the power supply is stable to avoid control errors.

Q: Can the unit operate continuously for long hours?

A: Yes, but avoid running at maximum speed continuously for long periods. Using variable speed control extends the service life of the worm gear drive and motors.

Q: How often should I maintain the unit?

A: For outdoor installations, inspect cables, seals, and mounting brackets every 6 months. Ensure the housing remains sealed and clean dust or debris from the moving parts.
