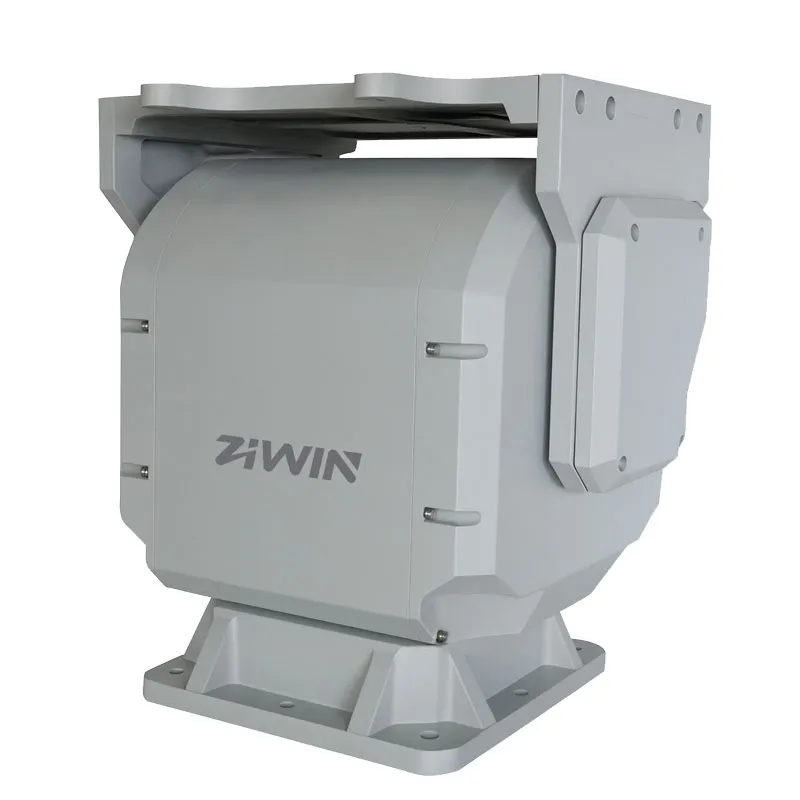

Features of ZN-SPH200Y Heavy Duty Pan Tilt Head
● Heavy duty pan tilt unit, indoor/outdoor use
● High-precision worm gear drive transmission
● Self-lock with memory after power failure, strong wind-resistance
● Max.Load Capacity 200kg(400.92lb)
● High-strength aluminum alloy construction
● Pan Speed: 0.01°～4°/S (Up to 50°/S; the higher the rotation speed, the lower the payload capacity )
● Tilt Speed: 0.01°~2°/S (Up to 30°/S; the higher the rotation speed, the lower the payload capacity )
● 360° continuous pan rotation
● Tilt Range: -30°~+30°(Optional limited rotation, with a maximum angle range from -90° to +90°)
● Preset Accuracy: ±0.1°
● Support position feedback and absolute position
● Aviation circular connector design, easy for installation and maintenance
● Anti-corrosion surface treatment and coating
● PTA triple-shield coating on entire structure, critical components nitrogen-sealed
● RS485/RS422 pan tilt control with Pelco D/P protocol
● Protection Grade: IP66 Waterproof
| Model | ZN-SPH200Y |
| Max. Load Capacity | 200kg(440.92lb) |
| Load Type | Top load |
| Transmission Mode | Worm gear transmission |
| Pan Speed | 0.01°~4°/S |
| Tilt Speed | 0.01°~2°/S |
| Pan Range | 360° continuous |
| Tilt Rang | -30° ~+30° |
| Presets | 200 |
| Preset Accuracy | ±0.1° (optional ±0.01°) |
| Auto Cruising | Support, 2 (each with 40 presets) |
| Auto Scan | Support, 1 |
| Lens Preset Position | Optional |
| Lens Control Speed | Optional |
| Auto Homing | It can be set up within the period of 1~60 mins |
| Power on Self-test | Support |
| Position Passback | Query Response or Real-time Response Transmission |
| Auxiliary Switch | Optional(1~2 Groups) |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Self-locking | Support |
| Interface | |
| Communication Interface | RS422 (optional RS485/RS232/Network Interface) |

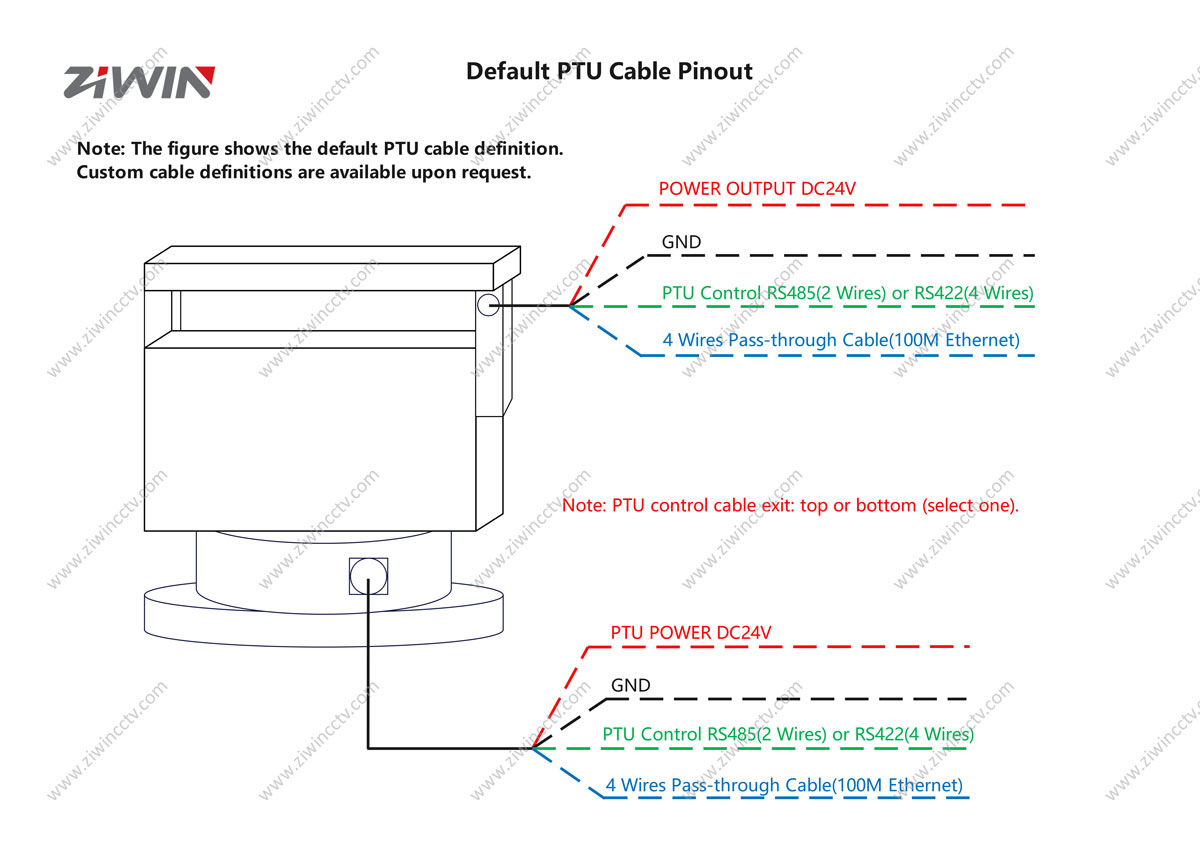

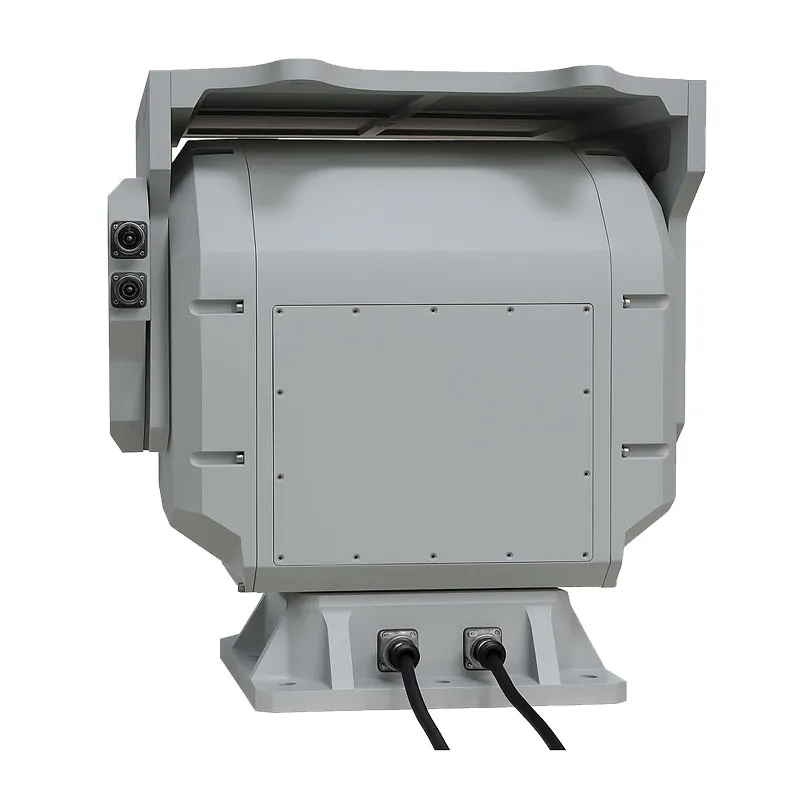

| Top Cable Outlet | One pass-through standard signal cable (4-core)，One DC24V power output cable (2A) |
| Bottom Cable Outlet | One pass-through standard signal cable (4-core)，One AC220V power input cable (system power supply)，One RS422 cable (pan-tilt communication). |
| General | |
| Power Supply | AC220V(optional DC48V) |
| Power Consumption | ≤1000W |
| Static Power Consumption | ≤700W |
| Grade Protection | IP66 |
| Working Temperature | -25℃~+55℃ |
| Working Humidity | 90%±3% RH, non-condensing |
| Storage Temperature | -40℃~+65℃ |

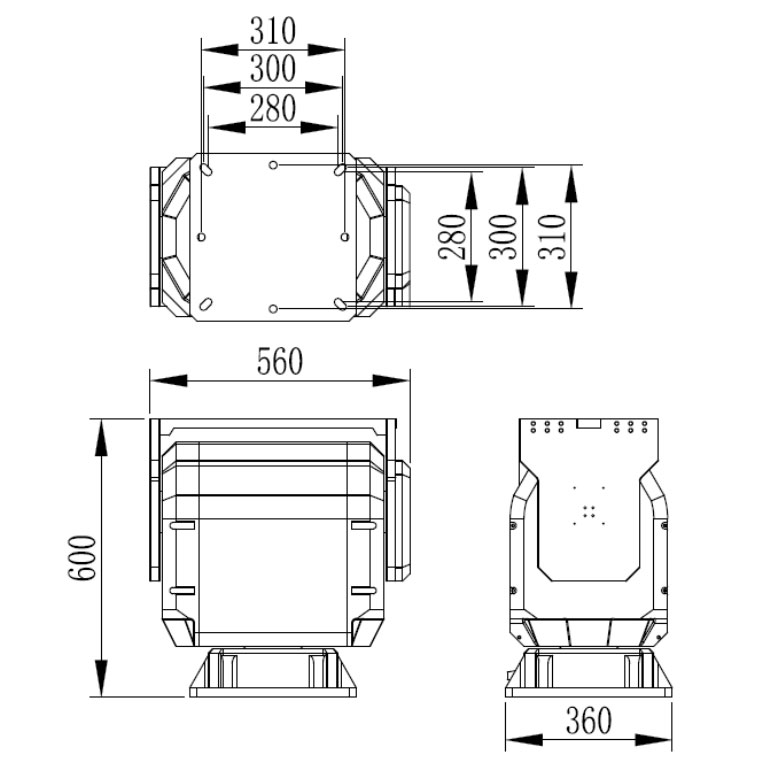

| Size | 560×360×600mm（L×W×H） |
| Weight | 110kg(242.51lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: Can this heavy duty pan tilt head support a full 200kg load?
A：Yes. This heavy duty pan tilt head is built with a reinforced structure and worm-gear drive to stably handle 200kg payloads.
Q：Will the pan tilt head lose accuracy when carrying 200kg?
A：No. The pan tilt head maintains ±0.1° precision even under the maximum 200kg load.
Q: Does rotation speed affect the 200kg load capacity?
A：At normal speeds, the heavy duty pan tilt head fully supports 200kg; only extremely high speeds may reduce payload capacity.
Q: What devices can be installed on a 200kg heavy duty pan tilt head?
A：It supports large EO/IR systems, radar antennas, laser equipment, and other heavy professional payloads.
Q: Can this heavy duty pan tilt head be customized?
A：Yes. This pan tilt head supports deep customization, including torque upgrades, protocol options, wiring interfaces, mounting designs, and special environmental requirements.
