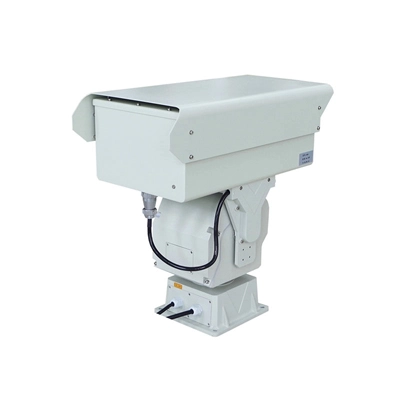

Uncooled VOx thermal imaging detector, 384x288 /640x512 resolution
25～75mm lens for thermal camera, detection sensitivity (NETD) up to 50mk
Detection range vehicle 6,500 m/human 2,500 m, recognition range vehicle 1,800 m/human 700 m
1080P HD visible network camera, 8~320mm lens, motorized zoom ,auto focus
360° continuous pan rotation, -45°~+45° tilt
Pan: 0.01°/s~60°/s , tilt: 0.01°/s~30°/s rotation speed, supports adaptive focal length speed
Support absolute control, coordinate display, preset, auto cruise route, auto scan route
High-strength aluminum alloy construction ,protection grade IP66
| Model | ZN-TVC6307-2132-ES |
| Detection | Vehicle 6,500 m Human 2,500 m |
| Identification | Vehicle 1,800 m Human 700 m |
| Thermal sensor | 5th generation, Uncooled VOx sensor |
| Resolution: 640x512(384x288) | |
| 7.5um-14um spectral response, ≥50mk NETD(@25℃ F1.0) | |
| Thermal lens | 25～75 mm, 3X |
| Motorized zoom and Manual/Auto Focus | |
| FOV: 24°x18°~8°x6° | |
| Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus in the doubling process, and small axis | |
| Image Processing | SDE digital image enhancement technology to enhance image details |
| 16 kinds of pseudo-color images, hot black / hot white two polarities | |
| Support AGC automatic gain control, brightness, contrast | |
| 2×, 4× Electronic zoom, support global synchronous display | |
| NUC correction: automatic / manual correction, background correction | |
| Visible Camera | 1/2.8'' startlight progressive scan CMOS |
| 2MP, 1920×1080 | |
| Color: 0.05 Lux; B/W: 0.01Lux | |
| 8~320mm, 40X zoom | |
| Manual/Auto Focus, 3A Adaptive active Focus algorithm | |
| Integrated automatic ICR dual filter day and night switching | |
| Support automatic aperture | |
| H.265/H.264 video format, support multi-stream | |
| 32Kbps ~ 16Mbps, 60Hz/30fps | |
| Support SD card local storage, support mobile detection, occlusion alarm, cross-border detection, area intrusion detection | |
| Support AFR anti fog, DIS, AWB, AE, HLC, 3DNR, WDR, ABF automatic rear coke adjustment function | |
| Precision potentiometer, support zoom focus Feedback | |
| PT PARAMETER | Pan: 0° to 360° endless |
| Pan: 0.01° to 60°/s | |
| Tilt: -45° to 45° | |
| Tilt: 0.01° to 30°/s | |
| Preset position: 255, support lens zoom, focus preset | |
| Positioning accuracy: ±0.1° | |
| Mechanical wiper(optional) | |
| Watch: Preset / Auto Cruise Route / Auto Scan Route | |
| Support coordinate query/feedback and absolute control | |
| Power-off memory: support (recoverable position before power-off, preset position status, cruise status, line sweep status) | |
| Split design, the whole is made of high-strength aluminum alloy | |
| Interface | Network interface: 1 RJ45 10M/100M self-adaptive Ethernet port (integrated video output and RS422/485 control communication) |
| Network protocol: TCP/IP, UDP, IPv4/v6; support HTTP、RTP、RTSP、NFS、HDCP、NTP、SMTP、PPPoE、DNS、FTP; | |
| Support PSIA, ONVIF and other network protocols | |
| Physical interface: Military aviation water-proof connector | |
| Power Supply | AC24V/DC24V±10%, 50Hz, ≤120W |
| Salt-spray Proof: PH 6.5-7.2, spray continuously for 96 hours, no surface changes | |
| Anti-lighting: Built-in surge protection for the interface circuit, power 4000V, signal 2000V | |
| Ingress Protection: IP66 | |
| Working Temperature: -40°C ~ +60°C (-40°F~ +140°F) | |
| Storage Temperature: -45℃～+70℃ (-49°F~ +158°F) | |
| Humidity: ≤90%RH | |
| Weight | 30kg (66.139 lbs) |
