5MP(2592X1944) resolution
20X optical zoom lens
Video Analysis Light-Adjustment Technology
Built-in SD card slot(up to 64GB)
Protection grade IP66
Infrared: 100 m /328.084ft, Smart Dual Light(4Far+4Near+2White)
Human shape detection, Car shape detection, Non-motor vehicle detection
POE/WIFI/4G (Optional)
| Model | ZN-SCB2051V45-ES |
| CAMERA PARAMETER | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 2592 (H)×1944 (V), 5MP |
| Min. Illumination | Color: 0.05 Lux @ (F1.6, AGC ON); B/W: 0.01Lux @ (F1.6 AGC ON), 0 Lux with IR |
| Shutter Speed | 1/25s to 1/30,000s |
| Lens Type | Optical autofocus lens |
| Focal Length | 4.9 to 98mm, 20x optical zoom |
| Aperture | F1.6~F22 |
| Angle of View | 56°(wide) ~ 3.86°(tele) |
| Day & Night | Day/Night/Auto |
| Focus Mode | Auto/Manual |
| Image Setting | Exposure, White balance, Self-adjusting video modes (Sharpness, Contrast, Saturation, Brightness) |
| Mirror Image | Level, Tilt, Centre |
| BLC | Open/Close |
| WDR | Support |
| Privacy Zone | Support |
| Motion Detection | Support |
| Intelligent Analysid | Human shape detection, Car shape detection, Non-motor vehicle detection |
| PTZ | |
| IR distance | 100 m /328.084ft, Support Smart Dual Light(4Far + 4Near + 2White) |
| IR control | Auto/Open/Close |
| Pan Range | Pan: 0° to 200° endless |
| Pan Speed | Pan: 0° to 20°/s |
| Tilt Range | Tilt: -15° to 45° |
| Tilt Speed | Tilt: 0° to 10°/s |
| Preset Position | 256 |
| Auto Cruising | 1 groups（32 Preset/group） |
| Auto Scan | 1 groups（setup left and right boundary） |
| Pattern Scanning | 1 groups |
| Network | |
| Video Compression | H.264 and H.265 encoding, M-JPEG |
| Bit Rate Control | H.265-CBR/VBR |
| ONVIF Protocol | Support |
| Protocols | TCP/IP、HTTP、DHCP、DNS、RTP、RTSP、NTP、UPnP |
| Maximum Frame Rate | 25FPS@(2592X1944) |
| Supported Resolution | 25FPS@(2592×1944), 30FPS@(2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Dual-stream | Support |
| User Access | Supports simultaneous monitoring for up to 6 users with multi-stream real time transmission |
| Remote Client Access | NVR connection, Network |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, up to 64 GB |
| General | |
| Power Supply | DC12V±10% ≤15W |
| POE | Optional |
| Ingress Protection | IP66 |
| Working Temperature | -35°C~+60°C (-31°F~ +140°F) |
| Storage Conditions | 10% ~ 90% |

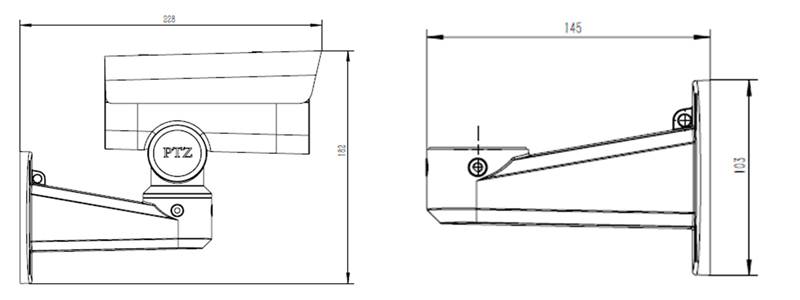

| Size | 265mm×220mm×125mm |
| Weight | 1.35kg (2.976lbs) |
