2MP(1920x1080) resolution
10x optical zoom lens
Built-in SD card slot(up to 64GB)
Protection grade IP66
Infrared: 80 m /262.467ft
Human shape detection, Car shape detection, Non-motor vehicle detection
POE power supply
| Model | ZN-SCB1021V40-ES |
| CAMERA PARAMETER | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 1920 (H)×1080 (V), 2MP |
| Min. Illumination | Color: 0.05 Lux @ (F1.6, AGC ON); B/W: 0.01Lux @ (F1.6 AGC ON), 0 Lux with IR |
| Shutter Speed | 1/25s to 1/30,000s |
| Lens Type | Optical autofocus lens |
| Focal Length | 5.1 to 51mm, 10x optical zoom |
| Aperture | Fixed Iris |
| Day & Night | Day/Night/Auto |
| Focus Mode | Auto/Manual |
| Image Setting | Exposure, White balance, Self-adjusting video modes (Sharpness, Contrast, Saturation, Brightness) |
| Image Orientation | Mirror/Flip |
| BLC | Open/Close |
| WDR | Support |
| Privacy Zone | Support |
| Motion Detection | Support |
| Intelligent Analysid | Human shape detection, Car shape detection, Non-motor vehicle detection |
| PTZ | |
| IR distance | 80 m /262.467ft |
| IR control | Auto/Open/Close |
| Pan Range | Pan: 0° to 250° endless |
| Pan Speed | Pan: 0.5° to 15°/s |
| Tilt Range | Tilt: -10° to 55° |
| Tilt Speed | Tilt: 0.5° to 10°/s |
| Preset Position | 256 |
| Network | |
| Video Compression | H.264 and H.265 encoding, M-JPEG |
| Bit Rate Control | H.265-CBR/VBR |
| ONVIF Protocol | Support |
| Protocols | TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Maximum Frame Rate | 30FPS@(1920x1080) |
| Supported Resolution | 30FPS@(1920x1080,1280x720) |
| Dual-stream | Support |
| User Access | Supports simultaneous monitoring for up to 6 users with multi-stream real time transmission |
| Remote Client Access | NVR connection, Network |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, up to 64 GB |
| General | |
| Power Supply | DC12V±10% |
| POE | Standard |
| Ingress Protection | IP66 |
| Working Temperature | -35°C~+60°C (-31°F~ +140°F) |
| Storage Conditions | 10% ~ 90% |

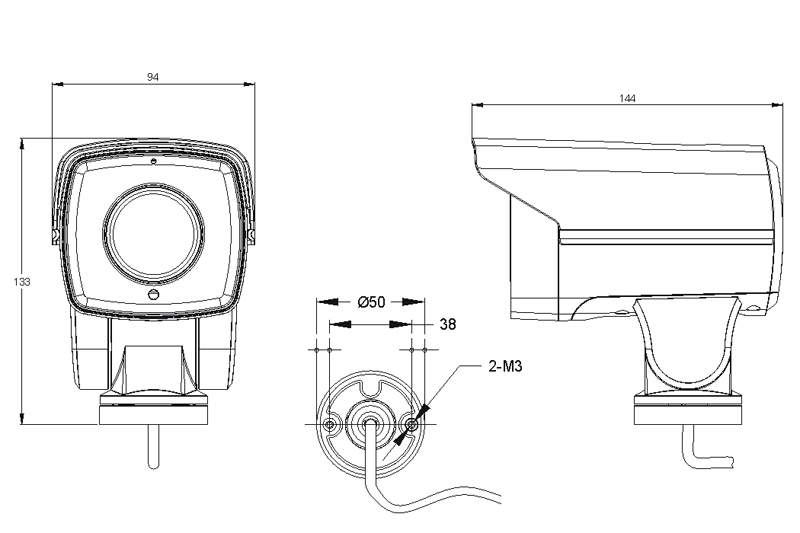

| Size | 153mm×93mm×130mm（L×W×H） |
| Weight | 0.92kg (2.028 lbs) |
Ziwin CCTV Cameras have a high quality. If you are interested in our products, please leave a message here, we will respond as soon as possible.
