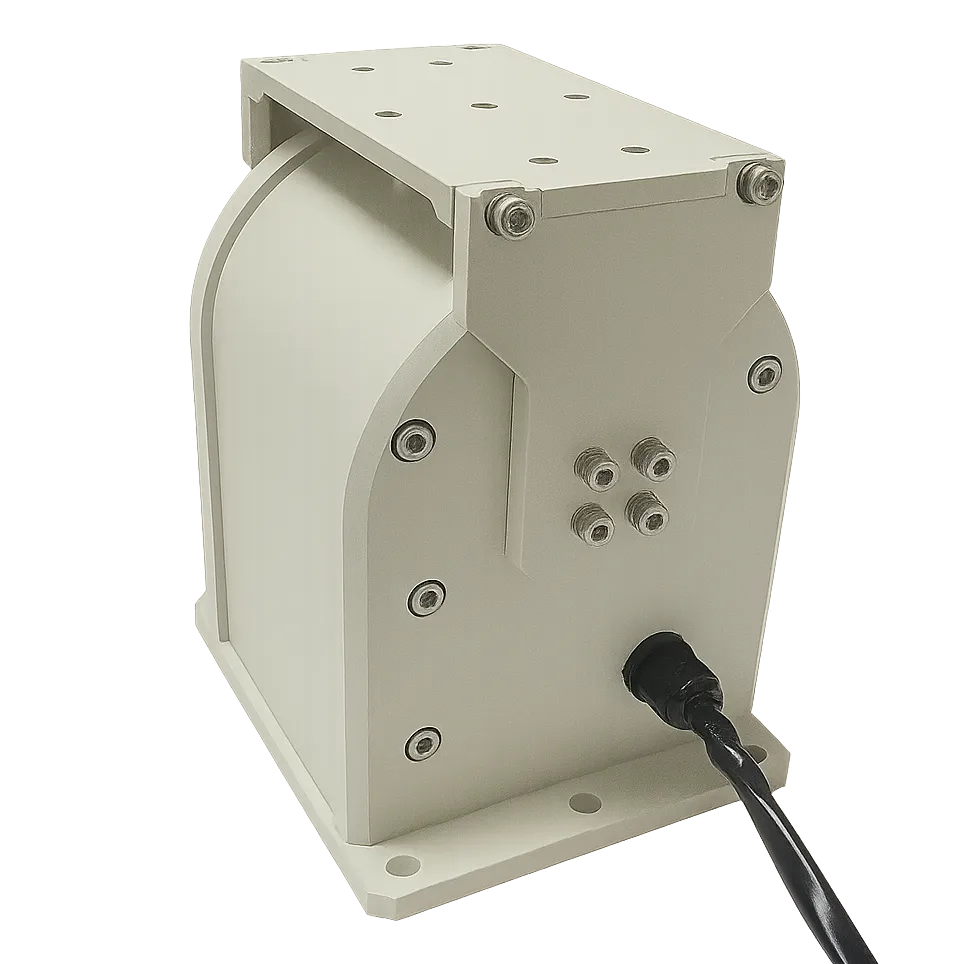

Features of ZN-SAT010Y Outdoor/Indoor 10kg(22.07lb) Load Pan Rotator & Positioner
★ Tilt unit, indoor/outdoor use
★ High-precision Worm Gear Transmission
★ Load capacity 10kg(22.07lb)
★ High-strength aluminum alloy construction
★ Tilt Speed: 0.01°~10°/S(Up to 30°/S; the higher the rotation speed, the lower the payload capacity)
★ Tilt Range: -60°~20°(Optional limited rotation, with a maximum angle range from -90° to +90°)
★ Preset accuracy:±0.1°
★ Support position feedback
★ RS485/RS422 pan control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SAT010Y |
| Max. Load Capacity | 10kg(22.07lb) |
| Load Type | Top load |
| Transmission Mode | Worm Gear Transmission |
| Pan Range | Tilt Range: -60°~20° |
| Pan Speed | 0.01°~10°/S |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Repeated Accuracy | ±0.1° |
| Auto Cruise | Support, 2 |
| Auto Scan | Support, 1 |
| Position Passback | Query Response or Real-time Response Transmission |
| Auto Repositioning | It can be set to automatically return to position within a range of 1 to 60 minutes. |
| Auxiliary Switch | Optional |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Communication Interface | RS485 (optional RS422/RS232/Network Interface/Wireless Remote) |
| Power Supply | DC24V (optional DC12V) |
| Power Consumption | ≤40W |
| Stsyic Power Consumption | ≤5W |
| Working Temperature | -25°C~+55°C |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Protection Level | IP66 |

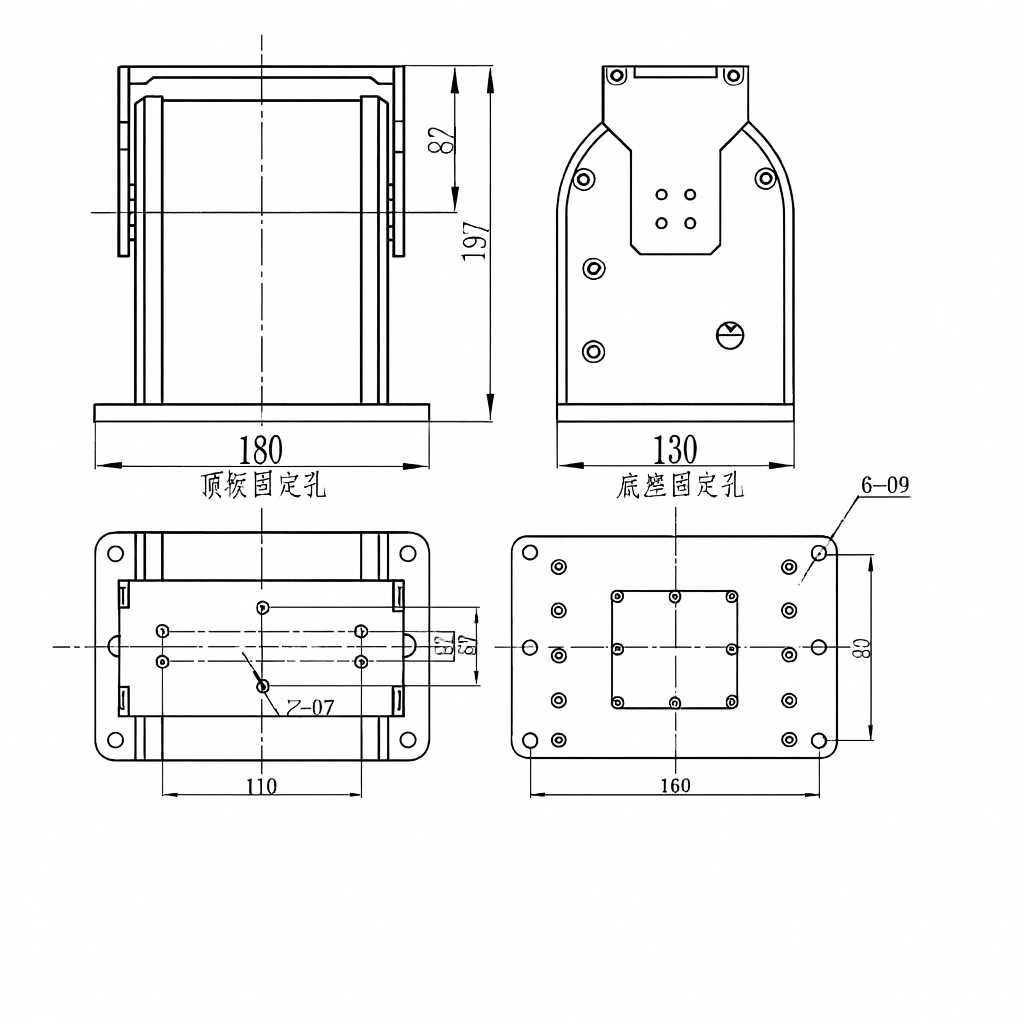

| Size | 180mm×254130mm×197mm（L×W×H） |
| Weight | 5 kg(11.04lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: What is the maximum load capacity of the ZN-SAT010Y?
A: The ZN-SAT010Y supports a maximum load capacity of 10kg, suitable for mounting cameras, sensors, or other lightweight equipment.
Q: Can the ZN-SAT010Y be used outdoors?
A2: Yes. It is designed for both indoor and outdoor applications with durable housing and reliable performance in different environments.
Q: What type of transmission system does it use?
A: The unit adopts a high-precision worm gear transmission system, ensuring stable motion and accurate positioning.
Q: What control protocol is supported?
A: The ZN-SAT010Y supports standard control protocols such as Pelco-D, allowing easy integration with existing control systems.
Q: Can it be customized for different applications?
A: Yes. We can provide customization services, including color, interface, lead wires, and so on.
