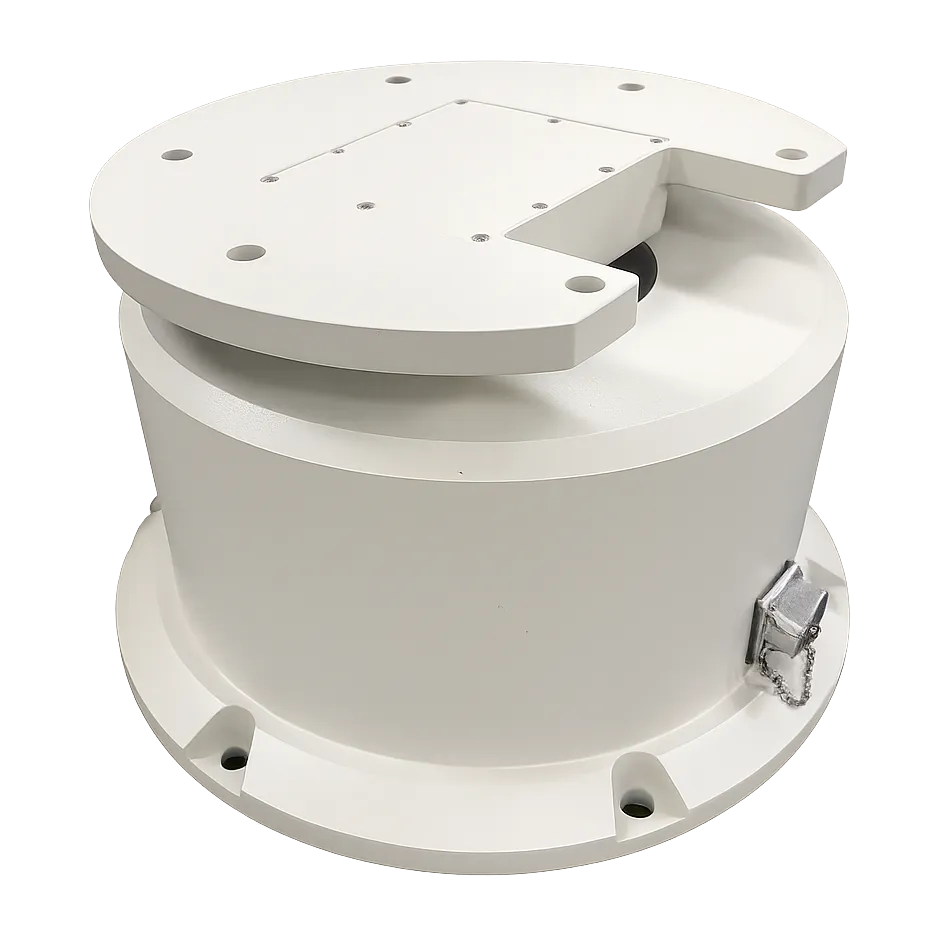

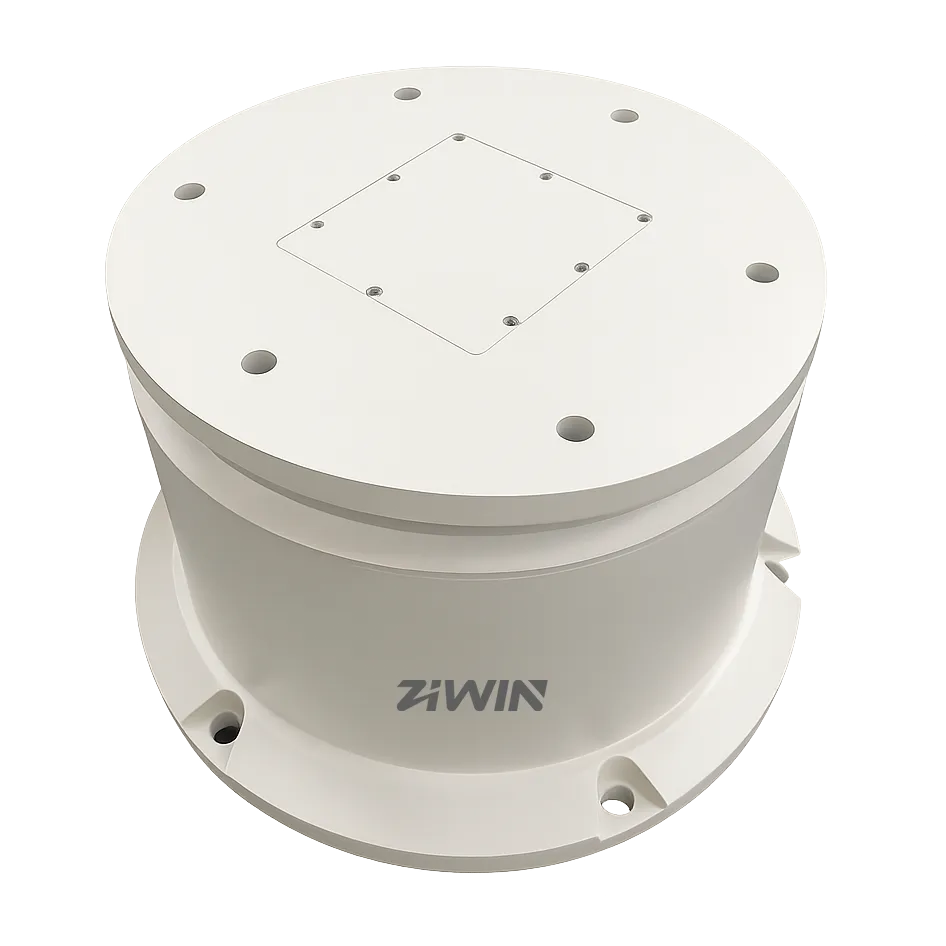

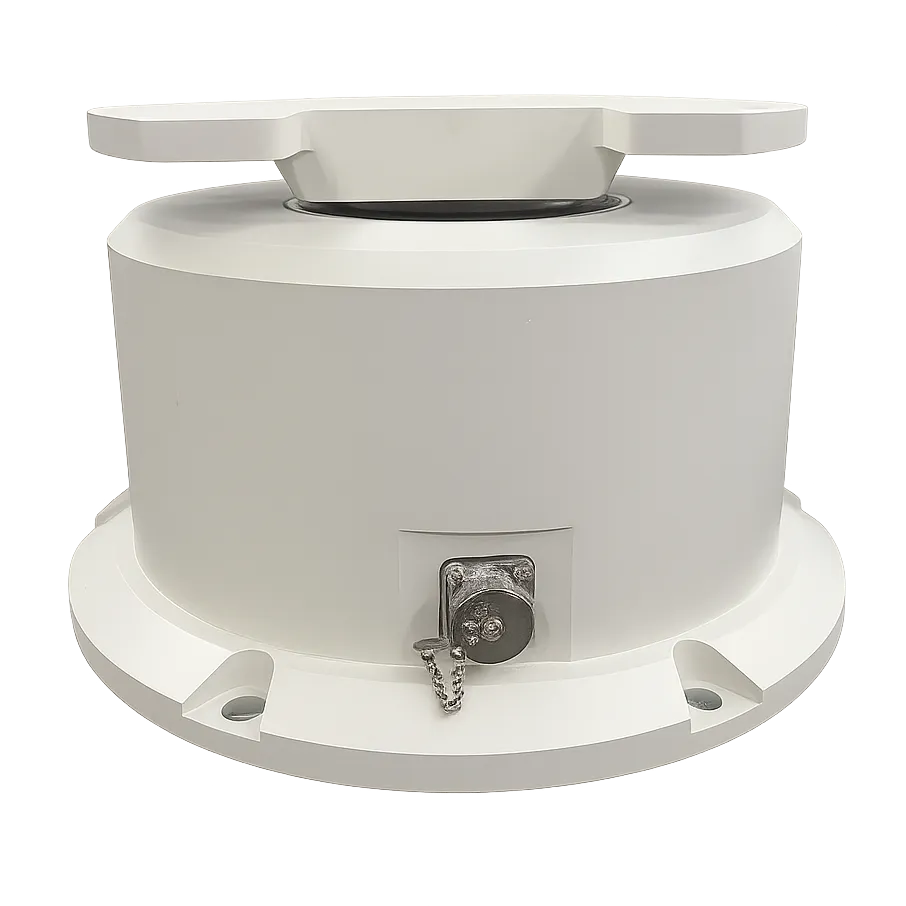

Features of ZN-SAP060Y Outdoor 60kg(132.44lb) Load Pan Rotator & Positioner
★ Pan unit, outdoor use
★ High-precision Worm Gear Transmission
★ Load capacity 60kg(132.44lb)
★ High-strength aluminum alloy construction
★ Pan Speed: 0.01°~4°/S(Up to 15°/S; the higher the rotation speed, the lower the payload capacity)
★ 360° continuous
★ Preset accuracy:±0.1°
★ Support position feedback
★ RS485/RS422 pan control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SAP060Y |
| Max. Load Capacity | 60kg(132.44lb) |
| Load Type | Top load |
| Transmission Mode | Worm Gear Transmission |
| Pan Range | Pan: 0°~360° |
| Pan Speed | 0.01°~4°/S |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Repeated Accuracy | ±0.1° |
| Auto Cruise | Support, 2 |
| Auto Scan | Support, 1 |
| Position Passback | Query Response or Real-time Response Transmission |
| Auto Repositioning | It can be set to automatically return to position within a range of 1 to 60 minutes. |
| Auxiliary Switch | Optional |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Communication Interface | RS485 (optional RS422/RS232/Network Interface/Wireless Remote) |
| Power Supply | DC24V (optional AC220V) |
| Working Temperature | -25°C~+55°C |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Protection Level | IP66 |
| Size | 330mm×330×205mm（L×W×H） |
| Installation Method | Fixed installation |
Q: What makes the ZN-SAP060Y suitable for heavy-duty applications?
A: The unit supports up to 60kg top-load capacity, making it ideal for integrating large PTZ cameras, thermal imaging devices, radars, or LiDAR systems in professional surveillance and industrial projects.
Q: How does the pan speed range benefit different applications?
A: With a pan speed of 0.02°/s to 30°/s, the ZN-SAP060Y can achieve both ultra-slow precision tracking and smooth wide-angle scanning, adaptable to various monitoring tasks.
Q: Does the ZN-SAP060Y provide feedback for intelligent control systems?
A: Yes, it features position feedback, enabling integration with advanced automation systems, intelligent tracking platforms, and real-time monitoring software.
Q: How reliable is the unit in outdoor deployments?
A: The ZN-SAP060Y is made of high-strength aluminum alloy and has an IP66 protection rating, ensuring resistance to rain, dust, and extreme weather for long-term outdoor operation.
Q: How many preset positions can be stored and recalled?
A: The unit supports up to 200 preset positions, allowing quick switching between pre-defined monitoring points to improve operational efficiency.
