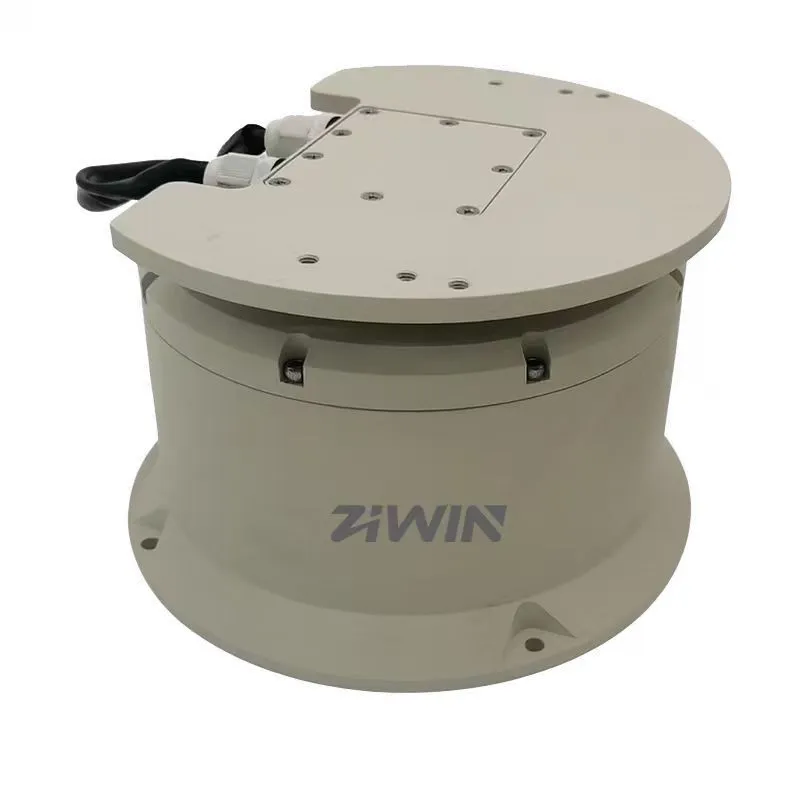

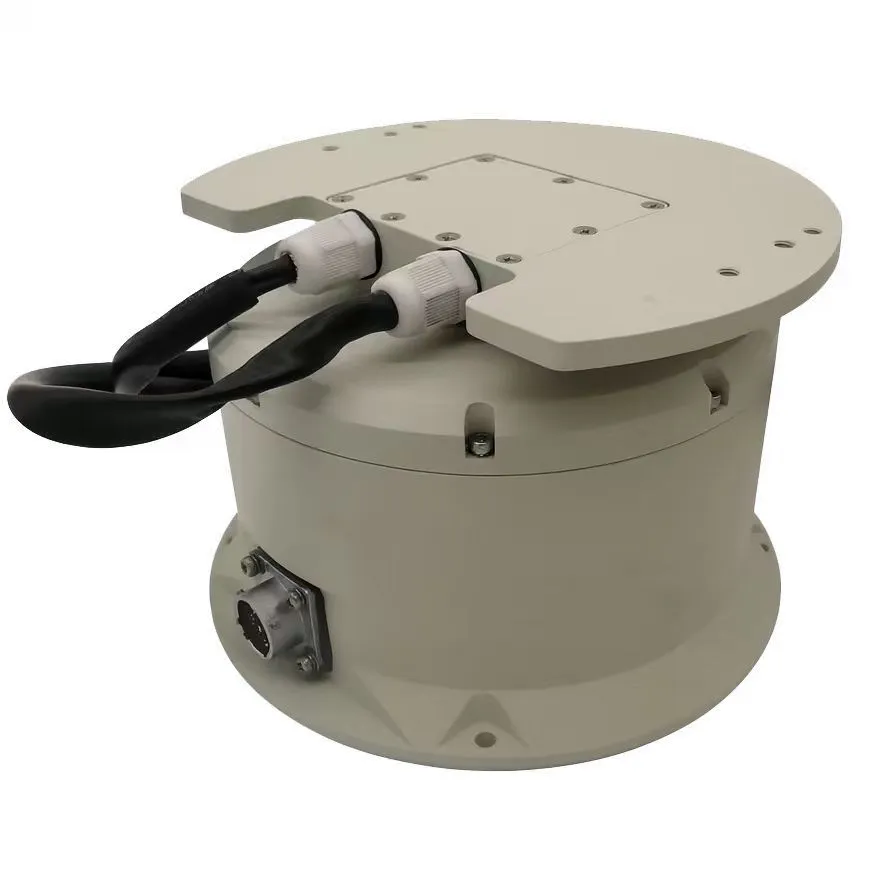

Features of ZN-SAP005Y Mini Outdoor / Indoor 7kg(15.69lb) Load Pan Rotator & Positioner
★ Small pan unit, indoor/outdoor use
★ High-precision Worm Gear Transmission
★ Load capacity 7kg(15.69lb)
★ High-strength aluminum alloy construction
★ Pan Speed: 0.01°~20°/S(Up to 30°/S; the higher the rotation speed, the lower the payload capacity)
★ 360° continuous
★ Preset accuracy:±0.1°
★ Support position feedback
★ RS485/RS422 pan control with Pelco P/D protocol
★ Protection grade IP66
| Model | ZN-SAP005Y |
| Max. Load Capacity | 7kg(15.69lb) |
| Load Type | Top load |
| Transmission Mode | Worm Gear Transmission |
| Pan Range | Pan: 0°~360° |
| Pan Speed | 0.01°~20°/S |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| Repeated Accuracy | ±0.1° |
| Auto Cruise | Support, 2 |
| Auto Scan | Support, 1 |
| Position Passback | Query Response or Real-time Response Transmission |
| Auto Repositioning | It can be set to automatically return to position within a range of 1 to 60 minutes. |
| Auxiliary Switch | Optional |
| Salt-Spray | Optional |
| Protocol | Pelco D (optional Pelco P/ModBus-RTU) |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Communication Interface | RS485 (optional RS422/RS232/Network Interface/Wireless Remote) |
| Power Supply | DC24V (optional DC12V) |
| Power Consumption | ≤30W |
| Stsyic Power Consumption | ≤5W |
| Working Temperature | -20°C~+55°C |
| Working Humidity | 90% RH, non-condensing |
| Storage Temperature | -40°C~+65°C |
| Protection Level | IP66 |

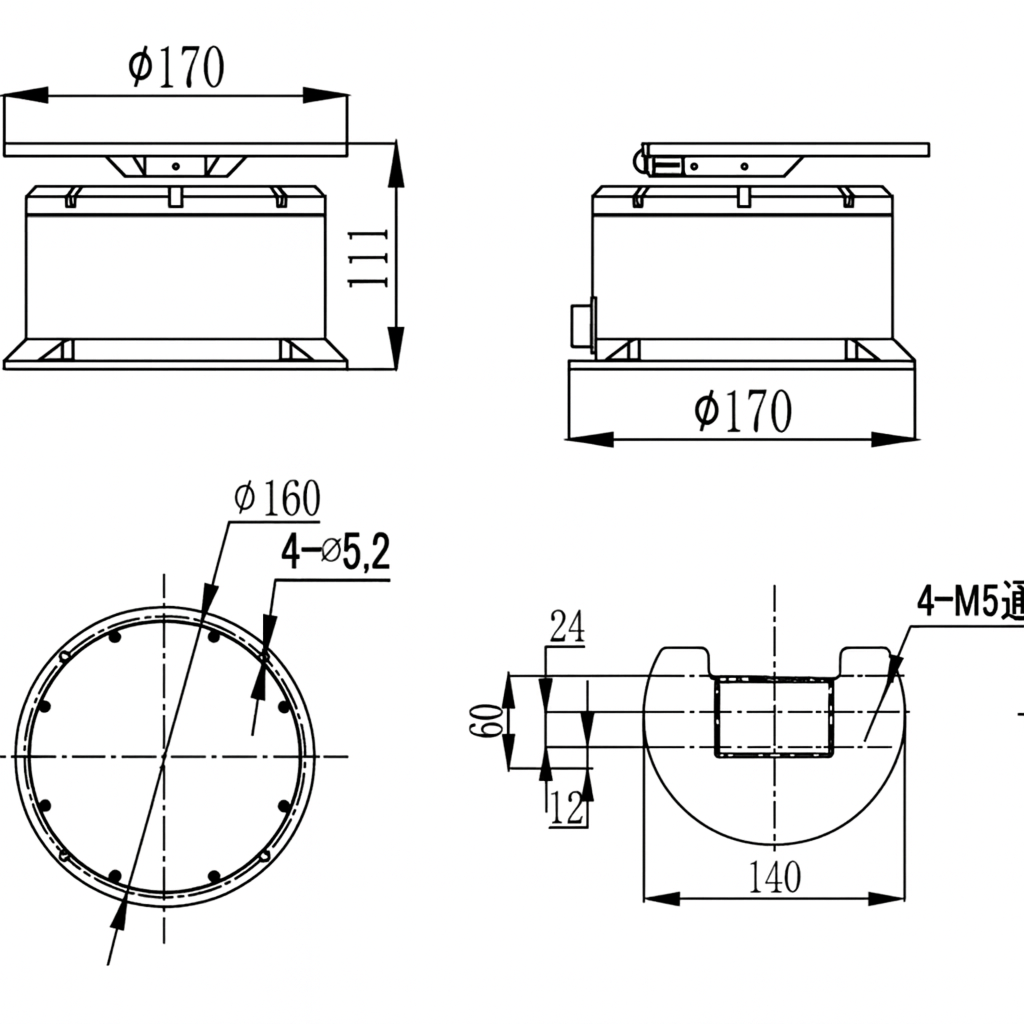

| Size | 170×170×111mm（L×W×H） |
| Weight | 2.5kg(5.82lb) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
Q: What is the maximum load capacity of the ZN-SAP005Y pan rotator?
A: The ZN-SAP005Y supports up to 7 kg top-load, making it ideal for mounting small to medium surveillance cameras and sensors.
Q: What is the pan speed and accuracy of this unit?
A: The pan speed ranges from 0.02°/s to 60°/s, with a preset accuracy of ±0.1°, ensuring smooth and precise positioning.
Q: Can the ZN-SAP005Y operate continuously in a full 360° range?
A: Yes, it supports 360° continuous rotation, suitable for applications requiring full-area coverage.
Q: What control protocols are supported by this model?
A: The ZN-SAP005Y is compatible with RS485/RS422 control and supports Pelco P/D protocol for easy integration with standard PTZ control systems.
Q: Is the ZN-SAP005Y suitable for outdoor installation?
A: Absolutely. With an IP66 protection rating and high-strength aluminum alloy construction, the unit is designed for reliable operation in both indoor and outdoor environments.
