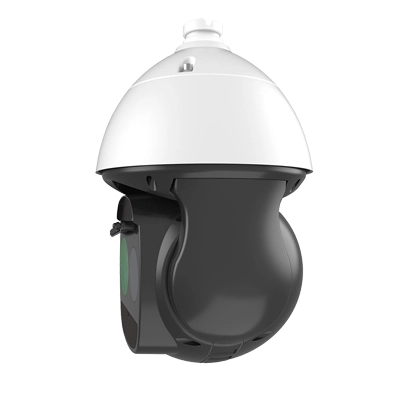

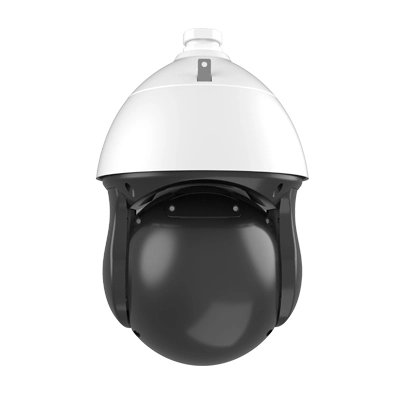

8-inch 2MP 44X IR Network Speed Dome Camera

ZN-IRS4425IRW2-ES

Features of ZN-IRS4425IRW2-ES Outdoor 2MP 44X Pan Tilt Infrared Night Vision Camera

  • Compatible with major popular NVR

  • 2MP(1920x1080) resolution

  • 44x optical zoom lens

  • True WDR, 3D DNR, HLC, BLC, EIS, Defog

  • Built-in SD card slot(up to 256GB)

  • 1/1 audio in/out, 1/1 alarm in/out

  • Protection grade IK10/IP66

  • Mechanical wiper, Smart wipers that detect rain and automatically remove water

  • Infrared: 200 m /656.16ft

  • POE power supply (optional)

Contact Us
Specification FAQ

Specification

ModelZN-IRS4425IRW2-ES
Optical Module
Image Sensor1/2.8" progressive scan CMOS
Max. Resolution1920 (H)×1080 (V), 2MP
Min. IlluminationColor: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.001Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Lens TypeOptical autofocus lens
Focal Length6.9 to 303mm, 44x optical zoom
ApertureF1.6~F6.0
Angle of ViewD: 58.9°~ 1.5°
Day & NightDay/Night/Auto/Custom/Schedule
Infrared Distance (LED)Infrared: 200 m /656.16ft
Wide Dynamic Range (WDR)120 dB
Image SettingExposure, White balance, Self-adjusting video modes (Sharpness, Contrast, Saturation, Brightness)
Mirror image/PivotHorizontal and Vertical
Image StabilizationEIS
Privacy Masking8 Regions
Smart FunctionPeople/vehicles classification, area entry detection, area exit detection
Automatic TrackingSupport
PTZ
Pan RangePan: 0° to 360° endless
Pan SpeedPan: 0.1° to 200°/s, preset speed: 250°/s
Tilt RangeTilt: -10° to 90°
Tilt SpeedTilt: 0.5° to 100°/s, preset speed: 120°/s
Preset SpeedMaximum: 200°/s
Network
Video CompressionH.264 and H.265 encoding, M-JPEG
Smart CodecSupport
Camera ProtocolsONVIF、GB28181
Bit Rate ControlH.265-CBR/VBR
Audio CompressionG.711/AAC/G.722/G.726
ProtocolsTCP/IP、HTTP、DHCP、DNS、DDNS、RTSP、PPPoE、SMTP、NTP、UPnP
Maximum Frame Rate50/60fps: 1920 x 1080(WDR)
Supported Resolution1920 x 1080、 1280 x 960
Multiple Video StreamsThree code streaming media
SecuritySSL encryption, Multi-user permissions, IEEE 802.1x IP filtering, HTTPS
Remote Client AccessNVR connection, Network
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-board StorageBuilt-in memory card slot, up to 256 GB
Event
Basic EventMotion detection, Alarm input, Tampering, Tripping area
LinkageRemote software, Email (with images)
Audio Input/Output1 (Line-In; Bare wire)
Alarm Input/OutputSupport
General
Power SupplyAC 24V: 36W
Power Consumption

AC 24V, 0.6A, 8W,

AC 24V, 3A, 45W,

POE, 50-57V, 20.3W

POE, 50-57V, 60.6W

Anti-collision ProtectionIK10
Ingress ProtectionIP66
Working Temperature-45°C~+60°C (-49°F~ +140°F)
Storage Conditions0% ~ 90%
CertificationFCC、CE

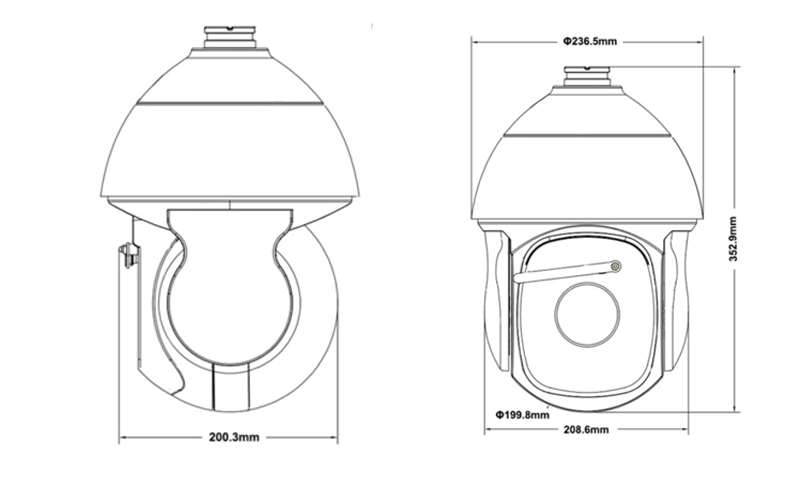

SizeØ236.5mm x 252mm
Weight8kg (17.637 lbs)

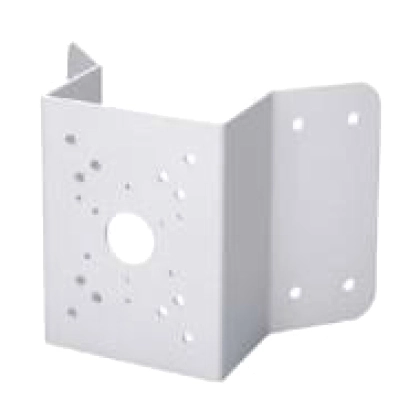

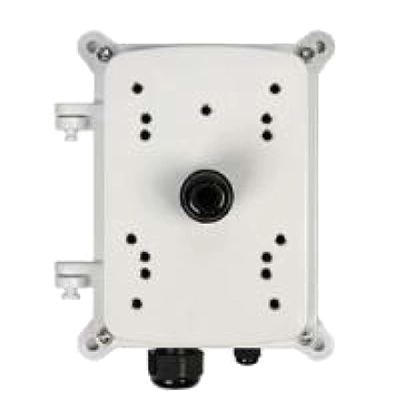

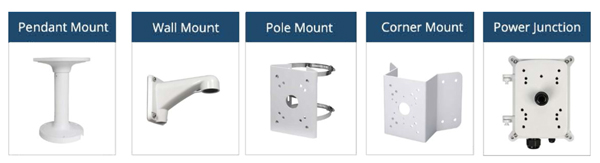

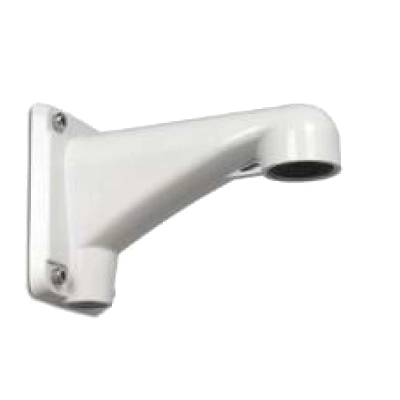

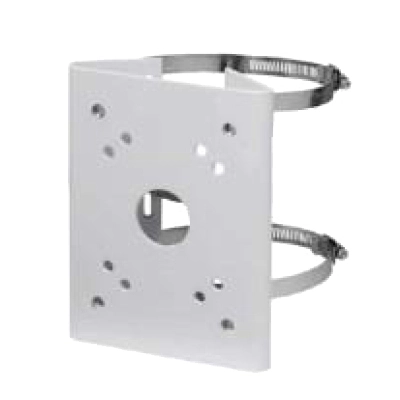

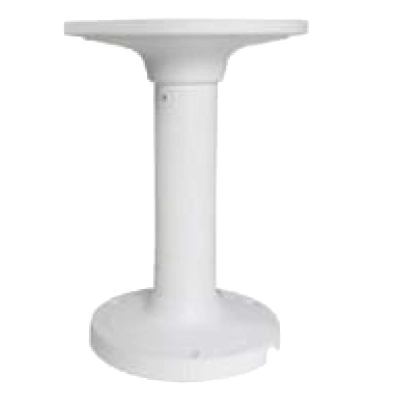

Accessories (optional)ZN-IRS4425IRW2-ES 8-inch 2MP 44X IR Network Speed Dome Camera


ZN-IRS3745IRW2-ES 8-inch 4MP 37X IR Network Speed Dome Camera


View More View Less

FAQ

FAQ - Common Questions About the Infrared Night Vision Camera


Q: What is the advantage of 44× optical zoom in real applications?

A: This infrared night vision camera is equipped with a 44× high-magnification optical lens (6.9–303 mm), allowing operators to clearly observe distant targets such as roads, pedestrian crossings, or public squares, while maintaining image clarity without digital distortion.


Q: What image enhancement technologies does it support for complex environments?

A:The night vision infrared camera integrates True WDR, 3D DNR, HLC, BLC, Electronic Image Stabilization (EIS), and Defog functions, ensuring high-quality images even under backlight, smog, or strong light interference.


Q: Does it support local recording? What is the SD card capacity?

A: Yes. This camera with infrared night vision includes a built-in SD card slot that supports up to 256 GB, enabling local recording on site or as a backup when the network connection is lost.


Q: What intelligent analysis functions are supported, and how do they help in projects?

A: The night vision and infrared camera supports human/vehicle classification, intrusion/exit detection, and auto-tracking. These smart functions are ideal for traffic intersections, courtyards, and perimeter security, helping reduce false alarms and improving response efficiency.


Q: Does it support remote access and mainstream integration protocols?

A:Yes. This infrared night vision camera supports H.264 / H.265 compression, ONVIF, and GB28181, along with SSL encryption, HTTPS, IEEE 802.1x, and IP filtering. It ensures secure remote access and seamless integration with mainstream NVR or VMS platforms.

View More View Less
