Features of the ZN-TPS3025W2D-ES Bi-spectrum Network Speed Dome Thermal Camera
Compatible with major popular NVR
384x288/640×512 Thermal imaging resolution
25/35/55/75mm thermal lens, 30x optical zoom lens
True WDR, 3D DNR, HLC, BLC, EIS, Defog
Built-in SD card slot(up to 256GB)
1/1 audio in/out, 1/1 alarm in/out
Temperature range: -20°C to 150°C (-4°F to 302°F) or 0°C to 550°C (32°F to 1022°F)
Protection grade IK10/IP66, Mechanical wiper
POE power supply (optional)
| Model | ZN-TPS3025W2D-ES |
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Resolution | Sensor is 384×288/640×512 |
| Pixel Pitch | 12µm |
| NETD | ≤ 40mK |
| Spectral Range | 8 to 14 µm |
| Image Setting | Brightness, Sharpness, Contrast, Mirror, FFC control, 2D/3D DNR |
| Pseudo-color Setting | White-hot/Black-hot/Rainbow/Ironbow |
| Thermal Lens | 25/35/55/75mm |
| Optical Module | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 1920 (H)×1080 (V), 2MP |
| Min. Illumination | Color: 0.005 Lux @ (F1.5, AGC ON); B/W: 0.001Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30000 s |
| Lens Type | Optical autofocus lens |
| Focal Length | 4.7 to 141mm, 30x optical zoom |
| Aperture | F1.5~F4.0 |
| Angle of View | D:61.2°～2.2° |
| Day & Night | Day/Night/Auto/Custom/Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Setting | Exposure, White balance, Self-adjusting video modes (Sharpness, Contrast, Saturation, Brightness) |
| Mirror image/Pivot | Horizontal and Vertical |
| Image Stabilization | EIS |
| Privacy Masking | 8 Regions |
| Smart Function | People/vehicles classification, area entry detection, area exit detection |
| Automatic Tracking | Support |
| PTZ | |
| Pan Range | Pan: 0° to 360° endless |
| Pan Speed | Pan: 0.1° to 200°/s, preset speed: 250°/s |
| Tilt Range | Tilt: -10° to 90° |
| Tilt Speed | Tilt: 0.5° to 100°/s, preset speed: 120°/s |
| Preset Speed | Maximum: 200°/s |
| Network | |
| Video Compression | H.264 and H.265 encoding, M-JPEG |
| Smart Codec | Support |
| Camera Protocols | ONVIF、GB28181 |
| Bit Rate Control | H.265-CBR/VBR |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Protocols | TCP/IP、HTTP、DHCP、DNS、DDNS、RTSP、PPPoE、SMTP、NTP、UPnP |
| Maximum Frame Rate | 50/60fps: 1920x 1080（WDR） |
| Multiple Video Streams | Three code streaming media |
| Security | SSL encryption, Multi-user permissions, IEEE 802.1x IP filtering, HTTPS |
| Remote Client Access | NVR connection, Network |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, up to 256 GB |
| Event | |
| Basic Event | Motion detection, Alarm input, Tampering, Tripping area |
| Linkage | Remote software, Email (with images) |
| Audio Input/Output | 1 (Line-In; Bare wire) |
| Alarm Input/Output | Support |
| General | |
| Power Supply | AC 24V: 36W |
| Power Consumption | AC 24V, 0.6A, 8W, AC 24V, 3A, 45W, POE, 50-57V, 20.3W POE, 50-57V, 60.6W |
| Anti-collision Protection | IK10 |
| Ingress Protection | IP66 |
| Working Temperature | -45°C~+60°C (-49°F~ +140°F) |
| Storage Conditions | 0% ~ 90% |
| Certification | FCC、CE |
| Size | Ø236.5mm x 252mm |
| Weight | 8kg (17.637 lbs) |

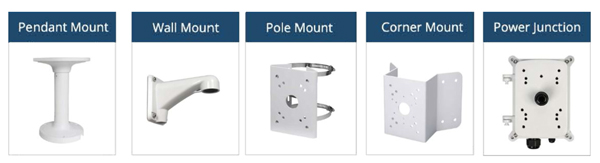

| Accessories (optional) |  |
Q: In which environments does this thermal camera perform best?
A: The ZN-TPS3025W2D-ES thermal camera is ideal for applications such as forest fire prevention in Europe, port security in North America, oil & gas pipeline monitoring in the Middle East, and wildlife protection in Africa.
Q: Why is it considered one of the best thermal imaging cameras?
A: As one of the best thermal imaging cameras, it operates reliably in extreme cold environments like Finland and Norway (–45°C), while also providing 24/7 monitoring of ports and sea lanes in coastal countries such as Spain and Portugal. Its high sensitivity and stable performance make it a top choice for demanding projects.
Q: How does this thermal security camera enhance protection in different regions?
A: This thermal security camera features intelligent fire detection, temperature alarms, and AI-based video analytics, making it suitable for:
United States & Canada: border and forest protection
Middle East: energy and oilfield perimeter security
Asia (Singapore, Malaysia): port and industrial zone monitoring
Q: Can this product be used as a long range security camera?
A: Yes. Equipped with 25–75 mm thermal lenses, the ZN-TPS3025W2D-ES enables monitoring over several kilometers, making it an excellent long range security camera. Typical use cases include:
Nordic forests: early fire detection
Middle East deserts: long-distance perimeter protection
Eastern Europe: border and transportation security
Q: How does this thermal camera support compliance and deployment in global projects?
A:The ZN-TPS3025W2D-ES thermal camera meets IP66 and IK10 protection ratings and complies with CE standards in Europe and FCC standards in North America. It is widely used in EU forest fire prevention projects and Middle Eastern oil & gas pipeline monitoring. This makes it not only a reliable thermal security camera, but also a globally deployable long range security camera solution.
