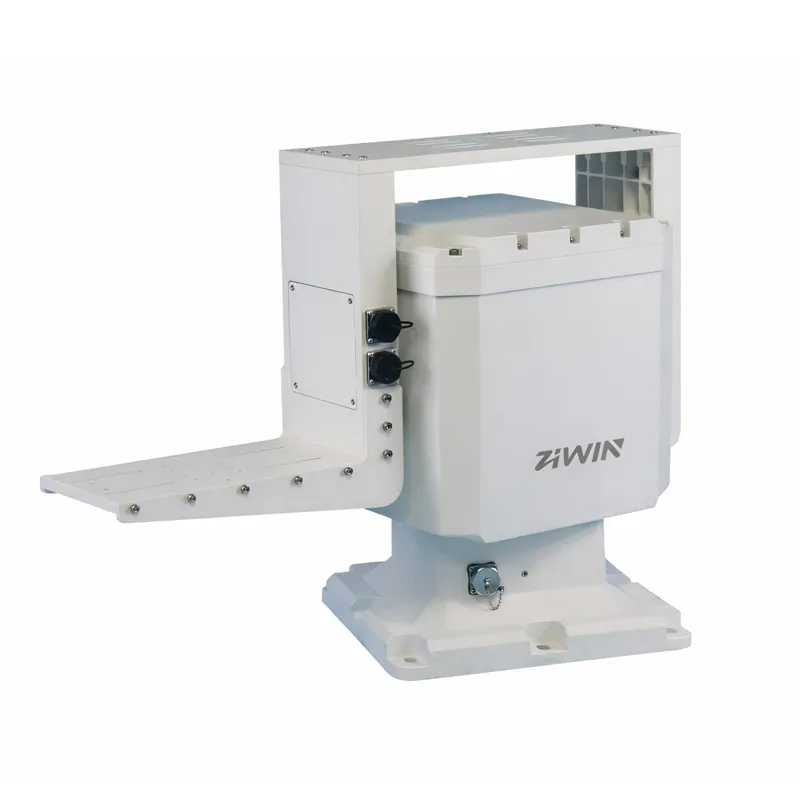

Features of ZN-HAPT50S 100kg(220.46lb) Payload High-Precision Pan-Tilt Unit with 0.003° Positioning Accuracy
High-Precision Pan-Tilt Unit, indoor/outdoor use
High-Precision Closed-Loop Servo Motor Harmonic Drive
Max.Load Capacity: 100kg(Side Load)
High-Strength Aluminum Alloy Construction
Pan Speed: ≤100°/S (Max )
Tilt Speed: ≤80°/S (Max )
Positioning Accuracy: Horizontal ±0.003°; Vertical ±0.003°
Support Position Feedback and Absolute Position
RS422/RS485/RJ45 Pan Control with Pelco P/D Protocol
Protection Grade: IP67 Waterproof

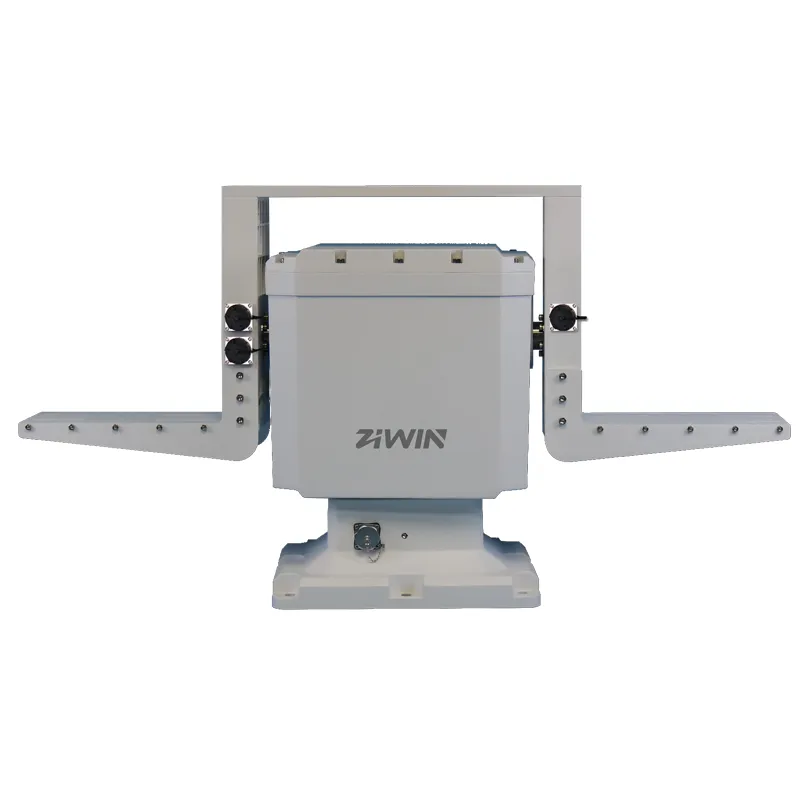

| Model | ZN-HAPT50S |
| Max. Load Capacity | Dual-Side Load (50% Payload on Each Side): 100kg(220.46lb) |
| Load Type | Side load |
| Transmission Mode | High-Precision Closed-Loop Servo Motor with Harmonic Drive and Integrated Magnetic Encoder |
| Max Pan Speed | ≤100°/S |
| Max Tilt Speed | ≤80°/S |
| Pan Range | 360° continuous |
| Tilt Rang | -90° ~90° |
| Presets | 255 |
| Positioning Accuracy | Horizontal ±0.003°; Vertical ±0.003° |
| Cruise Scan | Support |
| Position Passback | Query Response or Real-time Response Transmission |
| Protocol | Pelco D |
| Baud Rate | 9600bps (optional 2400/4800/115200 bps) |
| Interface | |
| Communication Interface | RS422 (optional RS485/Network Interface) |

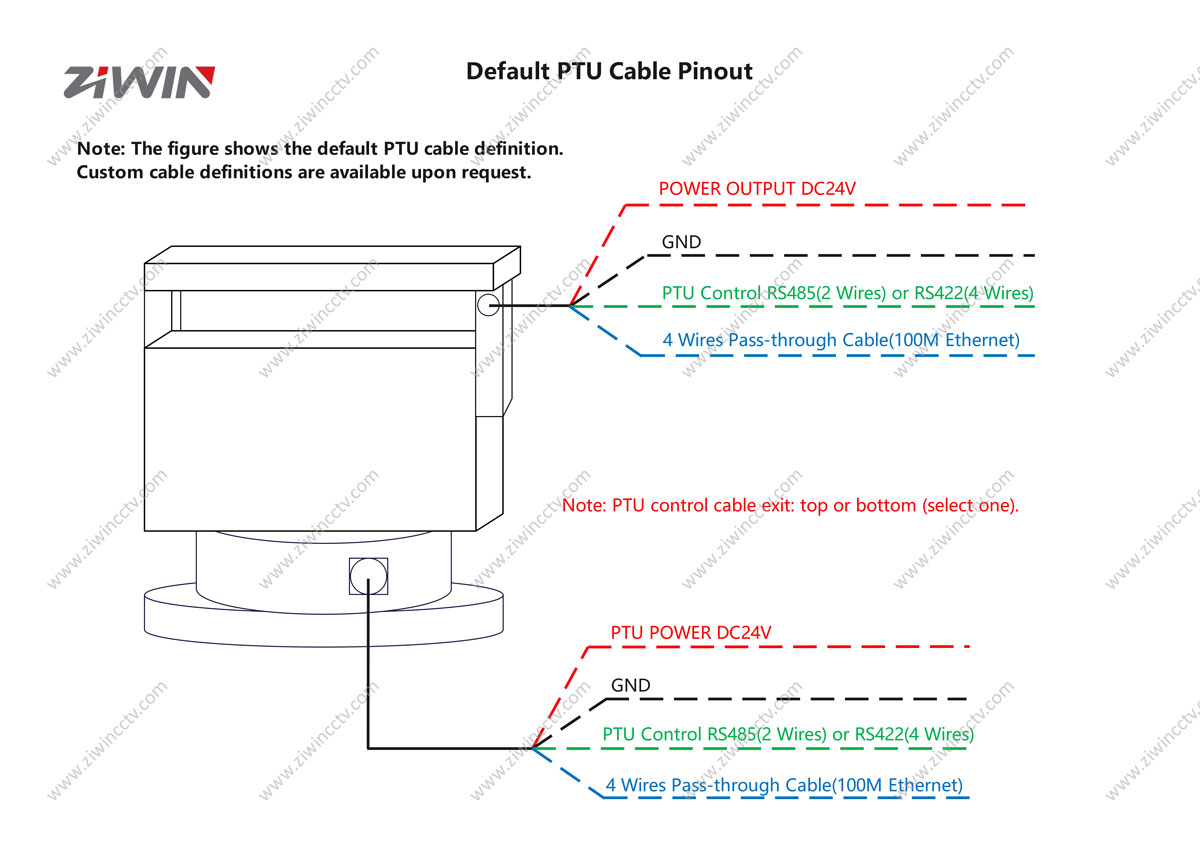

| Side Cable Outlet | 2× RS485 Pass-Through (Each 2-Core), 2× 10/100M Ethernet Pass-Through (Each 4-core), 2× DC24V power output cable (Each 4A) |
| Bottom Cable Outlet | 1× RS485 Pass-Through (2-core), 1× 10/100M Ethernet Pass-Through (4-core), 1× DC48V power input cable |
| General | |
| Power Supply | DC48V±25% |
| Power Consumption | ≤180W(Heater On) |
| Grade Protection | IP67 |
| Working Temperature | -40℃~+70℃ |
| Working Humidity | 90% RH, non-condensing |

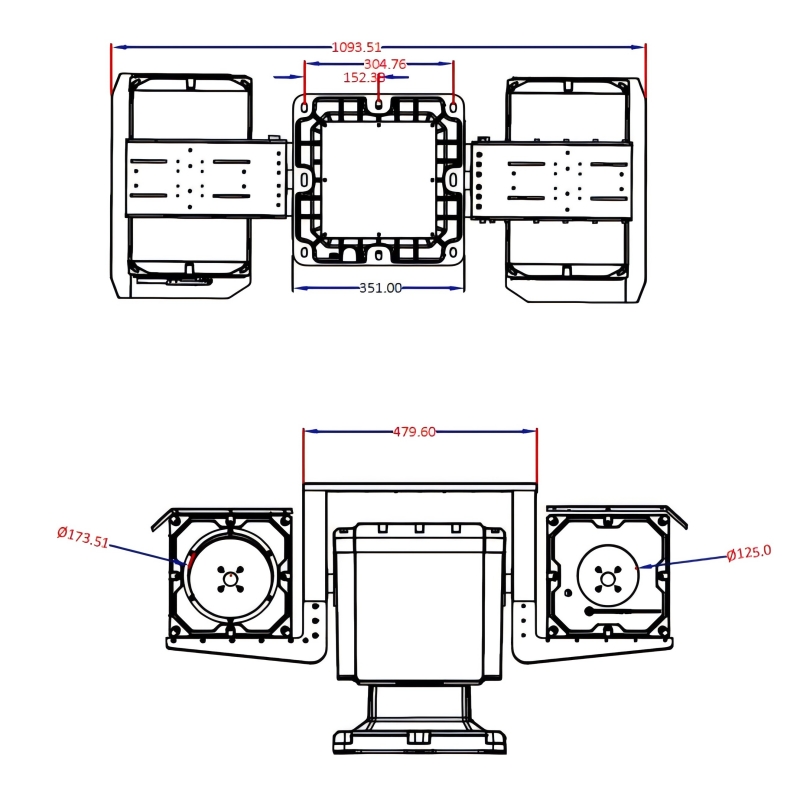

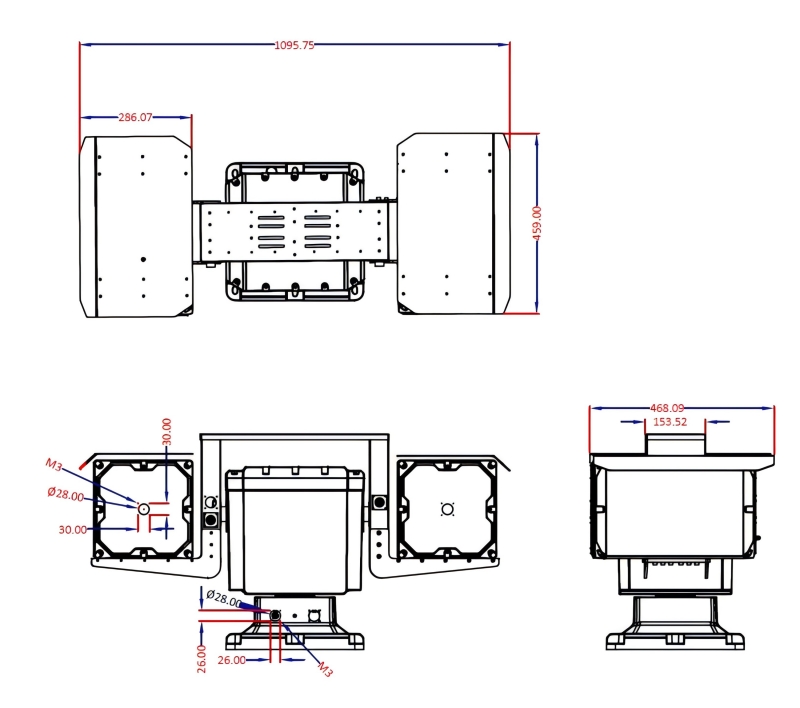

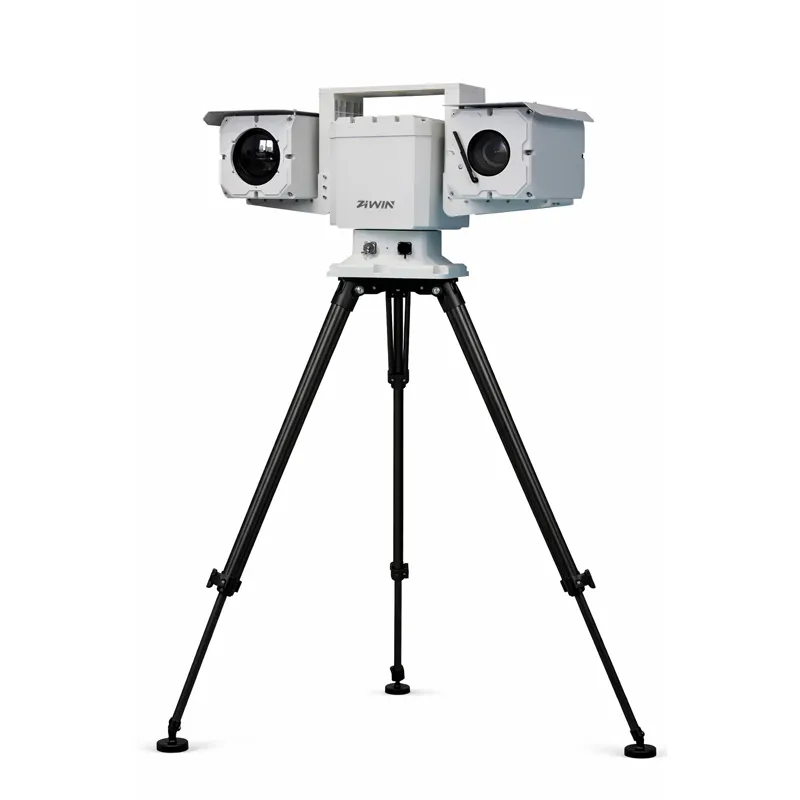

| Size(Side Load) | 1034×303×561mm（L×W×H） |
| Weight | ≤45 kg (without enclosures);≤70 kg (with dual-side enclosures) |
| Installation Method | Fixed installation, Vehicle-mounted, Hoisting |
| Other | Customizable Based on the Standard Model |

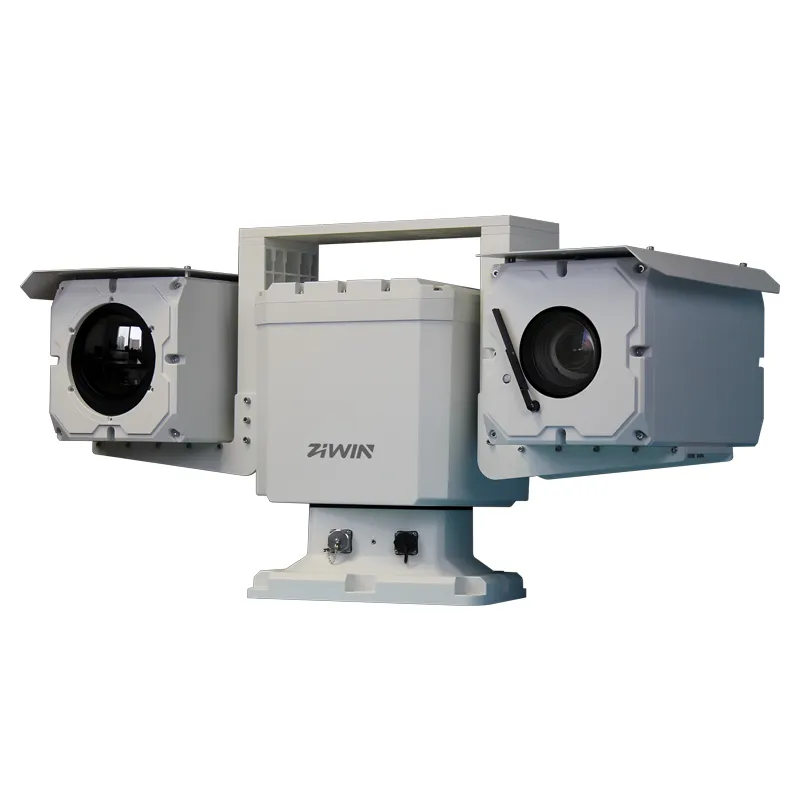

The unit supports up to 100 kg dual-side load (50 kg on each side), making it ideal for heavy-duty applications such as radar systems, long-range cameras, and multi-sensor payloads.
It delivers ultra-high precision positioning with ±0.003° accuracy on both pan and tilt axes, ensuring stable tracking performance for demanding surveillance and tracking systems.
Yes, the system supports pan speeds up to 100°/s and tilt speeds up to 80°/s, enabling fast target acquisition and smooth tracking of moving objects.
The unit supports RS422 (standard) with optional RS485 and Ethernet interfaces, and is compatible with the Pelco D protocol, allowing seamless integration into existing control systems.
Absolutely. It features IP67 protection, operates in temperatures from -40°C to +70°C, and supports high humidity conditions, making it reliable for outdoor and industrial environments.
