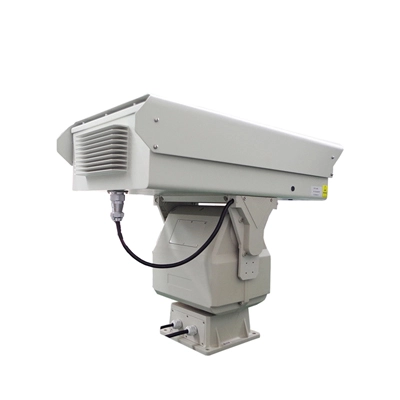

4km Long Range Laser Night Vision Network PTZ Camera

ZN-RC2075-ES

Long range 4km day/2km night for 24 hour surveillance
15W high-power laser with long-range illumination
0.5°～20° DSS digital stepper servo-driven variable-angle laser illuminator
808nm military-grade NIR laser
GHT-II ultra-homogenized high-definition illumination technology with 0.01° SLM optical axis self-locking alignment
Startlight 1080P HD network camera, 0.005lux color ,001lux B/W
30~750mm lens, motorized zoom ,auto focus
360° continuous pan rotation, -45°~+40° tilt
Pan: 0.01°/s-30°/s , tilt: 0.01°/s-15°/s rotation speed, supports adaptive focal length speed
High-strength aluminum alloy construction ,protection grade IP66

Model	ZN-RC2075-ES
Detection Range	Day: 4000m, Night: 2000m
CAMERA PARAMETER
Image Sensor	1/1.8" progressive scan CMOS
Max. Resolution	1920 (H)×1080 (V), 2MP
Min. Illumination	Color: 0.005 Lux; B/W: 0.001Lux
Focal Length	30～750mm, 25X optical zoom
Focus Mode	Auto/Manual
Aperture	Auto Iris
IRCUT	0.4-0.75um visible spectrum and 0.8-0.95um NIR spectrum independent dual light windows for day and night
Image Function	Exposure, White balance, BLC,WDR,HLC,2D/3D DNR, EIS ,Heat wave drift suppression
Mirror image/Pivot	Horizontal and Vertical
Video Compression	H.264/MPEG4/MIPEG video format, support dual video streams
Bit Rate Control	32Kbps~16Mbps, 60Hz30 frame/s
Audio Coding	G.711A/ G.711U/G726
LASER ILLUMINATOR
Laser Power	15W, 808nm Military NIR
Laser Angle	0.5°～20°
Homogenization	GHT-II ultra-homogenized high-definition illumination technology with 0.01° SLM optical axis self-locking alignment
Laser Safety	ZQB safe laser beam processing patented technology,in compliance with international IEC60825 safety standards
Synchronous Control	DSS digital lighting angle control, with an accuracy of 0.1°
Optical Axis Alignment	SLM dual optical axis electric self-locking alignment device, accuracy up to 0.01°
Control Mode	Independent photosensitive control circuit, precise synchronous switch laser and day/night
PT PARAMETER
Pan Range	Pan: 0° to 360° endless
Pan Speed	Pan: 0.01° to 30°/s
Tilt Range	Tilt: -45° to 40°
Tilt Speed	Tilt: 0.01° to 15°/s
Material	Split design, the whole is made of high-strength aluminum alloy
Surface Treatment	PTA three-resistance coating, anti corrosion(optional)
Wiper	Mechanical wiper(optional)
Defrost	Support window defrosting
Location information	Support coordinate query/feedback and absolute control
Advanced movement	200 preset positions, cruising track, pattern tour and auto scan
Network
Video Compression	H.264 and H.265 encoding, M-JPEG
Bit Rate Control	H.265-CBR/VBR
ONVIF Protocol	Support
Protocols	HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
External Interface	Military aviation water-proof connector
General
Power Supply	DC24V
Power Consumption	≤180W
Salt Spray Proof	PH 6.5-7.2, spray continuously for 96 hours, no surface changes
Surge protection	Built-in surge protection for the interface circuit, 6000V surge protection
Ingress Protection	IP66
Working Temperature	-40°C~+60°C (-40°F~ +140°F)
Working Humidity	≤95%RH
Protection Level	IP66
Weight	45kg (99.208 lbs)

View More View Less

Faq

Faq

What is the detection range of this camera?

The detection range is 4km during the day and 2km at night.

What network protocols does it support?

It supports protocols like HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP.

What are the power supply and consumption details?

The power supply is DC24V, and the power consumption is ≤180W.

What kind of laser does it use?

It uses a 15W, 808nm military-grade NIR laser.

How does the laser illuminator's angle adjust?

The laser angle can be adjusted from 0.5° to 20°, with DSS digital stepper illumination angle control and an accuracy of 0.1°.

What is the camera's resolution and sensitivity?

The camera has a 2MP resolution, with a minimum illumination of 0.005 Lux in color mode and 0.001 Lux in B/W mode.

What is the lens focal length and zoom capability?

The lens has a focal length of 30～750mm, with 25X optical zoom.

How does the PTZ function work?

The pan range is 0° to 360° endless, tilt range is -45° to +40°. Pan speed is 0.01° to 30°/s, tilt speed is 0.01° to 15°/s.

What is the housing material and protection level?

The housing is made of high-strength aluminum alloy, with a protection grade of IP66.

How is the laser safety ensured?

It uses ZQB safe laser beam processing patented technology and complies with international IEC60825 safety standards.
