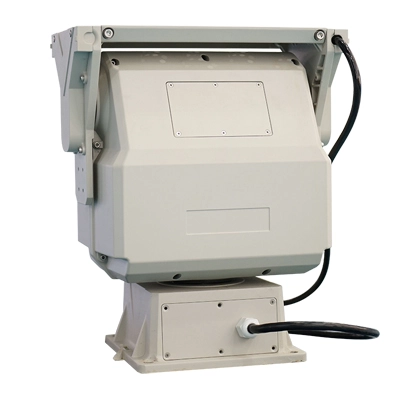

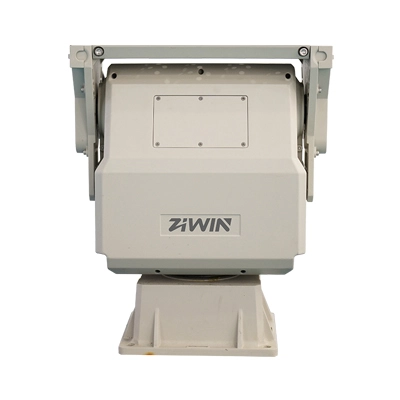

Heavy Duty Pan Tilt Head with Load Capacity 50kg (110.23lb)

ZN-SPH50U
  • Heavy duty pan tilt unit, indoor/outdoor use

  • High precision stepper motor, worm and gear drive transmission

  • Load capacity up to 50kg/110.23lb

  • High-strength aluminum alloy construction

  • Self-lock with memory after power failure, strong wind-resistance

  • Variable speed,pan: 0.01~30°/s;tilt:0.01~15°/s

  • 360° continuous pan rotation, +45°~-45° tilt

  • Preset accuracy:±0.1°

  • Support position feedback and absolute position

  • RS485/RS422 pan tilt control with Pelco P/D protocol

  • Protection grade IP66

Specification


ModelZN-SPH50U
Max. Load Capacity50kg/110.23lb
Load TypeTop load
Transmission ModeWorm gear transmission
Pan Range0°~360°, Tilt: -45°~+45°
Tilt Range+45°~-45°(load capacity 50kg) Default
-60°~+60°(load capacity 40kg)
Pan Speed0.01°~30°
Tilt Speed0.01°~15°
Presets200
Preset Accuracy±0.1°
PT Speed AdaptationSupport
Cruising Track8
Auto Scan8
Guard LocationSupport with 1 preset or 1 cruising track or 1 auto scan
Lens PresetSupport
Lens ControlContinuously adjustable zoom, focus speed
Power-Off MemorySupport, recover to PT position, scan/preset/cruising track movement before power failure
ProtocolPelco D/P
Baud Rate2400/4800/9600/19200 bps
Communication InterfaceRS485 (Optional RS422) or RJ45
Coordinate FeedbackSupport angle query feedback/real-time feedback
Interface
Standard10/100M Ethernet with RJ45 (4 wire, pass-through), AC 24V/DC 24V (2 wire), GND
OpentionRS485/RS422
General
Power SupplyAC24V±25% ,50/60Hz;DC24V±10%;
Power Consumption≤100W
Lighting Surge ProtectionPower: 4000V (line to ground: 4000V, line to line: 2000V)
Communication signal interface: 2000V (line to ground: 2000V, line to line: 1000V)
Working Temperature-35°C~+65°C (-31°F~ +149°F)
Working Humidity<90%RH
Protection LevelIP66
MaterialAluminium Alloy

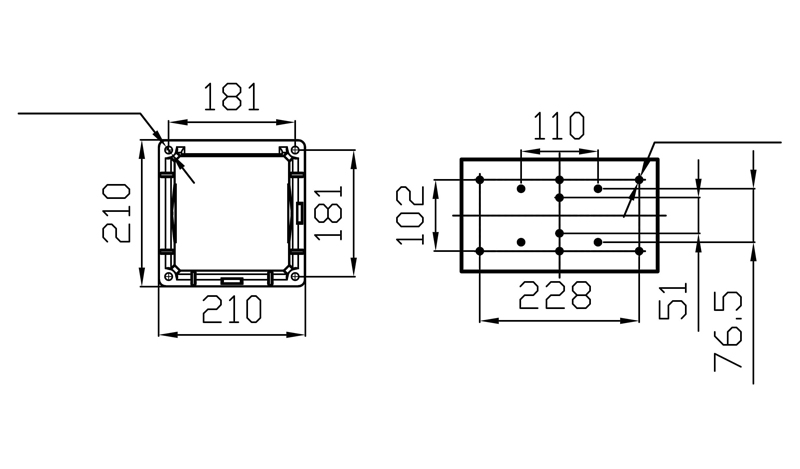

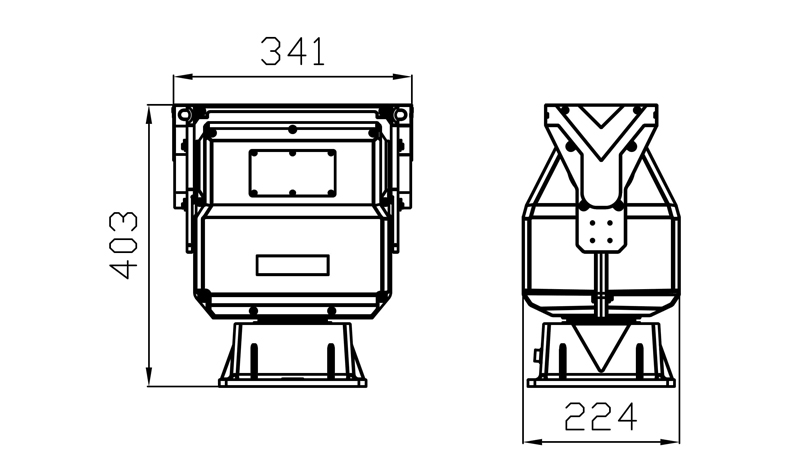

Size224×341×403mm(L×W×H)
Weight30kg (66.139lb)

ZN-PT850U Heavy Duty Pan Tilt Head with Load Capacity 50kg (110.23lb)


ZN-PT850U Heavy Duty Pan Tilt Head with Load Capacity 50kg (110.23lb)
